| Material: | Brass |
|---|---|
| Size: | M,G,NPT |
| Protection Level: | IP66 |
| Brand Name: | Sanhui |
| Color: | Silivery |
| Model Number: | SHBDM-14 |
| Place of Origin: | China (Mainland) |
| Materials: | Brass,nickel planted/brass/Stainless steel |
| Seal: | NBR |
| Application: | Unarmored cable |
| Type: | Double sealed |
| Ex-mark: | Exd IIC Gb/Exe II Gb/Ex tD A21 IP66 |
| Thread: | Metric,G,npt |
| Accessories: | Lock nut/earth tag/PVC shroud |
| Customization: | Accept |
Quick Details
Specifications
Product Features
Outline dimension
Note: NPT thread can also be provided.
Factory
- Brass or stainless steel,brass surface nickel planted
- with characteristics of quick installation,safety,reliability, good protection and so on.
- It is suitable for clamping and fixing various types of cable
- Protection grade:IP66
- Ambient temperature: Static from -40C to 100C,short up to 120, Dynamic from -20C to 80C,short up to 100C.

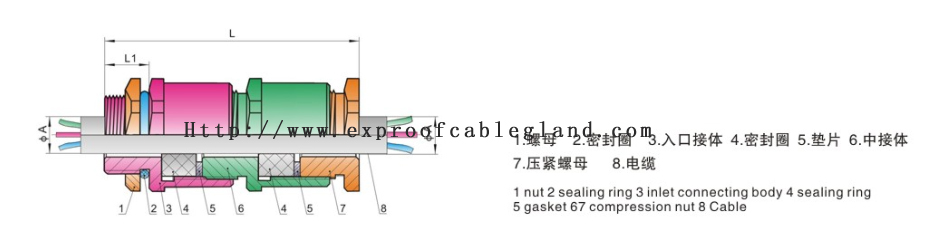

Outline dimension
M |
G |
Cable range(mm) | L1 Thread length (mm) | Length(mm) |
| M16*1.5 | G1/2S | 8-12 | 16 | 81 |
| M20*1.5 | G3/4S | 8-12 | 16 | 81 |
| M25*1.5 | G3/4 | 10-16 | 16 | 87 |
| M32*1.5S | G1S | 1-20 | 17 | 90 |
| M32*1.5 | G1 | 13-20 | 18 | 92 |
| M40*1.5 | G1 1/4 | 16-25 | 18 | 102 |
| M50*1.5 | G1 1/2 | 20-32 | 20 | 107 |
| M63*1.5 | G2 | 26-40 | 20 | 108 |
| M75*1.5 | G2 1/2 | 32-45 | 20 | 112 |
| M85*1.5 | G3S | 32-60 | 20 | 114 |
| M90*1.5 | G3 | 32-60 | 20 | 126 |
| M100*1.5 | G4S | 50-78 | 20 | 126 |
| M110*1.5 | G4 | 50-78 | 20 | 128 |
Note: NPT thread can also be provided.
