| Type: | Centrifugal Fan |
|---|---|
| Certification: | CE |
| Speed: | 2200rpm to 2500 rpm |
| Air Volume: | 723.2 m3/h to 821.8 m3/h |
| Brand Name: | FB-M&F |
| Type: | Centrifugal fan |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Voltage: | 12v/24v/48v |
| Power: | 38w to 58w |
| Model Number: | FB22063 |
| Place of Origin: | China (Mainland) |
| Mounting: | Free Standing |
| Blade Material: | Plastic |
Quick Details
Specifications

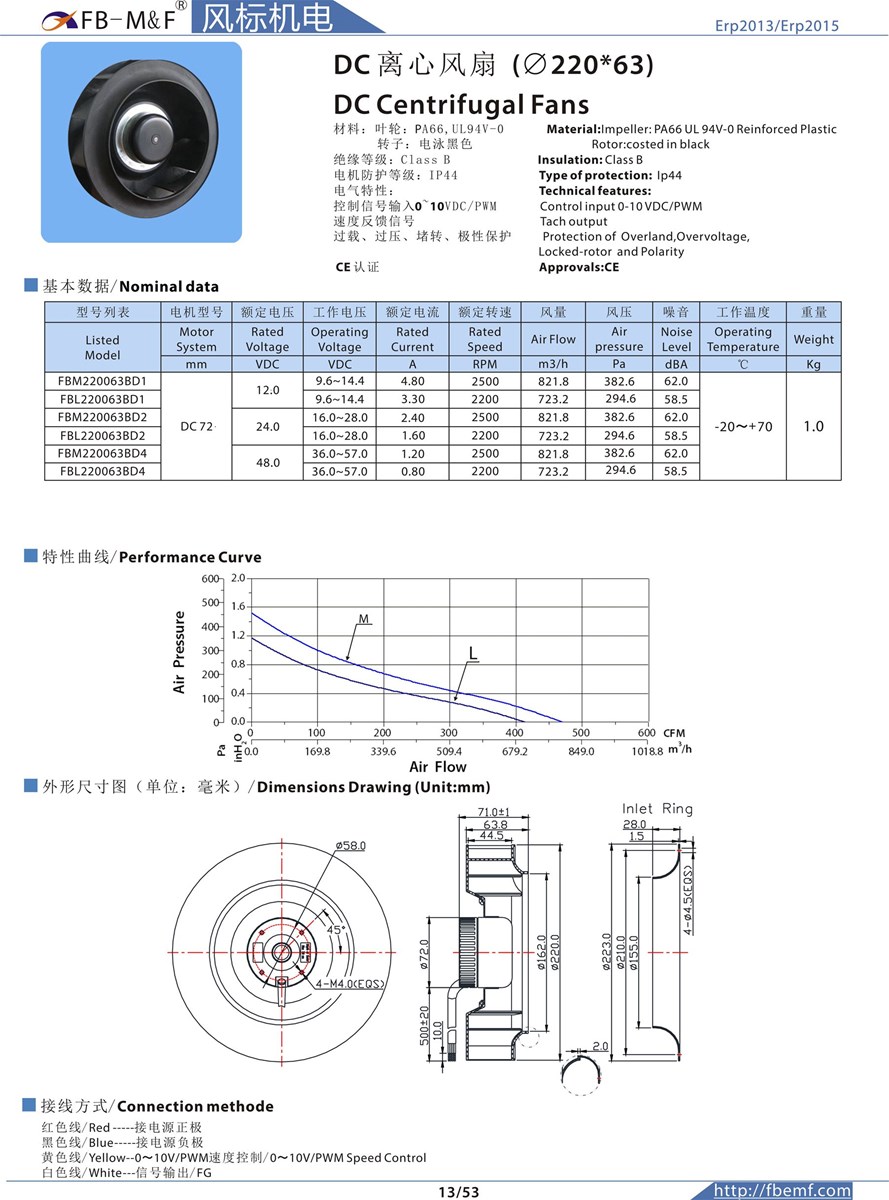

DC22063 Backward Curved Centrifugal Fan for industrial Ventilation Engine Cooling and radiator equipment is from Fengbiao electric Co., Ltd.
Small order is wellcome too. Just tell us what you want! We supply all kinds of fans. It's Manufacturer facing you directly!
Basic data as below, more information please contact us!
General data:
1.Matieral: Impeller: Sheet steel, Galvanised; Rotor: Coated in black; Bearing Type:NMB; Insulation: Class B
2.Type of protection:IP44/IP55/IP68 customized
3. Life Expectance:60,000 hours continuous operating at 40C
4. Rotation:Clockwise, seen on rotor
5. Lead Wire:UL2464, AWG20#, L=500mm
6. Fans Feature:AutoRestart,Tach Output,0~10VDC/PWM Speed Control
7. Motor Type:Three-Phase Machine,Sinewave Circuit
8. Protection Function:Loss Phase,Locked Motor,Soft-start Function, over current,over voltage and Polarity
Some cases show:
DC22063 Backward Curved Centrifugal Fan for industrial Ventilation Engine Cooling and radiator equipment is from Fengbiao electric Co., Ltd.
We offer samples with costs, shipping and taxes paid by buyer.Custom orders are welcome! Just tell us what you want!
the unit price listed in this platform is subject to our final confirmation before you place order! Thanks!
Small order is wellcome too. Just tell us what you want! We supply all kinds of fans. It's Manufacturer facing you directly!
We own our registered Brand, FB-M&F. Main products are all kinds of DC Brushless Fans, including Centrifugal Fans, Duct Blowers, Axial Fans, other Industrial Ventilation Fans And relevant Parts, widely and successfully used in fields including radiator Equipment, air purifier, new air system, building's ventilation system, Dryer,the heater-fan for boilers, humidifier,street sweeper, electric sweeping Machine,LCD AD player, fan filter unit,rail transit train, radiating system of Car, brake pump of car and so on.The factory offers OEM service, design service And buyer Label as well.
Basic data as below, more information please contact us!
General data:
1.Matieral: Impeller: Sheet steel, Galvanised; Rotor: Coated in black; Bearing Type:NMB; Insulation: Class B
2.Type of protection:IP44/IP55/IP68 customized
3. Life Expectance:60,000 hours continuous operating at 40C
4. Rotation:Clockwise, seen on rotor
5. Lead Wire:UL2464, AWG20#, L=500mm
6. Fans Feature:AutoRestart,Tach Output,0~10VDC/PWM Speed Control
7. Motor Type:Three-Phase Machine,Sinewave Circuit
8. Protection Function:Loss Phase,Locked Motor,Soft-start Function, over current,over voltage and Polarity
Some cases show:
DC22063 Backward Curved Centrifugal Fan for industrial Ventilation Engine Cooling and radiator equipment is from Fengbiao electric Co., Ltd.
We offer samples with costs, shipping and taxes paid by buyer.Custom orders are welcome! Just tell us what you want!
the unit price listed in this platform is subject to our final confirmation before you place order! Thanks!
