Modular Welding Table

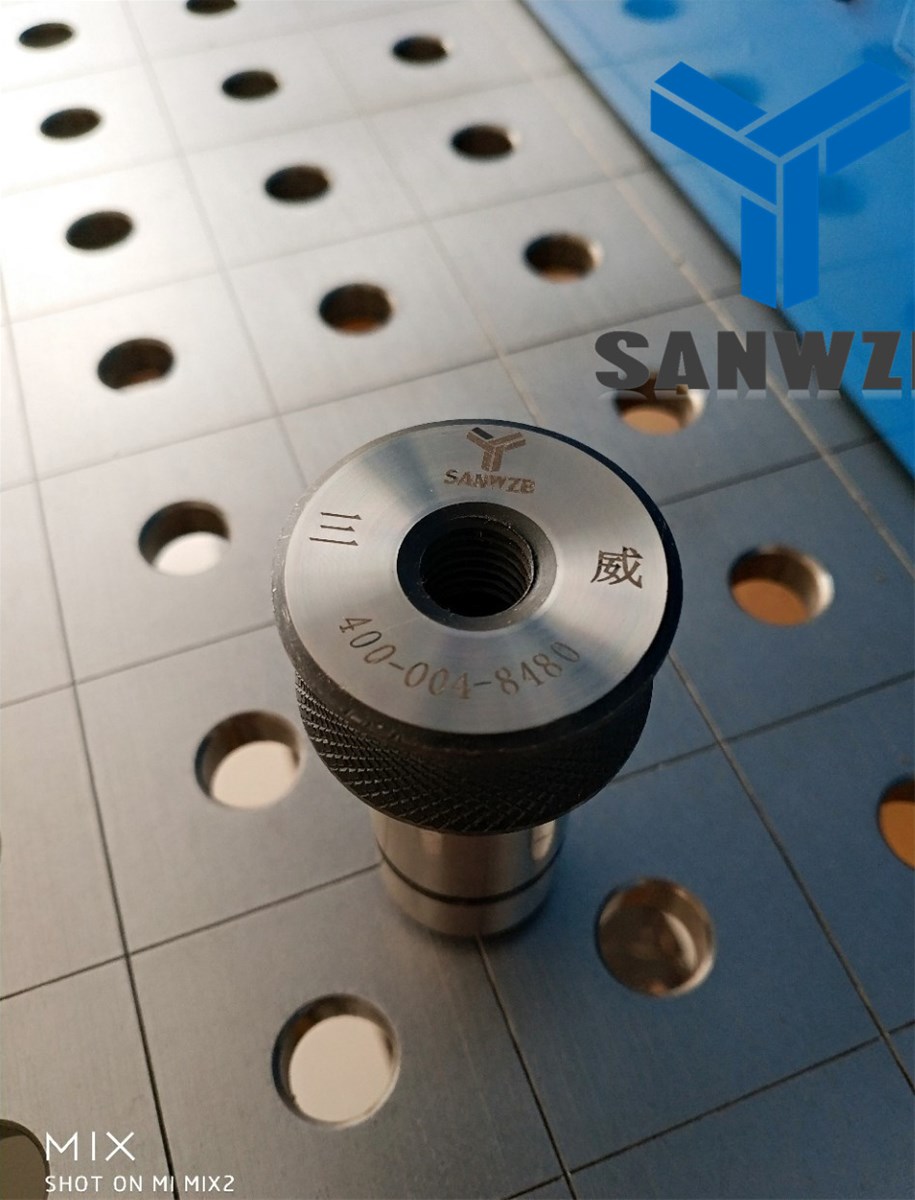

this is a set of modular Clamping system, consisting of basic tables, supporting parts, locating parts, Clamping parts and locking parts. On 3D welding table, any system accessories Can be located and clamped in a variety of ways by "rapid locking Bolt"; at the same time, several 3D welding tables can be directly linked Together in any five faces, and can also be linked as a whole through laying Tracks on the ground. The whole modular system demonstrates its general Function perfectly in installing, adjusting and clamping. Because of its simple Structure and such advantages as hole location, bolt connection, high Precision, good rigidity, reusability, convenient assembly and large economic Benefits, it is known as " building block in the workshop".

Tech Parameter:

L Material: Q345B(Steel), HT300(Cast Iron), QT500(Nodular Cast Iron), SUS304(Stainless Steel)

L  Optional Legs: Standard leg/ Holding frame/ Hydraulic lift box/ Heavy duty caster

L without defective holes, cracks, repair welding and other defects after proceeding.

L Hole diameter:28mm/16mm

L Thickness: D2825mm; D1615mm

L Flatness: 0.10/1000mm~ 0.15/1000mm

L Surface Finishment: 1.6m ~3.2m

L Grid Pattern: 100x1000.05mm; 50x500.05mm

L Hole spacing: 1000.03mm; 500.03mm

L Load Capacity: Support leg: 2T/m²; Holding frame support: 3T/m².



(D28 )SANWEI 3D welding table
Steel (Q345)		Cast Iron(HT300)		Stainless Steel (SUS304)
1000x1000x200	Swk28-10101	1000x1000x200	Swk28-10201	1000x1000x200	Swk28-10201
1200x1200x200	Swk28-10102	1200x1200x200	Swk28-10202	1200x1200x200	Swk28-10202
1500x1000x200	Swk28-10103	1500x1000x200	Swk28-10203	1500x1000x200	Swk28-10203
1500x1500x200	Swk28-10104	1500x1500x200	Swk28-10204	1500x1500x200	Swk28-10204
2000x1000x200	Swk28-10105	2000x1000x200	Swk28-10205	2000x1000x200	Swk28-10205
2000x1500x200	Swk28-10106	2000x1500x200	Swk28-10206	2000x1500x200	Swk28-10206
2400x1200x200	Swk28-10107	2400x1200x200	Swk28-10207	2400x1200x200	Swk28-10207
3000x1500x200	Swk28-10108	3000x1500x200	Swk28-10208	3000x1500x200	Swk28-10208
4000x2000x200	Swk28-10109	4000x2000x200	Swk28-10209	4000x2000x200	Swk28-10209
3000x2000x200	Swk28-10112	3000x2000x200	Swk28-10212	3000x2000x200	Swk28-10212

Application:

U Rail Transit

U Auto-mobile, Vehicle manufacturing

U Ship Building

U Sheet Metal(Chassis, Cabinet) Working

U Aerospace

U Truss Arm Welding

U Steel Structure Production. ETC.
