| Brand Name: | YALAN |
|---|---|
| Material: | Metal |
| Style: | Mechanical Seal |
| Standard or Nonstandard: | Standard |
| Color: | Silver |
| Model Number: | 2100, AKA TJ or INT |
| Place of Origin: | China (Mainland) |
| Structure: | Single End |
| Pressure: | Medium Pressure Mechanical Seals |
| Speed: | General Speed Mechanical Seal |
| Temperature: | Temperature Mechanical Seal |
| Performance: | Wear |
| Standard: | Standard |
| Balance: | Balanced |
| Specification: | Inner Diameter: 12 mm to 100 mm |
Quick Details
Specifications
Basic Features
- Structure: Single End
- Pressure: Medium Pressure Mechanical Seals
- Speed: General Speed Mechanical Seal
- Temperature: Temperature Mechanical Seal
- Performance: Wear
- Standard: Standard
- Model NO.: 2100, AKA TJ or INT
- Balance: Balanced
- Specification: Inner Diameter: 12 mm to 100 mm

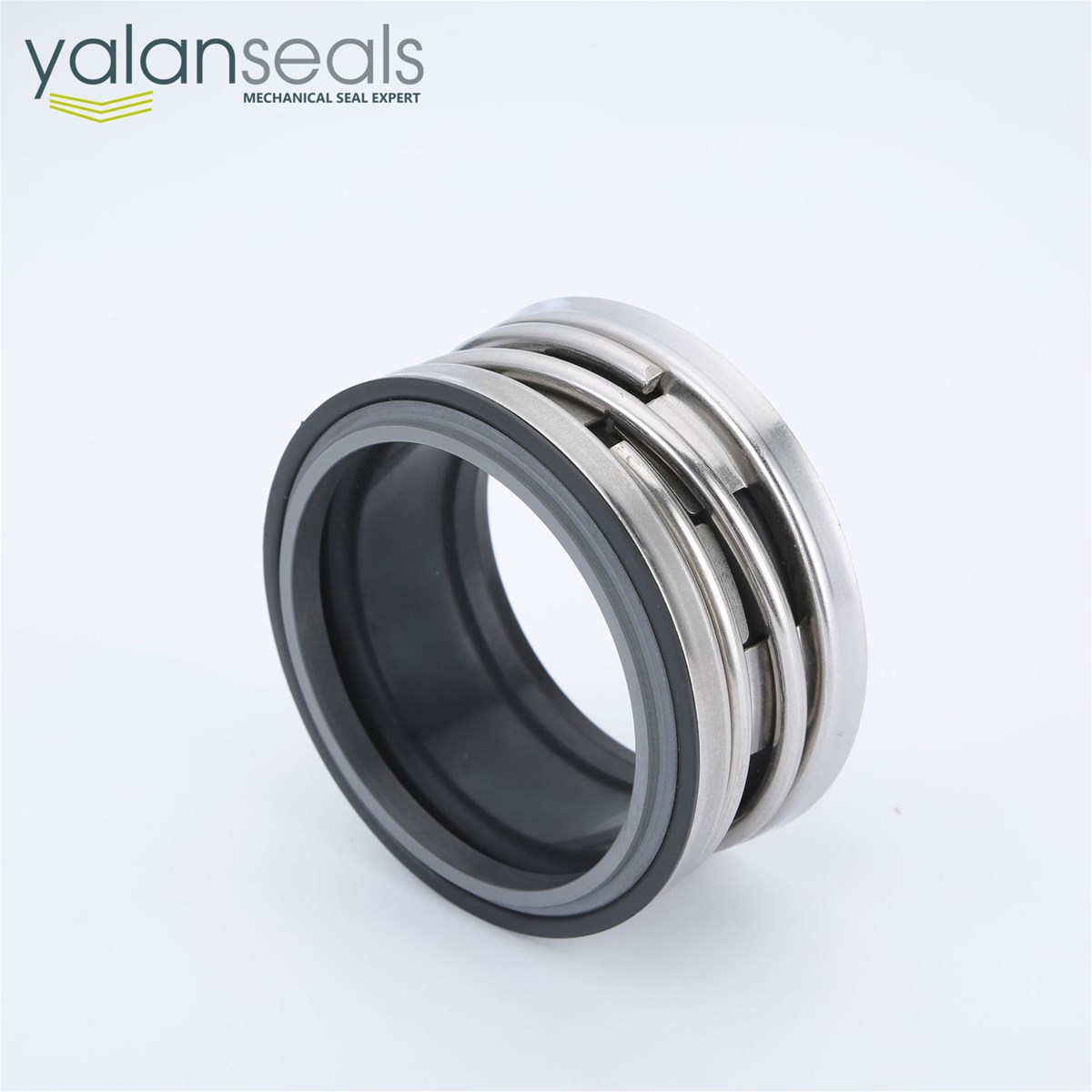

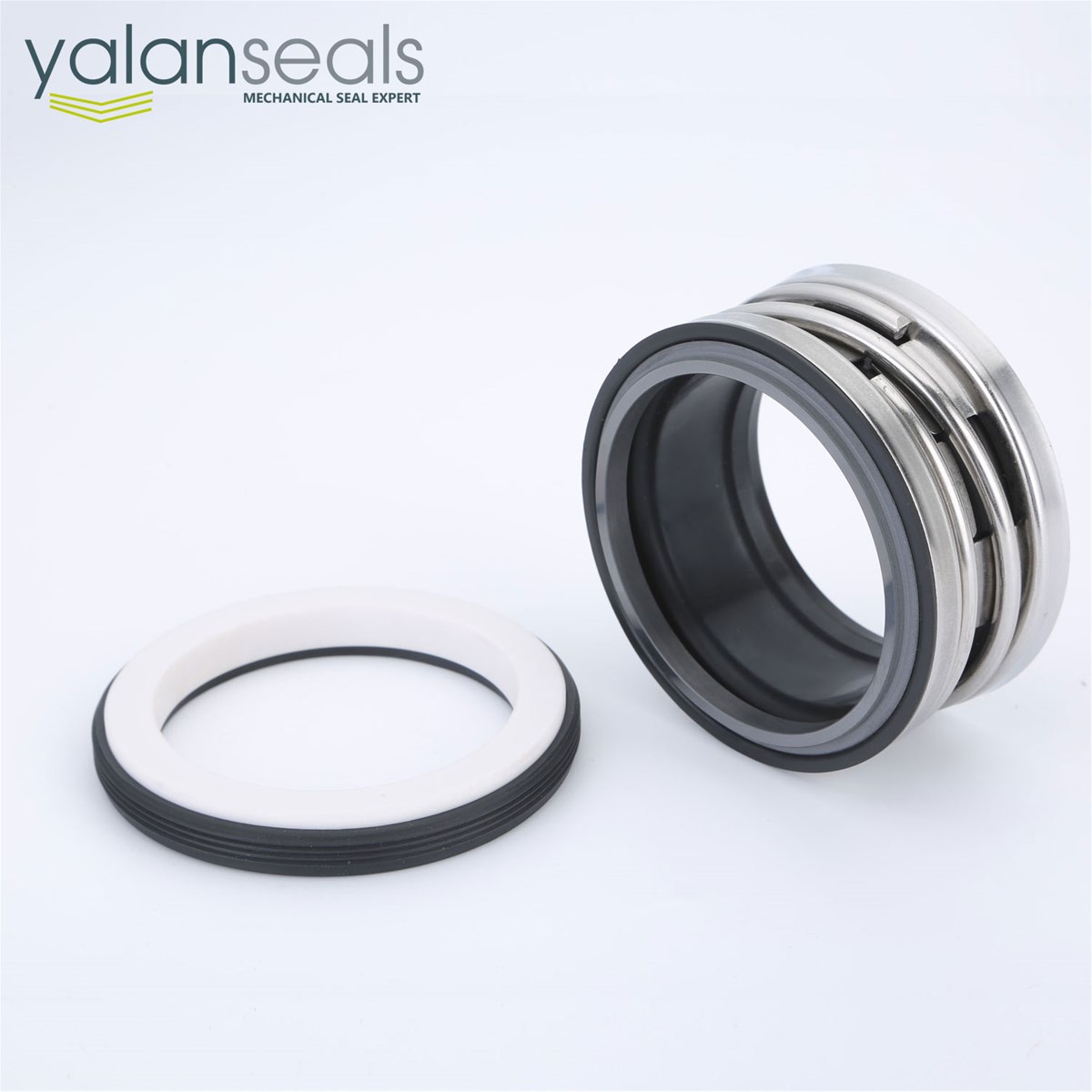

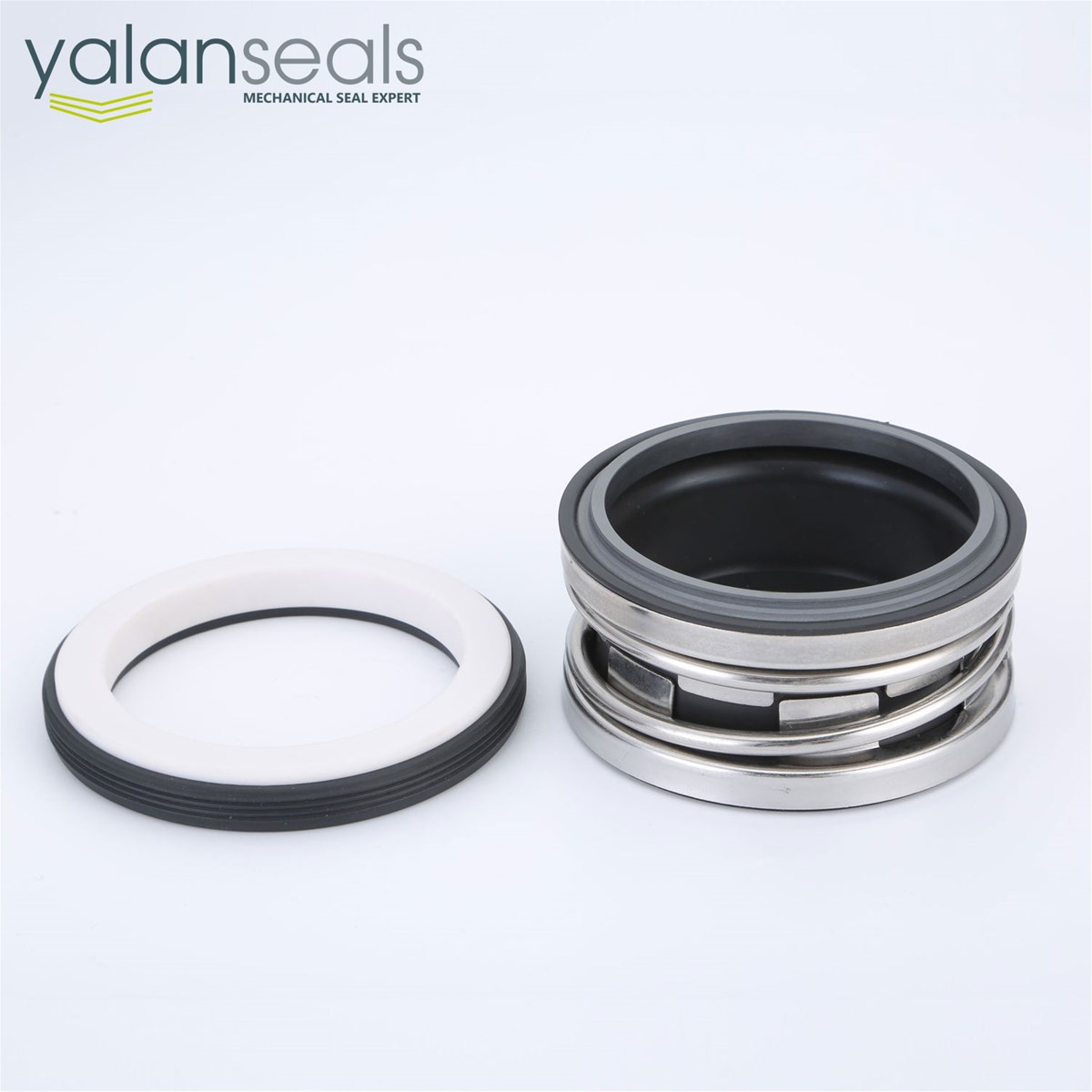

2100, AKA TJ or INT, Mechanical Seal for Centrifugal/Vacuum Pumps, Submerged Motors, Compressors, Agitation Equipment and Decelerators
Structural Features: single end, partially balanced, independent direction of rotation, rubber bellow, shift transmission. this component has a compact structure with good compatibility and easy installation. the bellow can provide support against the pressure to eliminate indentation and corrugation.
Industrial Standards: DIN24960, ISO3069, GB6556-94
Scopes of Application: mainly used in centrifugal pumps, vacuum pumps, submerged motors, compressor, agitation equipment and decelerators. this component can work as an alternative to the similar product of John Crane.
Operation Parameters:- Pressure: 1.2 MPa or less
- Temperature: - 10 ~ 120 C
- Linear Speed: 10 m/s or less
Mediums: clean water and sewage, mostly used in industries such as sewage treatment and papermaking.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
