| Brand Name: | YALAN |
|---|---|
| Material: | Metal |
| Style: | Mechanical Seal |
| Standard or Nonstandard: | Standard |
| Color: | Silver |
| Model Number: | MG12 |
| Place of Origin: | China (Mainland) |
| Structure: | Single End |
| Pressure: | Medium Pressure Mechanical Seals |
| Speed: | General Speed Mechanical Seal |
| Temperature: | Temperature Mechanical Seal |
| Performance: | Wear |
| Standard: | Standard |
| Balance: | Unbalanced |
| Specification: | Inner Diameter: 14 mm to 100 mm |
Quick Details
Specifications
Basic Features
- Structure: Single End
- Pressure: Medium Pressure Mechanical Seals
- Speed: General Speed Mechanical Seal
- Temperature: Temperature Mechanical Seal
- Performance: Wear
- Standard: Standard
- Model NO.: MG12
- Balance: Unbalanced
- Specification: Inner Diameter: 14 mm to 100 mm

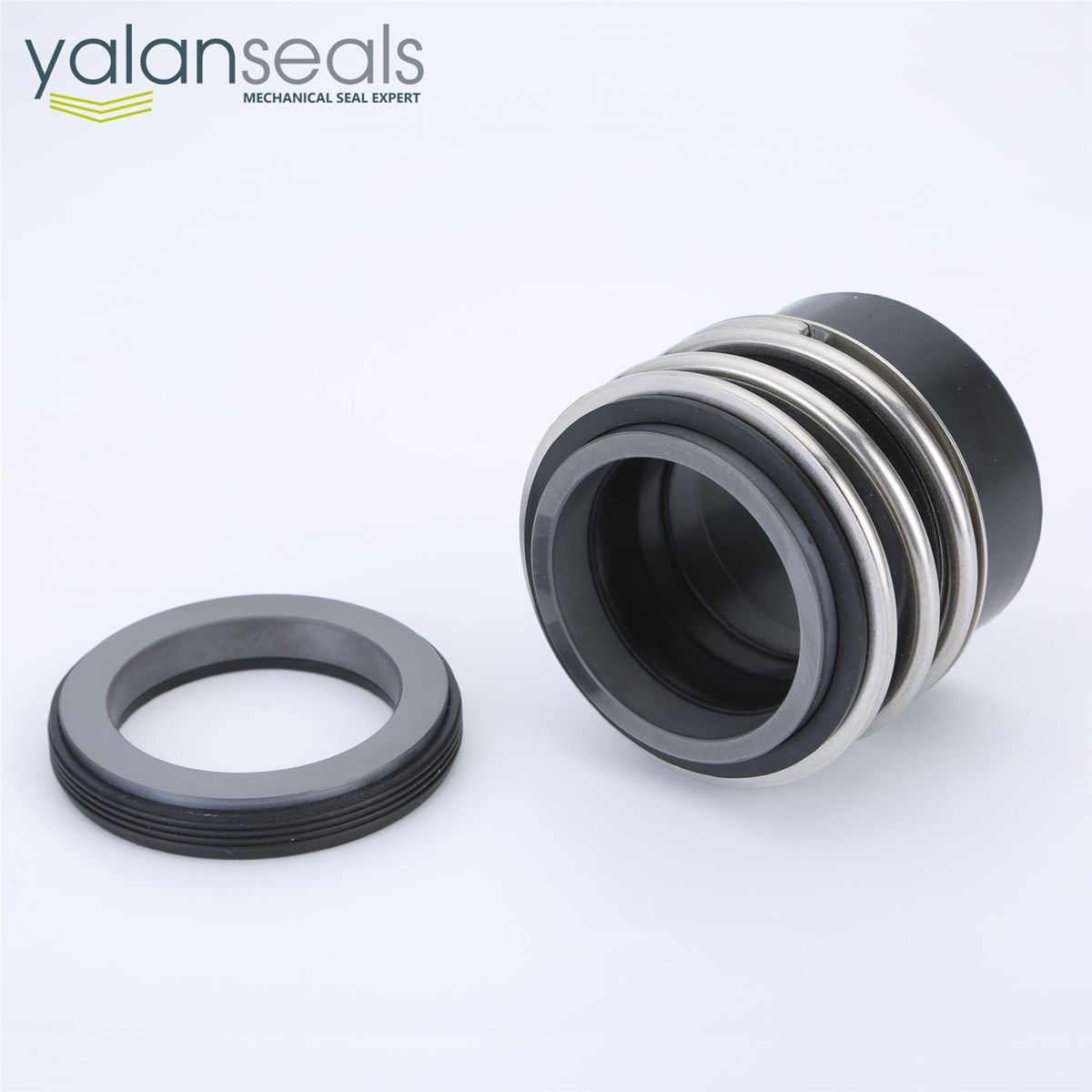

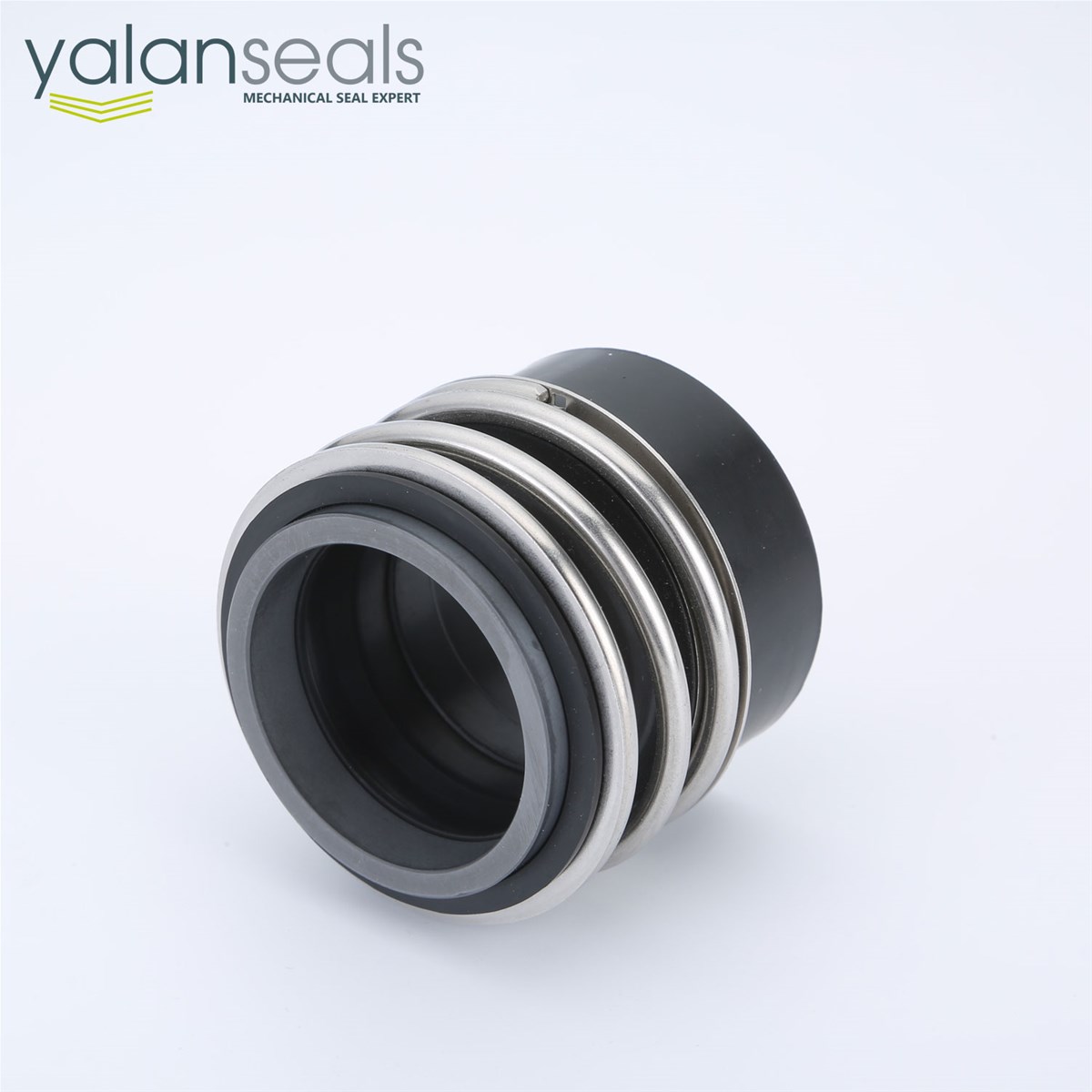

MG12 Mechanical Seal for Centrifugal Pumps, Submerged Motors, and Piping Pumps
Structural Features: single end, unbalanced, dependent direction of rotation, rubber bellow, spring transmission. this component has a compact structure with good compatibility and easy installation. the bellow can provide support against the pressure to eliminate indentation and corrugation.
Industrial Standards: DIN24960, ISO3069, GB6556-94
Scopes of Application: mainly used in centrifugal pumps, submerged motors, piping pumps and other rotating devices. this component can work as an alternative to the similar product of EagleBurgmann.
Operation Parameters:- Pressure: 1.0 MPa or less
- Temperature: - 10 ~ 120 C
- Linear Speed: 5 m/s or less
Mediums: clean water and sewage, mostly used in industries such as sewage treatment, food processing, and papermaking.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
