| Brand Name: | YALAN |
|---|---|
| Material: | Metal |
| Style: | Mechanical Seal |
| Standard or Nonstandard: | Standard |
| Color: | Silver |
| Model Number: | M37G |
| Place of Origin: | China (Mainland) |
| Structure: | Single End |
| Pressure: | Medium Pressure Mechanical Seals |
| Speed: | General Speed Mechanical Seal |
| Temperature: | High Temperature Mechanical Seal |
| Performance: | Wear |
| Standard: | Standard |
| Balance: | Unbalanced |
| Specification: | Inner Diameter: 18 mm to 90 mm |
Quick Details
Specifications
Basic Features
- Structure: Single End
- Pressure: Medium Pressure Mechanical Seals
- Speed: General Speed Mechanical Seal
- Temperature: High Temperature Mechanical Seal
- Performance: Wear
- Standard: Standard
- Model NO.: M37G
- Balance: Unbalanced
- Specification: Inner Diameter: 18 mm to 90 mm

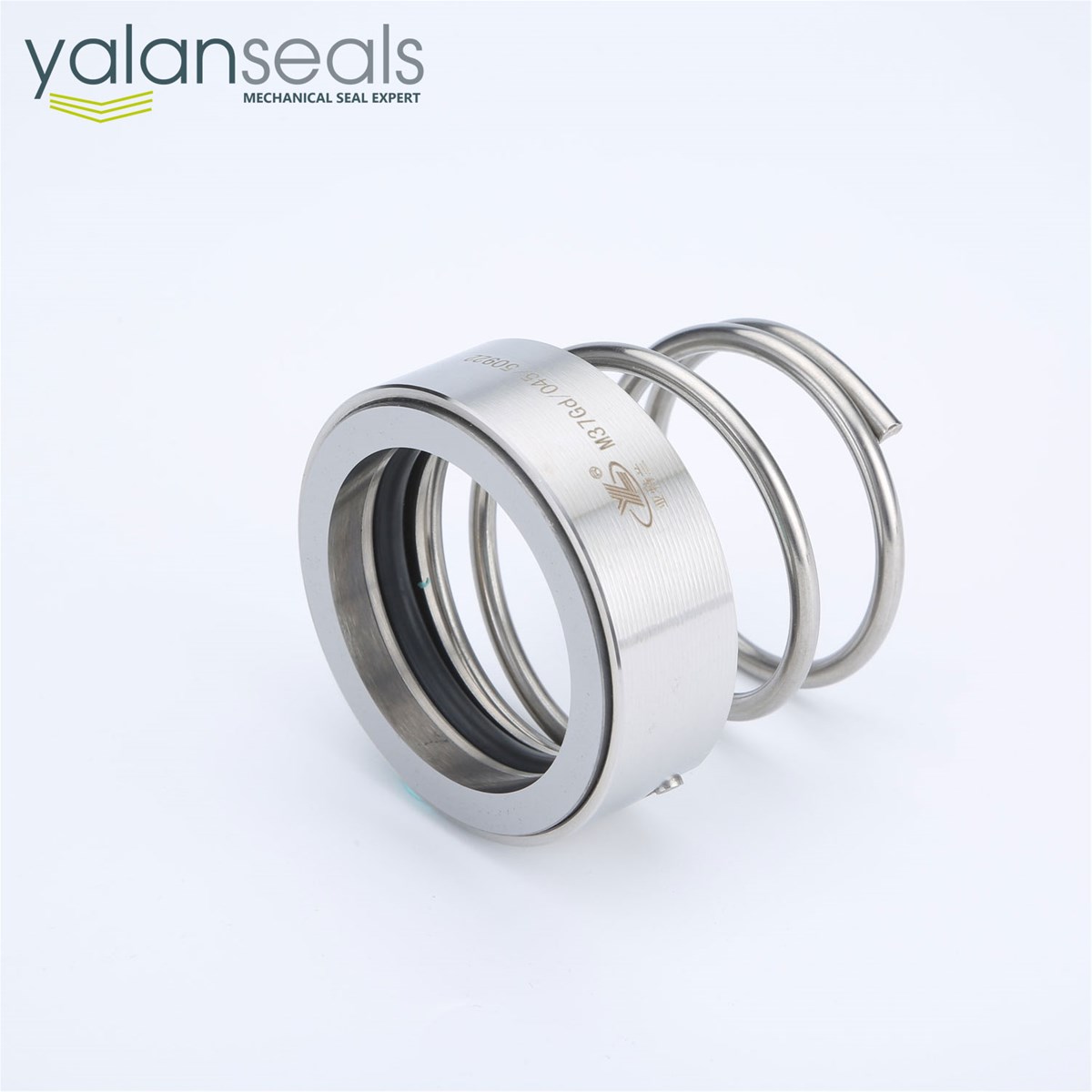

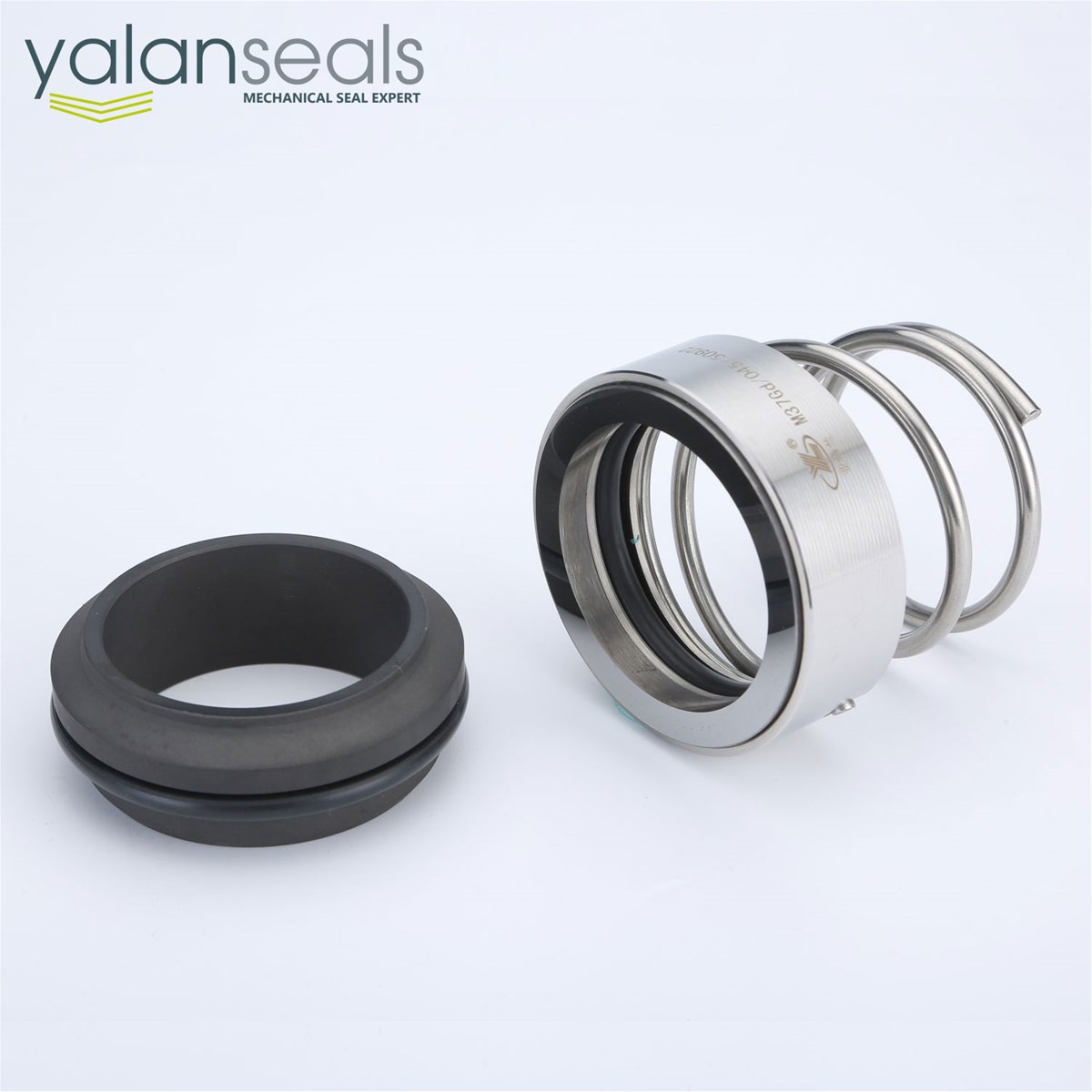

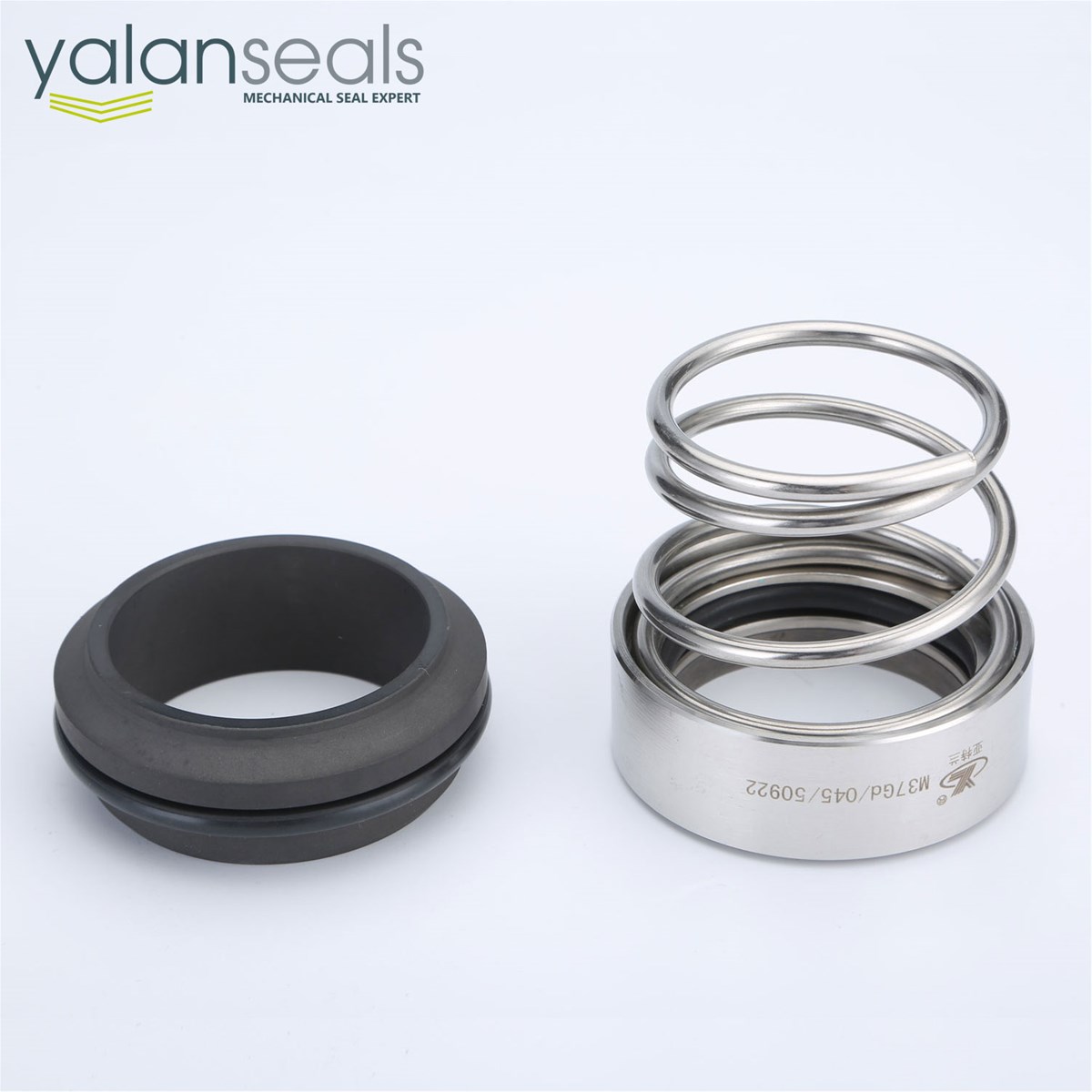

M37G Mechanical Seal for Clean Water Pumps, Circulating Pumps and Vacuum Pumps
Structural Features: single end, unbalanced, conical spring, dependent direction of rotation, spring transmission.
Industrial Standards: DIN24960, ISO3069, GB6556-94
Scopes of Application: widely used in chemical centrifugal pumps, clean water pumps, sewage pumps, temperature control pumps, submerged pumps, and heat-transfer oil pumps. this product can be an alternative to similar products from EG&G SEAL OL, Flexibox and Roten.
Operation Parameters:- Pressure: 1.0 MPa or less
- Temperature: - 20 ~ 180 C
- Linear Speed: 10 m/s or less
Mediums: oil, water, weak acid, weak alkali, organic solvents as well as subjects with granules, crystals, and high viscosity.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
