| Brand Name: | YALAN |
|---|---|
| Material: | Metal |
| Style: | Mechanical Seal |
| Standard or Nonstandard: | Standard |
| Color: | Silver |
| Model Number: | GR-SA |
| Place of Origin: | China (Mainland) |
| Structure: | Single End |
| Pressure: | Medium Pressure Mechanical Seals |
| Speed: | General Speed Mechanical Seal |
| Temperature: | Temperature Mechanical Seal |
| Performance: | Corrosion |
| Standard: | Standard |
| Balance: | Balanced |
| Specification: | Inner Diameter: 38 mm, 50 mm, 65 |
Quick Details
Specifications
Basic Features
- Structure: Single End
- Pressure: Medium Pressure Mechanical Seals
- Speed: General Speed Mechanical Seal
- Temperature: Temperature Mechanical Seal
- Performance: Corrosion
- Standard: Standard
- Model NO.: GR-SA
- Balance: Balanced
- Specification: Inner Diameter: 38 mm, 50 mm, 65 mm and 70 mm

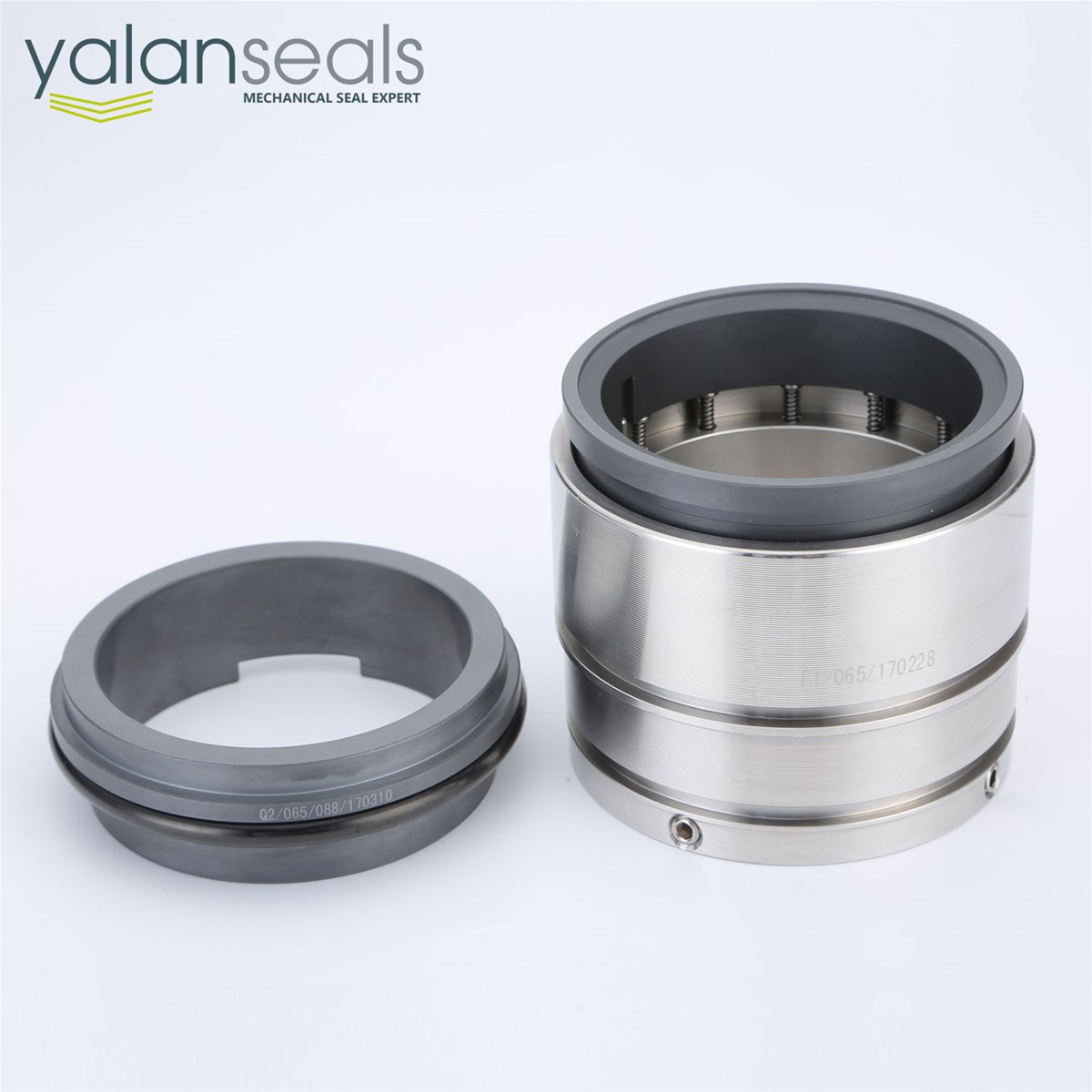

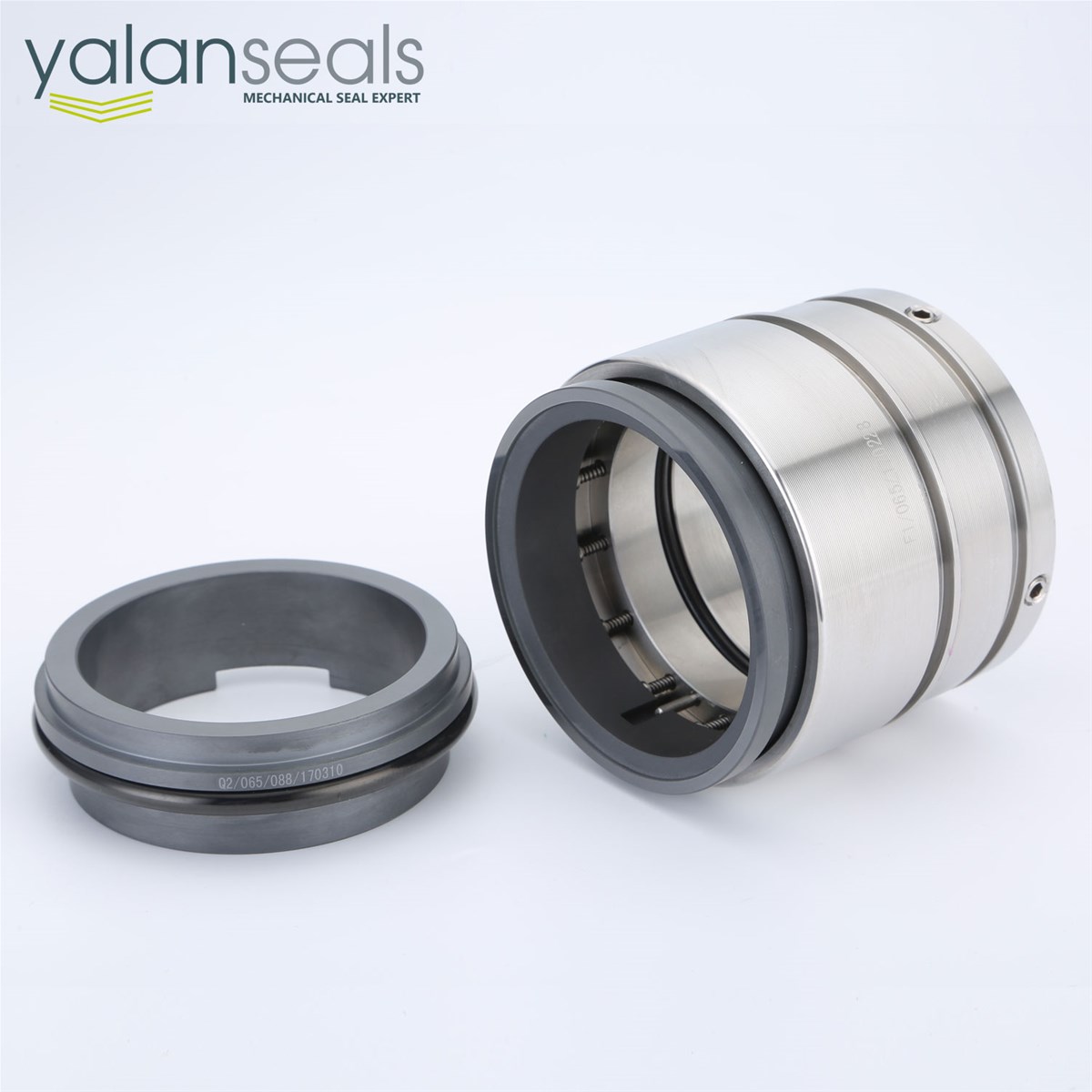

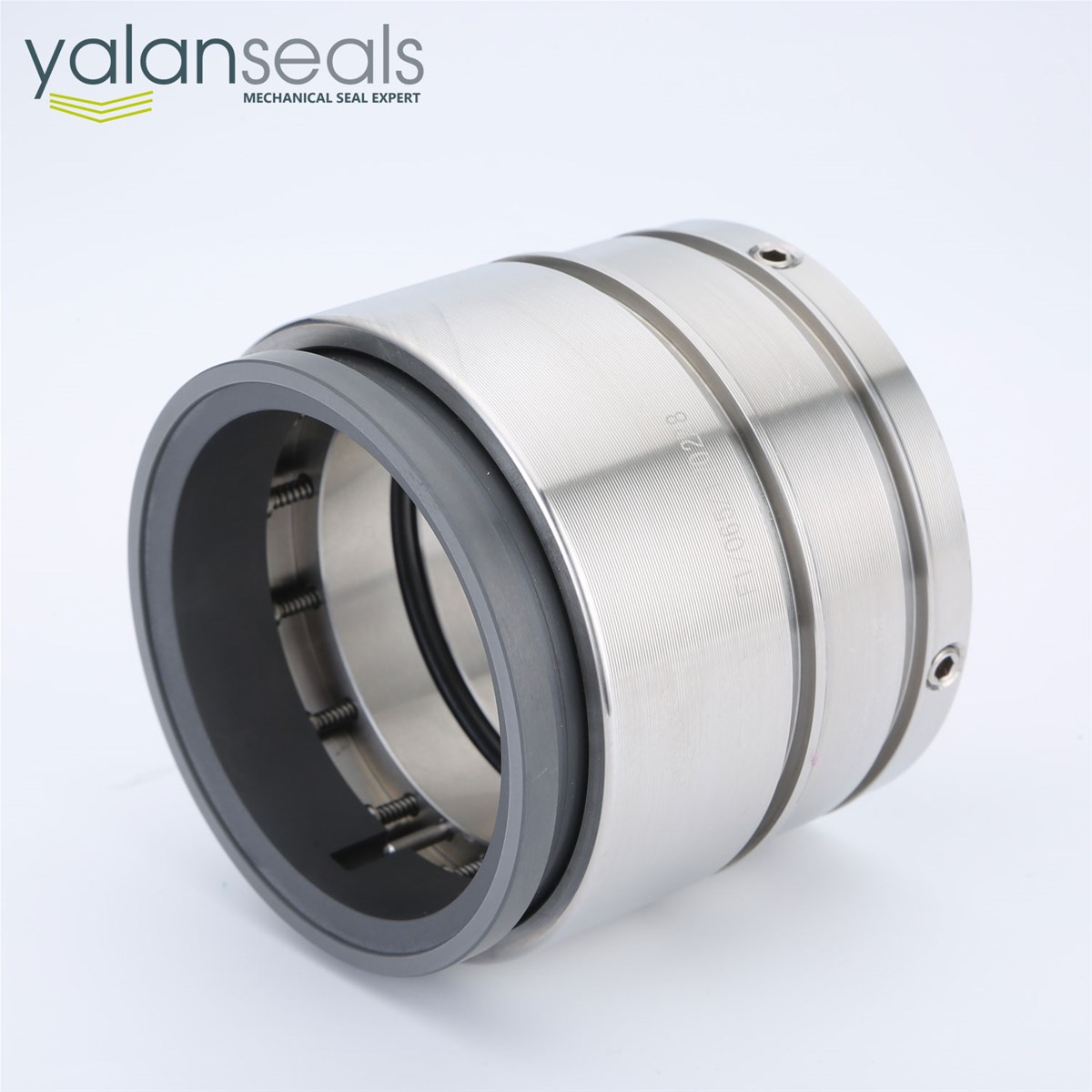

GR-SA Mechanical Seal for Sewage Pumps
Structural Features: single end, multiple still springs, balanced, independent direction of rotation, non-cartridge seal. Be advised, this type of component only has 4 inner diameters: 38 mm, 50 mm, 65 mm, 70 mm.
Industrial Standards: DIN24960, ISO3069, and GB6556-94
Scopes of Application: mainly used in sewage pumps. this component can work as an alternative to Gorman-Rupp original seal product GR-SA.
Operation Parameters:- Pressure: 1.6 MPa or less
- Temperature: - 20 ~ 120 C
- Linear Speed: 15 m/s or less
Mediums: water, oil, sewage and other weak corrosive mediums.
Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
