| Frequency Range: | 700-2700 |
|---|---|
| Type: | External |
| Brand Name: | AMEISON |
| Gain: | 10 |
| Connector: | N female |
Quick Details
Specifications

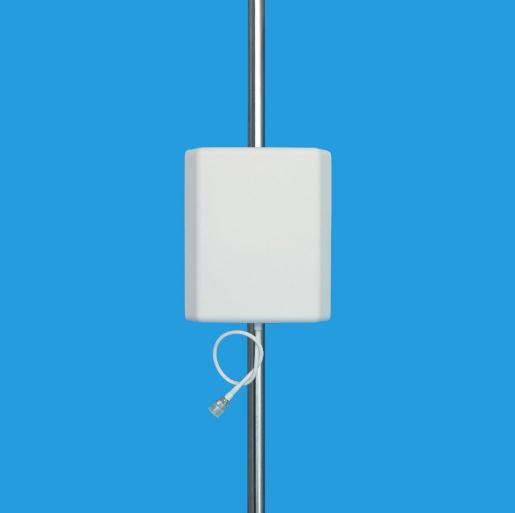

698-2700MHz Directional Panel Antenna
Feature:
High gain, strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
Indoor or Outdoor coverage system
CDMA800/GSM900/3G4G/WiFi//WLAN/LTE system
AMXW-7027-10 Electrical Specifications | |
Frequency range(MHz) |
698960/17102690 |
Bandwidth(MHz) |
264/980 |
Gain(dBi) |
7/10 |
Half-powerBeam width() |
H:70/60 V:55/45 |
VSWR |
1.5 |
Input Impedance() |
50 |
Polarization |
Vertical |
Maximum input power(W) |
50 |
Lightning protection |
DC Ground |
Input connector type |
N Female or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) |
210*180*45 |
Antenna weight(kg) |
0.57 |
Operating temperature(c) |
-4060 |
Rated Wind Velocity(m/s) |
60 |
Radome Material |
ABS |
Radome color |
white |
Mounting hardware(mm) |
35-50 |
