| Application: | Unix Soldering Robot |
|---|---|
| Brand Name: | YINATE |
| Model Number: | P2D-R P25D-R P3D-R P4D-R P5D-R P6D-R |
| Place of Origin: | China (Mainland) |
| Type: | Machine Tools |
| Packaging Type: | Standard Export Packing |
| Condition: | EXW |
| Color: | Black |
| Material: | Iron, Copper ,Chromium Tip body |
| Length: | 65mm-70mm |
| Sample: | Available |
Quick Details
Specifications
Top Japan Unix Replacement Tips P2D-R P25D-R P3D-R P4D-R P5D-R P6D-R Robotic Soldering Iron Tip for Unix Soldering Robot
Japan Unix soldering tip is high quality soldering iron tip designed for the use of automated soldering machine. Which are environmental, Lead-free and adustable and can be special-shaped. We adopt the precise iron plating technology of Japan, numerical controlled automatic equipment and on-line measurement.
| Models: P2D-R P25D-R P3D-R P4D-R P5D-R P6D-R |
| Applied to JAPAN UNIX Soldering robot |
| Black chromium with soldering iron tips. |
| Material: High purity copper |
| Safety rank: 1 |
| Temp.Range: 200-450 degree centigrade |
| CROSS HEATER / High power * high quality heater for Soldering Robot(CROSS HEATER for 200W ) |
| Certificate: SGS, ROHS,CE |
| Tips: Custom-made Service available |
| Sample: Available for Free |
Features of Japan Unix Cross Bit
1.Black chromium-plated tips.
2. It is fit for use with CROSS-HEATER.
3. CROSS-BIT is high quality iron tip desinged for the use of automated soldering.
4. Solder "tinned area" of tips pated with lead-free solder.
5. Stainless steel cross structure attached in position (female side) to meet the positioning projection on the inside of the heating element(CROSS-HEATER).
6. Available in numerous standard tip shapes, including point soldering and linear soldering.
7. Tips available in three sizes, ranging from 100W to 300W, to meet specific heater capacities.
8. Custom tips tailored to the customer's specifications can be designed and built in multiples of 10.
Advantages of YINATE Soldering Iron Tips
| Top five reasons to choose YINATE |
| 1. Good quality, Lower price |
| 2. Longer service life. |
| 3. Short production cycle. |
| 4. Free samples available. |
| 5. Perfect after-sales service. |
UNIX Soldering Robot Tips Standard Models
| P2D-N, P3D-N, P4D-N, L2D-N, L3D-N, L4D-N, LS2D-N, LS3D-N, LS2D-N1, LS3D-N1 |
| P2D-R, P25D-R, P3D-R, P4D-R, P5D-R, P6D-R, L2D-R, L25D-R, L3D-R, L4D-R, L5D-R, LS2D-R, LS25D-R, LS3D-R, LS4D-R, LS5D-R, LS6D-R, L2D-R1, L25D-R1, L3D-R1, L4D-R1, L5D-R1, L6D-R1, LS2D-R1, LS25D-R1, LS3D-R1, LS4D-R1, LS5D-R1, LS6D-R1 |
| P2D-S, P25D-S, P3D-S, P4D-S, P5D-S, P6D-S, L2D-S1, L25D-S1, L3D-S1, L4D-S1, L5D-S1, L6D-S1, LS2D-S1, LS25D-S1, L3SD-S1, LS4D-S1, LS5D-S1, LS6D-S1 |
| P3PC-S, P4PC-S, P6PC-S, P9PC-S, L2PC-S, L3PC-S, L4PC-S, L6PC-S, L7PC-S, L9PC-S, LS2PC-S, LS3PC-S, LS4PC-S, LS6PC-S, LS9PC-S |
| P12DVAP, P13DVAP, P16DVAP, L12DVAP, L13DVAP, L16DVAP |
| P120BCPC, P125BCPC, P130BCPC |
| P10DCN-R, P15DCN-R, P10DCN-L, P15DCN-L, L25DC-R, L30DC-R, LS25DC-R, LS3DC-R, LS4DC-R, LS5DC-R, LS20DCV, LS30DCV |
| P6V08-18, P1V08-18, P1V10-20, P1V10-23, P1V12-23, P1V12-28, L1V10-20, L1V10-23, L1V12-23, L1V12-28, L6V08-18, L6V12-23, LS1V08-18, LS1V12-23, LS1V12-28, LS1V15-30, LS1V18-33 |

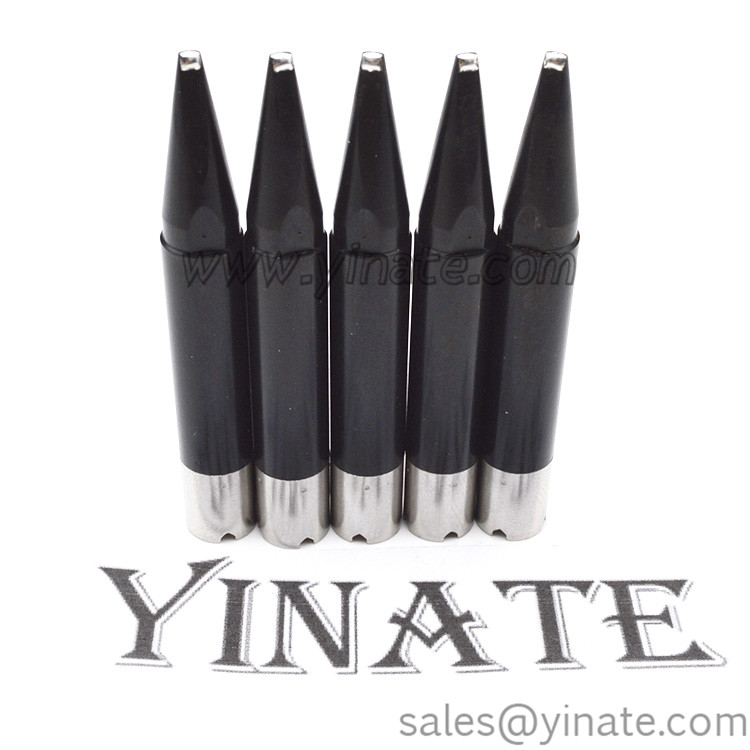

Product Picture - JAPAN UNIX SOLDERING TIPS CROSS BIT
Main Advantages:
Materials
the basic material of thermal conductivity, oxygen-free copper purity >99.95%;
Innovative development of electroplating solution, made the crystallization of the iron plating more denser.
Plating process
Computer automatic monitoring equipment controls the entire plating process.
over 20 hours plating time to keep the layers of plating combined closely. and the crystallization of iron layer is more denser, in the same thickness, compared to similar products more than 20% longer life time.
Quality control
Precision CNC machine tools, make the complexity of processing is more accurate
Adopt the advanced coating testing equipment to detect the quality of the plating.
Technical details:
CROSS-BIT is high quality iron tip desinged for the use of automated soldering.
Black chromium-plated tips.
Solder "tinned area" of tips pated with lead-free solder.
Stainless steel cross structure attached in position (female side) to meet the positioning projection on the inside of the heating element(CROSS-HEATER).
Available in numerous standard tip shapes, including point soldering and linear soldering.
Tips available in three sizes, ranging from 100W to 300W, to meet specific heater capacities.
Custom tips tailored to the customer's specifications can be designed and built in multiples of 10.
Certificates:
ROHS, SGS, CE
Our Service:
PRE-SALES SERVICE
Help and assistance in choosing or using our products.
after-SALES SERVICE
the professional from our company will direct you to have it serviced regularly and replace the parts and components.
If there's any quality issue, buyer can send back the goods for replacement.
the buyer can return the goods within 7 days after receipt of the package without reason (the product should be fine as original shipping), the buyer pay the shipping cost of sending & returning.
MANUFACTURER'S WARRANTY
Our products(automation products) come with a standard manufacturer's warranty of 12 months.
