| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | Business License |
| Brand Name: | Sanmore |
| CNC or Not: | CNC |
| Condition: | New |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

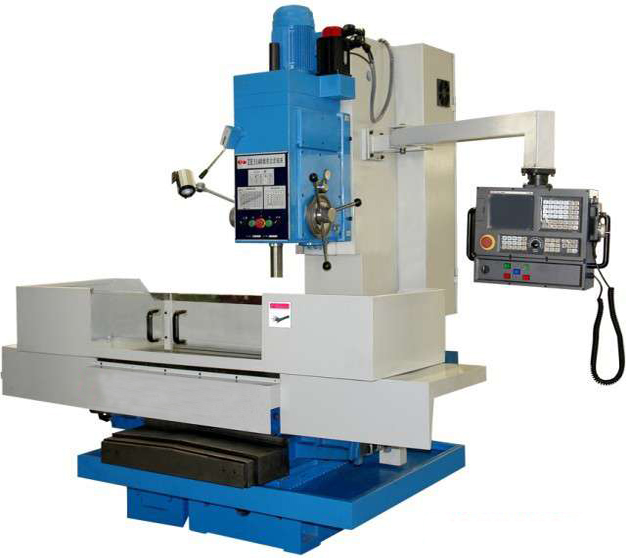

ZK5140/5150 CNC Vertical Drilling Machine
Main technical parameters |
ZK5140 |
ZK5150 |
Worktable size mm |
1000*545 |
1000*545 |
Worktable area mm |
850*400 |
850*400 |
Max Drilling diamm |
40 |
50 |
T-slot width * Width |
18*3 |
18*3 |
Spindle taper |
Morse4# |
Morse5# |
Spindle speed /ranks r/min |
31.5-1400/12 |
31.5-1400/12 |
Main motor power KW |
3 |
3 |
Moving scope (mm) |
850*400*240 |
850*400*240 |
Spindle box Travel(Manual)mm |
360 |
360 |
Distance from spindle nose to worktable(mm) |
100-700 |
100-700 |
mmDistance fromSpindleaxisto Column guide-way |
335 |
335 |
Rapid moving Speed of X/Y/Z (m/min) |
15/15/1.1 |
15/15/1.1 |
CNC System |
KND System |
KND System |
Maximum spindle torque( N. M) |
350 |
350 |
Max feeding resistance (N) N |
10000 |
12000 |
Positioning Accuracy (mm) |
0.025 |
0.025 |
Repeatability positioning precision (mm) |
0.015 |
0.015 |
Machine weight(Gross weight/Net weight)T |
2.7/3.3 |
2.6/3.1 |
Overall size (L*W*H)mm |
1880*1590*2360 |
1880*1590*2360 |
Packing size((L*W*H)mm |
2360*2490*2580 |
2360*2490*2580 |
Please notes:
the price marked here is not the real price, Just for product play. for detailed information, please contact the Supplier.
