| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | Business License |
| Brand Name: | Sanmore |
| CNC or Not: | Normal |
| Condition: | New |
| Model Number: | Z3040A |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

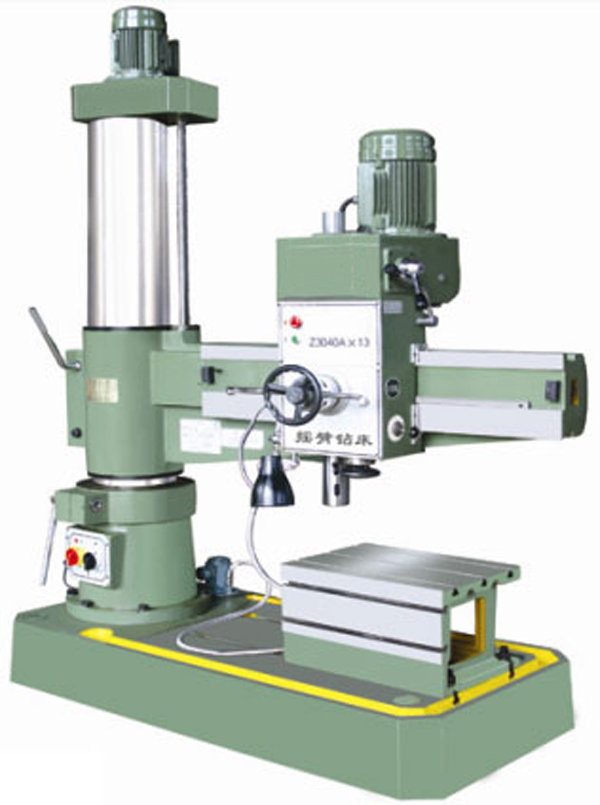

Z3040A Radial Drilling Machine (Double-column type)
Main technical parameters |
Z3040A13 |
Max Drilling diamm |
40 |
Distance from spindle nose to worktable(mm) |
260-1050 |
Distance Spindle axis to column generating line (mm) |
360-1300 |
Spindle travelmm |
200 |
Spindle taper(Morse) |
4 |
Spindle Speed r.p.M |
24, 44, 81, 93, 113, 158, 194, 291, 357, 410, 696,1300(R /min) |
Step of spindle speed |
6 |
Range of spindle feedsr.p.M |
0.10-0.25 |
Step of spindle feed |
3 |
Swing Angle of rocker arm() |
360 |
Main Motor power kw |
2.2 |
Lifting motor power(kw) |
0.75 |
Machine Weight kg |
1700/1800 |
Overall sizemm |
15007052200 |
Please notes:
the price marked here is not the real price, Just for product play. for detailed information, please contact the Supplier.
