| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | Business License |
| Brand Name: | Sanmore |
| CNC or Not: | Normal |
| Condition: | New |
| Model Number: | Z3045 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

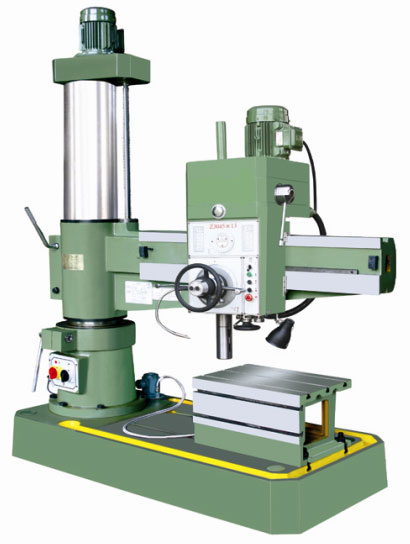

Z3045 Radial Drilling Machine
Main technical parameters |
Z304513 |
Max Drilling dia(mm) |
45 |
Distance spindle axis to column generating line (mm) |
480-1195 |
Level travel of spindle box(mm) |
715 |
Distancefrom spindle nose to tablE of base (mm) |
250-960 |
RockerarmLifting distance(mm) |
710 |
Rocker arm lifting speed(m/mm) |
1.32 |
Swing angle of rocker arm() |
360 |
Spindle taper(Morse) |
Morse No. 4 |
Spindle speed (r/mm) |
34-1250 |
Step of spindle speed |
12 Steps |
Range of spindle feeds (mm/r) |
0.16-0.25 |
Step of spindle feed |
3 Steps |
Spindle travel(mm) |
280 |
Allowable maximum feeding Resistance (N) |
10000 |
Main motor power (kw ) |
3 |
Machine weight(kg) |
1800/1900 |
Overall size(LWH)(mm) |
16557202200 |
the price here is not the real price, just for product display. for the detailed information, please contact us!
