| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | Business License |
| Brand Name: | Sanmore |
| CNC or Not: | Normal |
| Condition: | New |
| Model Number: | Z3050 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

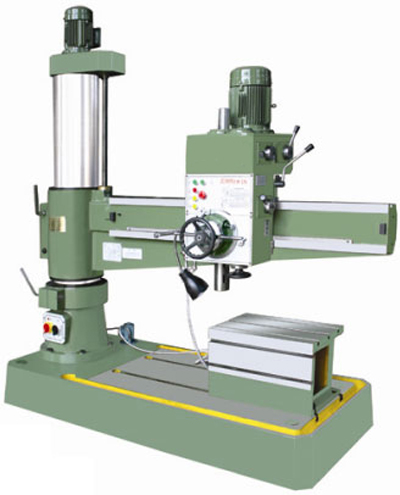

Z3050 Radial Drilling Machine(Hydraulic clamping device optional)
Main technical Parameters |
Z305016 |
Max Drilling diamm |
50 |
Distance from spindle nose to worktable(mm) |
260-1050 |
Distance spindle axis to column generating Line (mm) |
360-1600 |
Spindle travel mm |
220 |
Spindle taper(Morse) |
5 |
Spindle Speed r.p.M |
78,135,240,350,590,1100 |
Step of spindle Speed |
6 |
Range of spindle feeds (r.p.M) |
0.10-0.56 |
Step of spindle feed |
6 |
Swing angle of rocker arm() |
360 |
Main Motor power kw |
4 |
Lifting Motor power kw |
1.5 |
Machine Weight kg |
2450/2600 |
Overall size mm |
21709502450 |
Please note: the price here is not real price, just for product display. for more information, please feel free to contact us!
