| Weight: | 3000kg |
|---|---|
| Brand Name: | Sanmore |
| CNC or Not: | Normal |
| Type: | Surface Grinding Machine |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

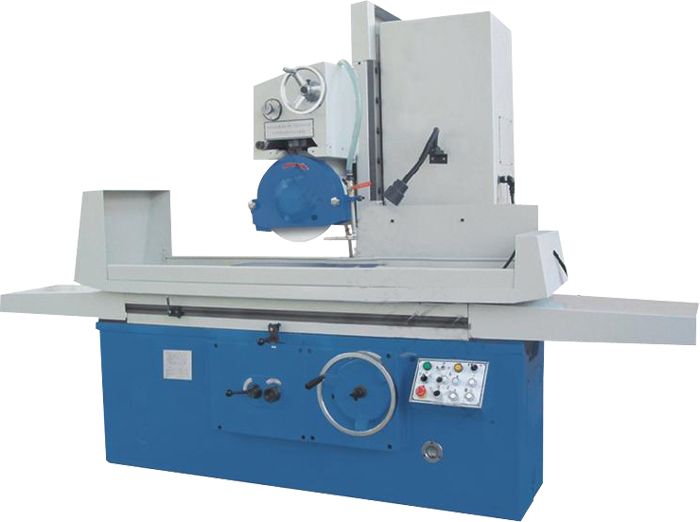

M7130 Grinding Machine Grinder Machine
Model |
M7130 | |||
Working table |
Table size(LW) |
mm |
1000300 | |
Max travel of table in longitudinal |
mm |
1100 | ||
Max workpiece to be ground(LWH) |
mm |
1000320400 | ||
T slot |
|
318 | ||
Table speed(stepless) |
m/min |
3-25 | ||
Max loading weight of table |
kg |
600 | ||
Wheel head |
Max distance from spindle to table |
mm |
575 | |
Max travlel of spindle |
Transverse(Manual and hydraulic) |
|
370 | |
Vertical |
|
400 | ||
Spinde speed |
rpm |
1440 | ||
Wheel size(O.DWI.D) |
mm |
35040127 | ||
Scale on the vertical hardwheel |
mm |
0.01 | ||
the wheelhead travel of the Handwheel per circle of dial(vertical) |
mm |
1.00 | ||
Total power |
kw |
9.17 | ||
Spinde motor |
power |
kw |
5.5 | |
speed |
r/min |
1440 | ||
Rapid up-down motor |
power |
kw |
0.37 | |
speed |
r/min |
1440 | ||
Oil pump motor |
Oil pump motor |
kw |
3 | |
speed |
r/min |
960 | ||
Coolant pump motor oil pump |
Coolant pump motor |
kw |
0.125 | |
speed |
r/min |
2800 | ||
flow |
L/min |
100 | ||
Working pressure |
MPa |
2.5 | ||
Working precision |
the parallelism of working surface to base level |
mm |
300:0.005 | |
Surface ronghness |
m |
Ra0.63 | ||
Machine weight |
Net weight |
kg |
3000 | |
Gross weight |
kg |
3500 | ||
Overall dimensions(LWH) |
Cm |
230170250 | ||
