| Weight: | 3500kg |
|---|---|
| Brand Name: | Sanmore |
| CNC or Not: | Normal |
| Type: | Surface Grinding Machine |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | M7150AH Surface Grinding Machine |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

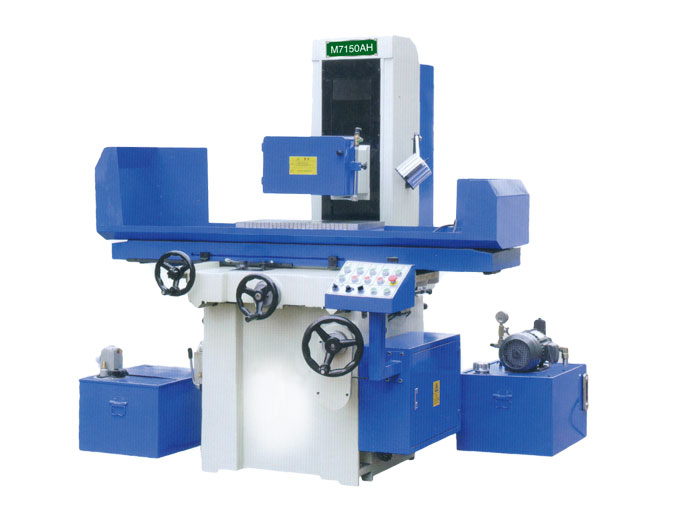

M7150AH Surface Grinding Machine
Model |
M7150AH | |||
Working Table |
Table Size(LW) |
mm |
1000500 | |
Max Travel of table in longitudinal |
mm |
1100 | ||
Max Workpiece to be ground(LWH) |
mm |
1000500400 | ||
T slot |
|
318 | ||
Table Speed(stepless) |
m/min |
3-25 | ||
Max Loading weight of table |
kg |
600 | ||
Wheel Head |
Max Distance from spindle to table |
mm |
575 | |
Max travel of spindle |
Transverse(Manual and hydraulic) |
|
440 | |
Vertical |
|
400 | ||
Spindle Speed |
rpm |
1440 | ||
Wheel Size(O.DWI.D) |
mm |
35040127 | ||
Scale on the vertical hardwheel |
mm |
0.01 | ||
the Wheelhead travel of the handwheel per circle of dial(vertical) |
mm |
1.00 | ||
Total Power |
kw |
8.99 | ||
Spindle Motor |
power |
kw |
5.5 | |
speed |
r/min |
1440 | ||
Rapid up-down motor |
power |
kw |
0.37 | |
speed |
r/min |
1440 | ||
Oil pump Motor |
Oil pump Motor |
kw |
3 | |
speed |
r/min |
960 | ||
Coolant Pump motor oil pump |
Coolant Pump motor |
kw |
0.125 | |
speed |
r/min |
2800 | ||
flow |
L/min |
100 | ||
Working Pressure |
MPa |
2.5 | ||
Working Precision |
the Parallelism of working surface to base level |
mm |
300:0.005 | |
Surface Ronghness |
m |
Ra0.63 | ||
Machine Weight |
Net Weight |
kg |
3500 | |
Gross Weight |
kg |
5000 | ||
Overall Dimensions(LWH) |
cm |
315167210 | ||
