| Weight: | 790kg |
|---|---|
| Brand Name: | Sanmore |
| CNC or Not: | Normal |
| Type: | Surface Grinding Machine |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | MD820 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

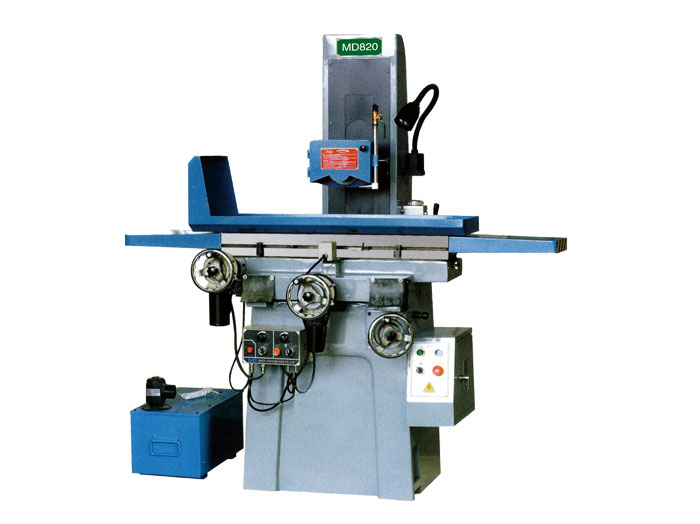

MD820 Surface Grinding Machine
Technical Parameters |
Unit |
MD820 | ||
Max.Workpiece to be Ground ( LWH) |
mm |
520220490 | ||
Max. Grinding Length |
mm |
530 | ||
Max. Grinding Width |
mm |
220 | ||
Distance from Table Surface to Spindle Center |
mm |
490 | ||
Slide way |
V-type rail with Steel-ball |
| ||
V-type rail with Steel-ball |
Kg |
200 | ||
Table Size (LW) |
mm |
480220 | ||
Number of T -Slot |
mmn |
121 | ||
Speed of Working Table(Stepless) |
M/min |
3-25 | ||
Cross Feed on Handwheel |
mm |
0.02/Graduation 2.5/revolution | ||
Auto-feed in transverse (Stepless) |
mm |
0.5-20 | ||
Rapid feed in transverse |
R/min |
144 | ||
Wheel Size (dia.Widthbore ) |
mm |
2001631.75 | ||
Spindle Speeds |
50Hz |
rpm |
2850 | |
|
30-6000 | |||
Spindle Motor |
Kw |
1.1 | ||
Auto-feed motor in transverse |
Kw |
0.2 | ||
Auto-feed motor in longitudinal |
Kw |
0.2 | ||
Machine Size (LWH) |
mm |
168011401760 | ||
Packing Size (LWH) |
mm |
114012501940 | ||
Gross/Net |
T |
O.89/0.79 | ||
the Price here is not real price, just for product display. for detailed information, please feel free to contact us!
