| Weight: | 750kg |
|---|---|
| Brand Name: | Sanmore |
| CNC or Not: | Normal |
| Type: | Surface Grinding Machine |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | MS820 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

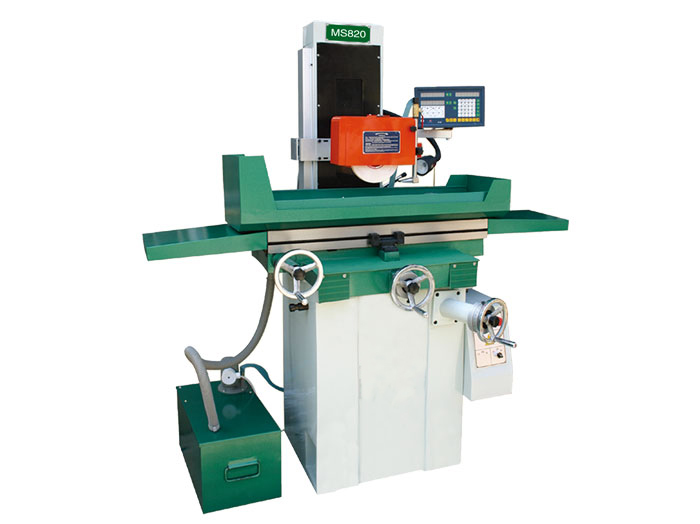

MS820 Surface Grinding Machine
Technical Parameters |
Unit |
MS820 | |
Max. Workpiece to be Ground ( LWH) |
mm |
520220490 | |
Max. Grinding Length |
mm |
530 | |
Max. Grinding Width |
mm |
220 | |
Distance from Table Surface to Spindle Center |
mm |
490 | |
Slide way |
V-type rail with Steel-ball | ||
V-type rail with Steel-ball |
Kg |
200 | |
Table Size (LW) |
mm |
480200 | |
Number of T -Slot |
mmn |
121 | |
Speed of Working Table |
M/min |
3-23 | |
Cross Feed on Handwheel |
mm |
0.02/Graduation 2.5/revolution | |
Vertical Feed on Handwheel |
mm |
0.01/Graduation 1.25/revolution | |
Wheel Size (dia. Width bore ) |
mm |
2001631.75 | |
Spindle Speeds |
50Hz |
rpm |
2850 |
|
30-6000 | ||
Spindle Motor |
Kw |
1.1 | |
Coolant Pump |
Kw |
0.4 | |
Minimum of Numerical Display |
mm |
0.001-0.005 | |
Machine Size (LWH) |
mm |
168011401760 | |
Packing Size (LWH) |
mm |
114012501940 | |
Gross, Net |
T |
O.85, 0.75 | |
