| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Brand Name: | Allfine |
| Automatic Grade: | Automatic |
| Condition: | New |
| Certification: | CE |
| Weight: | 1500kgs |
| Dimension(L*W*H): | 1600*1000*1400mm |
| Model Number: | LC-350G |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

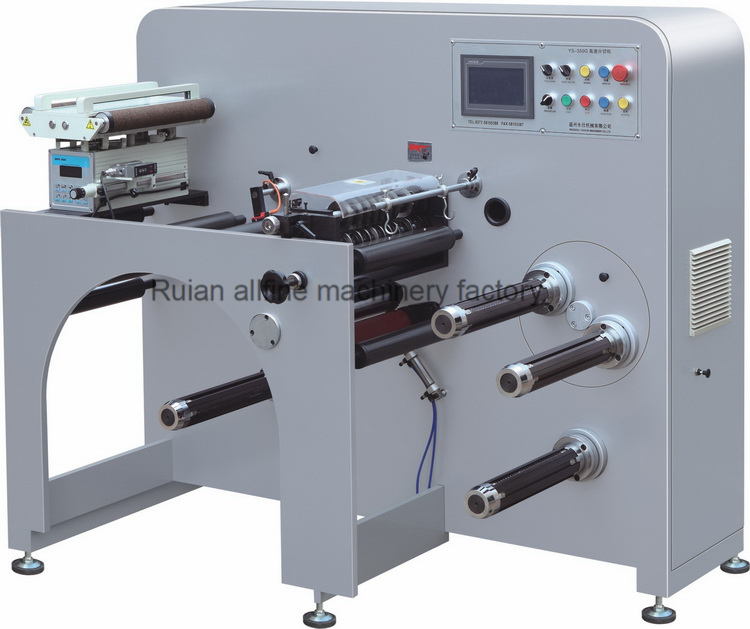

Product introduction
One researched new product, mostly is used for slitting narrow roll material, it is for top high level market with full servo driven system, typer tension system, top brand web guiding, turret rewind, it can meter and number counting, static eliminator, no material no working etc.
Performance and characteristics
Servo control with taper tension system, preset decelarate or stop when less roll detected, web guider with ultrasonic system.
2. Movable eccentric shear slitting in quick installation design. Standard high pressure waste suction system,plus optional razor blade.
3. Taper tension control system, the turret rewinder save half time for collect the finished roll.
4. Imported Germany made best sensor for counting job, if the transparent film, it needs extra accessories.
Technical Data Model LC-350G LC-450G Max. Slitting speed 300m/min Max web width 350mm 450mm Min. Slitting width 16mm Cutter installed 8 sets Max. Unwinding Dia 700mm Max.Rewinding Dia 500mm Air supply 0.8mpa Weight 1500kg Dimension(L*W*H) 1600*1000*1400
