| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Brand Name: | Allfine |
| Automatic Grade: | Automatic |
| Condition: | New |
| Certification: | CE |
| Weight: | about 600 kg |
| Dimension(L*W*H): | 1700*900*2000mm |
| Power(W): | 3kw |
| Voltage: | 380V,3P.50HZ |
| Model Number: | LC-320B |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Characteristics

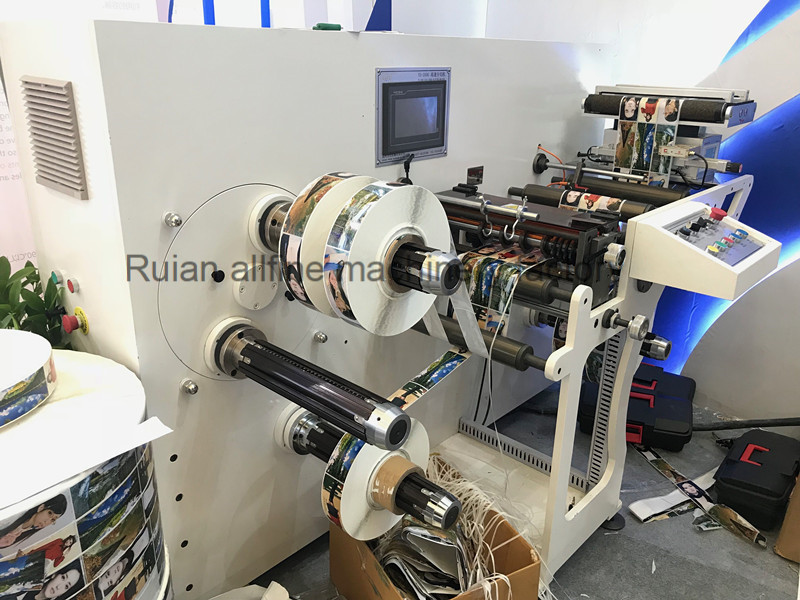

the FQ-320B/550B slitting machine is suitable for slitting narrow paper with turret rewinder with small reels. It has meter counter and number counter. the unwinding is controlled by two photoelectric eyes. the machine features compact structure, fast speed, high efficiency, easy operation and stable running.
Main Technical Parameters
Model |
||
Slitting Speed |
100m/min |
100m/min |
Max. Web Width |
320mm |
550mm |
Max. Unwinding Diameter |
600mm |
700mm |
Max. Rewinding Diameter for Big Roll |
600mm |
600mm |
Max. Rewinding Diameter for Small Roll |
200mm |
3KW |
Dimensions |
1700*900*2000mm |
1400 * 1000 *1500 |
Main Motor |
3KW |
380V, 3PHASES |
Machine Weight |
about 600kg |
about 800kgs |
