Type: | Boxing Machine |
---|---|
After-sales Service Provided: | Engineers available to service machinery overseas |
Brand Name: | HONGMING |
Packaging Material: | Wood |
Application: | Commodity,Textiles |
Condition: | New |
Certification: | ISO9001 |
Weight: | 4200KG |
Dimension(L*W*H): | 5500*4500*3000mm |
Model Number: | HM-ZD350A |
Place of Origin: | China (Mainland) |
Power: | 23KW |
Voltage: | AC 380V |
Driven Type: | Mechanical |
Automatic Grade: | Automatic |
Packaging Type: | Cartons |
Finished Box Length: | 60-350mm |
Finished Box Width: | 60-250mm |
Finished Box Height: | 10-120mm |
Greyboard Length: | 65-510mm |
Greyboard Width: | 55-410mm |
Paper Sheet Length: | 110-600mm |
Paper Sheet Width: | 45-455mm |
Greyboard Thickness: | 0.5-3mm |
Paper Thickness: | 80-160gsm |
Quick Details
Specifications

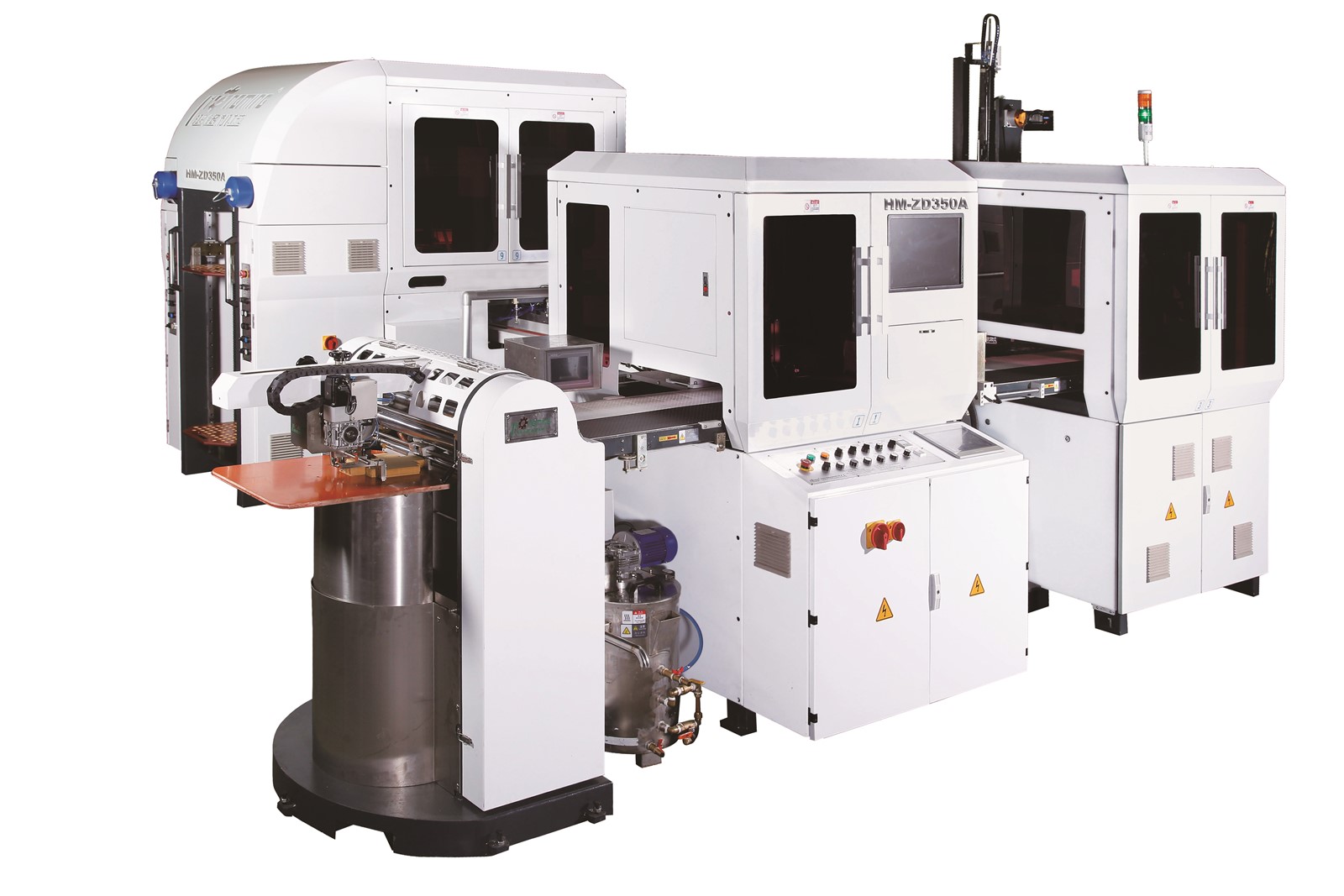

HM-ZD350A-Automatic Rigid Box Machine:
Features and fuction:
1. Suitable for all kinds of rigid bOxes in mass production;
2.Computer control withError auto stop and display;
3.AdoptJapanese Yaskawa network servo and Germany ORMON PLC;
4.Automatically change mould(optional);
5.Automatically feed paper and greybeard;
6. 24-hours control for glue pre-heating;
7. Input 300 product formula, and add 2G memory SD card;
8. Automatically cut and heat tape to paste the greyboard box's quad stayer (four corners), with independent man-machine control;
9. Spotter byElectric eyeTracing system andHydraulic pneumatic recifying systemto spot correctly(spotting accuracy 0.2mm);
10. Wrapper can automatically and continually deliver box, wrap paper, fold corner edge, fold in and form box;
11. Automatic control system for glue viscosity(optional).

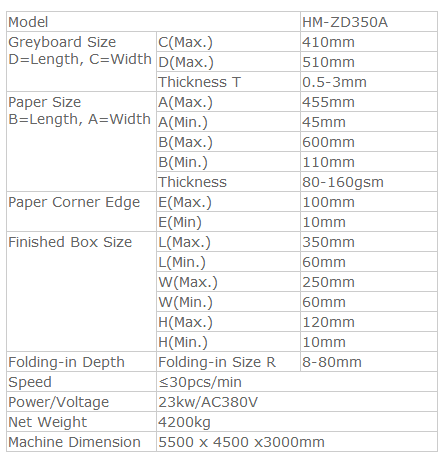

Technical parameters:

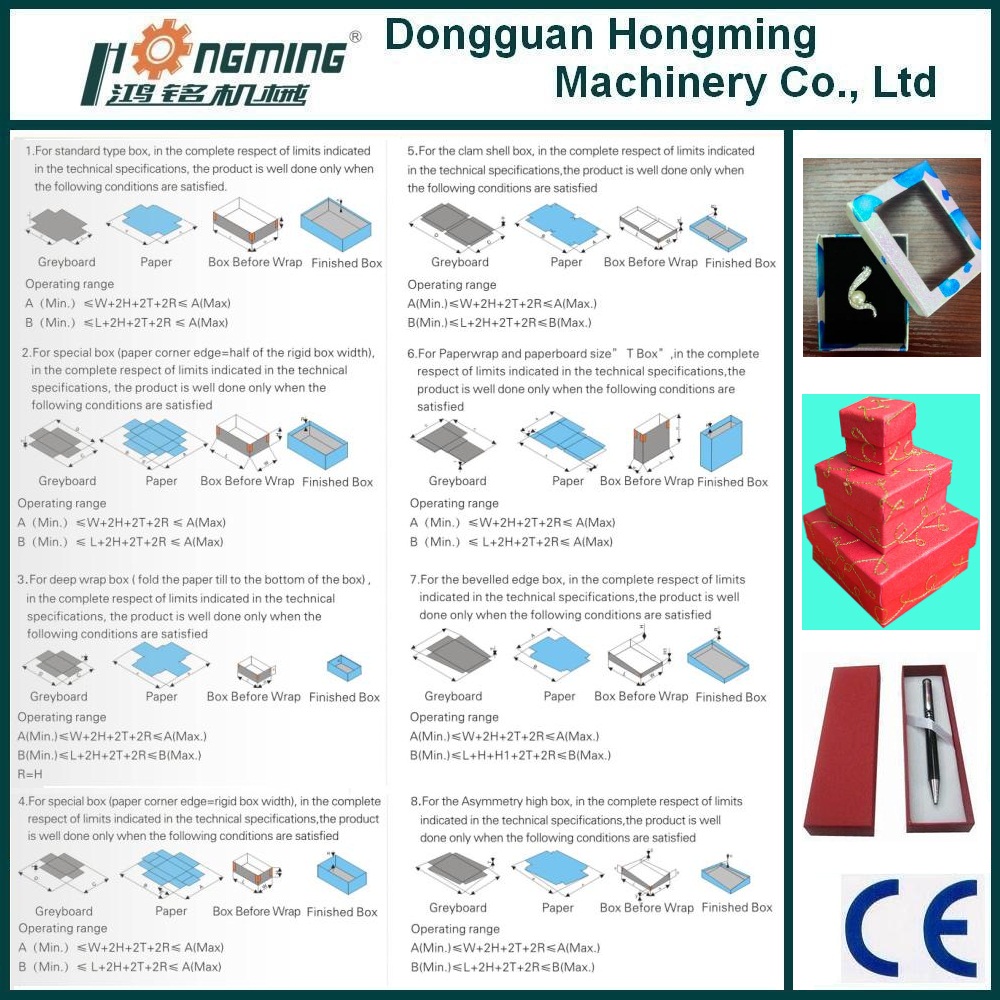

HM-ZD350A automatic rigid box making machine S box types:

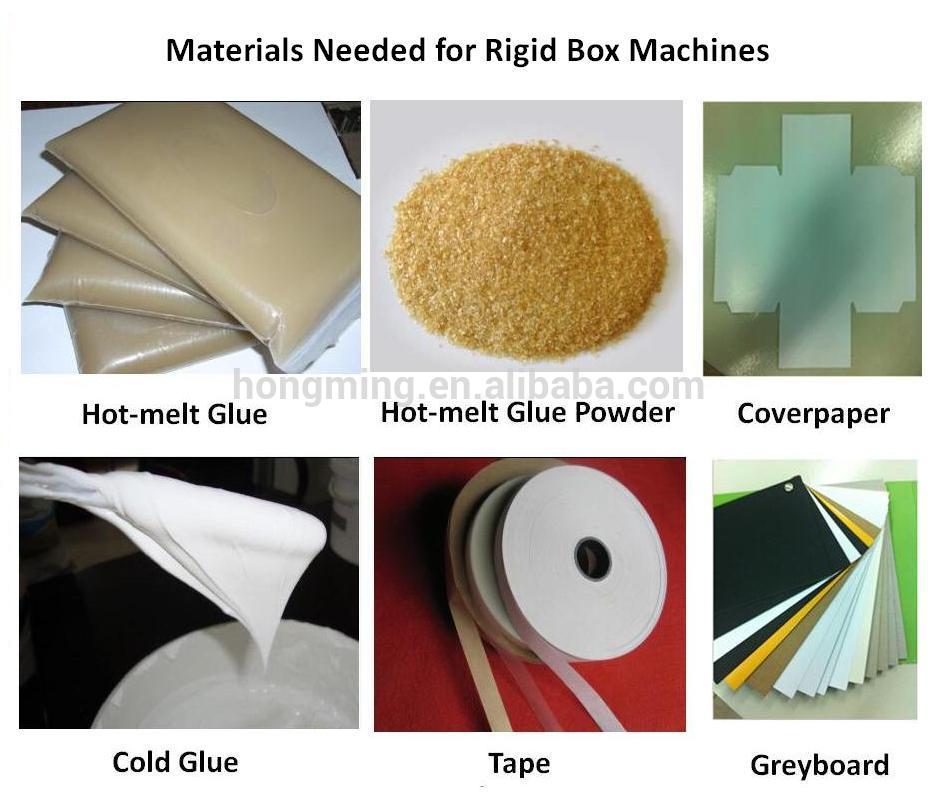

HM-ZD350A automatic rigid box making machine 's materials:
HM-ZD350A automatic rigid box making machine 's outputs:
