| Type: | Boxing Machine |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Brand Name: | HONGMING |
| Packaging Material: | Wood |
| Application: | Machinery & Hardware |
| Condition: | New |
| Certification: | CE Certification |
| Weight: | 3300kg |
| Dimension(L*W*H): | 4500*4500*2600mm |
| Model Number: | HM-ZD240 |
| Place of Origin: | China (Mainland) |
| Power: | 13KW |
| Voltage: | 380V |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Packaging Type: | Case |
| Warranty: | I year |
| Speed: | 32pcs/min |
| Tape type: | paper tape, PVC tape |
| Control type: | PLC |
| Folding-in Depth: | 8-20mm |
| spotter type: | by electric eye tracing system |
Quick Details
Specifications

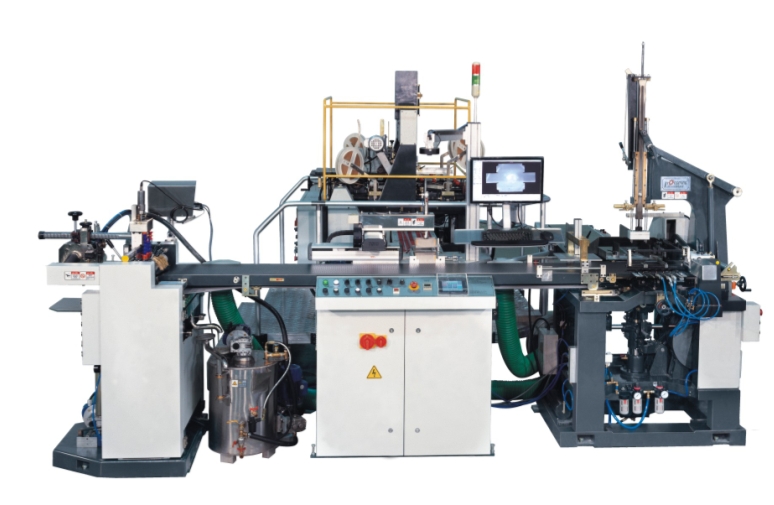

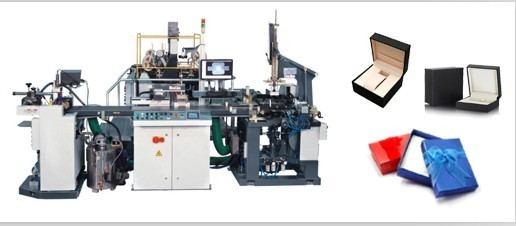

HM-ZD240 Automatic rigid box making machine
HM-ZD240 automatic rigid box making machine 's features:
1.Suit to all kind of rigid boxes in mass productiom;
2.Employ PLC,camera tracing system and man-machine control to automatically form boxes in one process;
3. Computer control with error auto stop and display;
4. Automatically feed paper and greyboard;
5. 24 hours control glue pre-heating
6. Automatically cut and heat tape to paste the greyboard box's quad stayer(four corners),with independent man-machine control;
7. Spotter by camera and robot arm(spotting inaccuray 0.05mm);
8. Wrapping unit can automatically and continually deliver box,wrap paper,fold corner edge,fold in and form box;
9. Remodel for irregular boxes and plastic boxes(optional);
10.Automatic control system for glue viscosity(optional)
HM-ZD240 automatic ridid box making machIne S technical parameters:
Model HM-ZD240 Greyboard Size D=Length, C=Width C(Max.) 320mm D(Max.) 400mm Thickness T 0.5-3mm Paper Size B=Length, A=Width A(Max.) 305mm A(Min.) 45mm B(Max.) 450mm B(Min.) 110mm Thickness 80-160gsm Paper Corner Edge E(Max.) 16mm E(Min) 10mm Finished Box Size L(Max.) 240mm L(Min.) 45mm W(Max.) 160mm W(Min.) 35mm H(Max.) 80mm H(Min.) 10mm Folding-in Depth Folding-in Size R 8-20mm Speed 32pcs/min Power/Voltage 13kw/AC380V Net Weight 3300kg Machine Dimension 4500*4500*2600mm

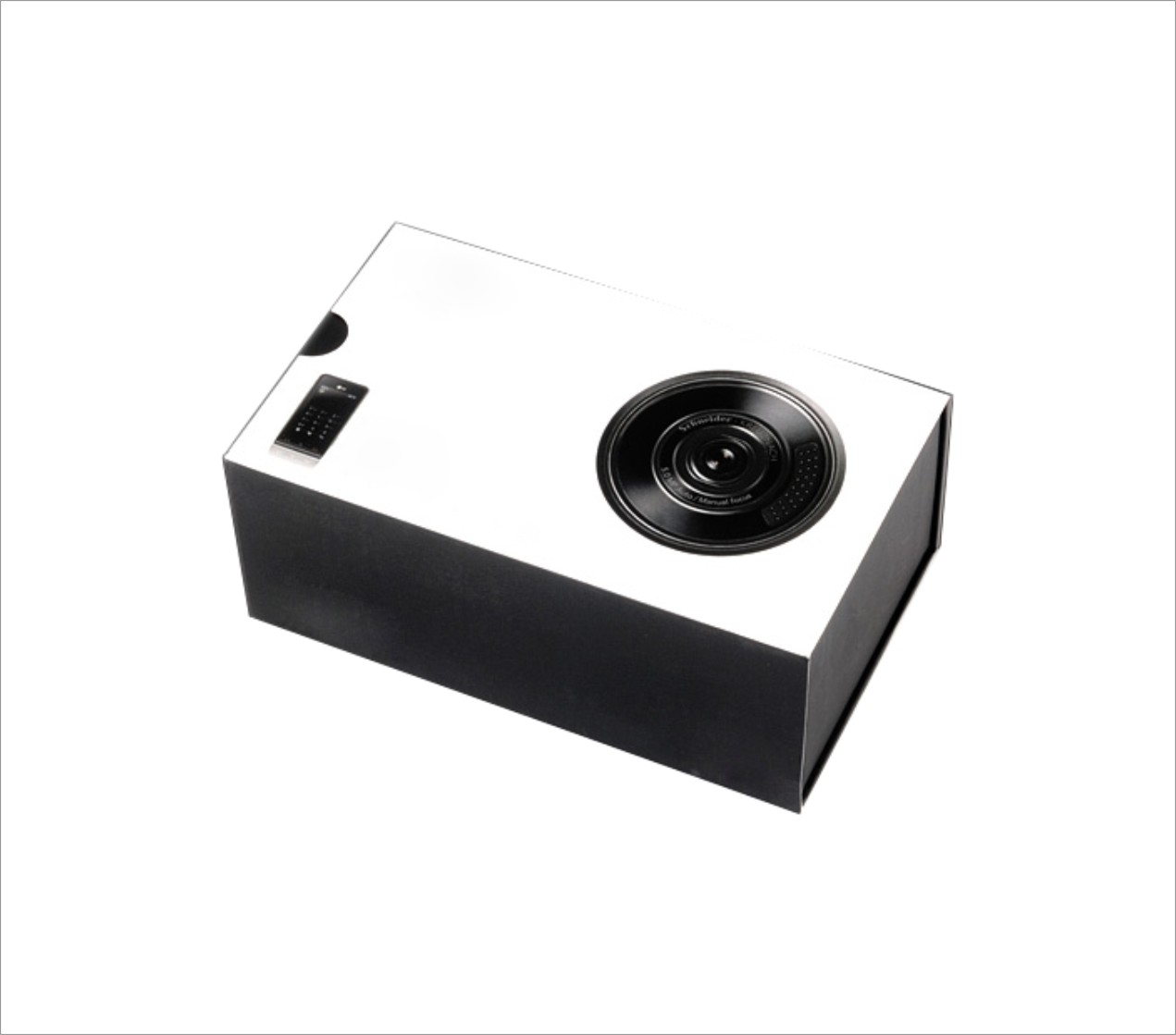

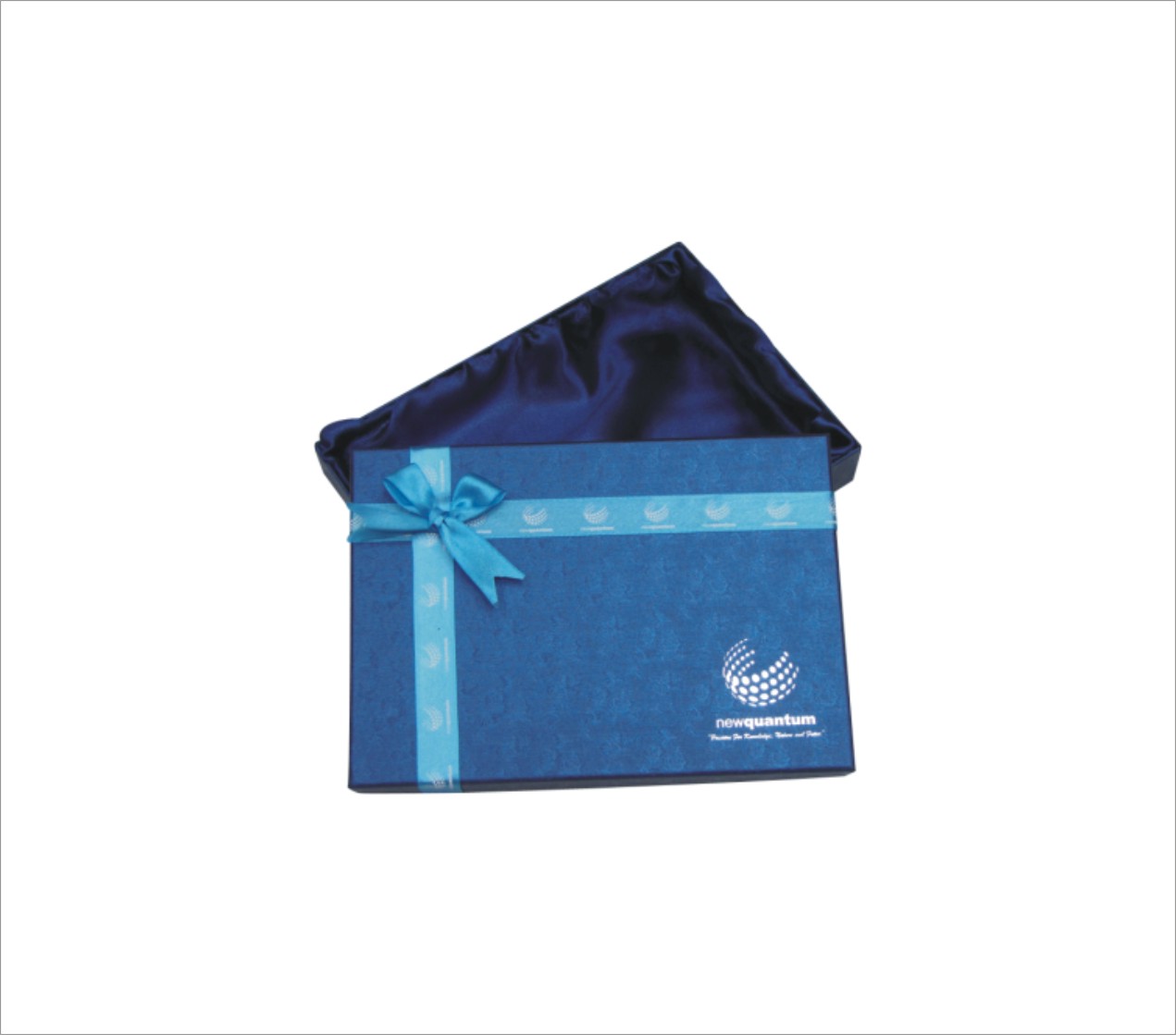

HM-ZD240 Automatic Rigid Box machine'outout:
