| Capacity: | up to 4 Ton |
|---|---|
| Scale: | Heavy Duty |
| Type: | Warehouse Tent |
| Brand Name: | Guangdong SMACO Automation Technology co.,ltd |
| Color: | RAL |
| Model Number: | PR-001 |
| Place of Origin: | China (Mainland) |
| Material: | Steel Q235 |
| Loading Capacity: | Customized and up to 4,000 Kg UDL/level |
| Racking Height: | Customized and up to 18,000 mm |
| Racking Depth: | 400-2000 mm |
| Beam Length: | Customized and up to 3,500 mm |
| Racking Finish: | Powder Coated or Pre-galvanized |
| Packing Details: | Standard export seaworthy packing |
| Delivery time: | Within 20 days after receiving 30% deposit |
| Payment term: | 30% T/T in advance and 70% against fax/scan copy of BL or LC at sight |
| Warranty: | 10 years warranty from the date of delivery to the carrier |
Quick Details
Specifications

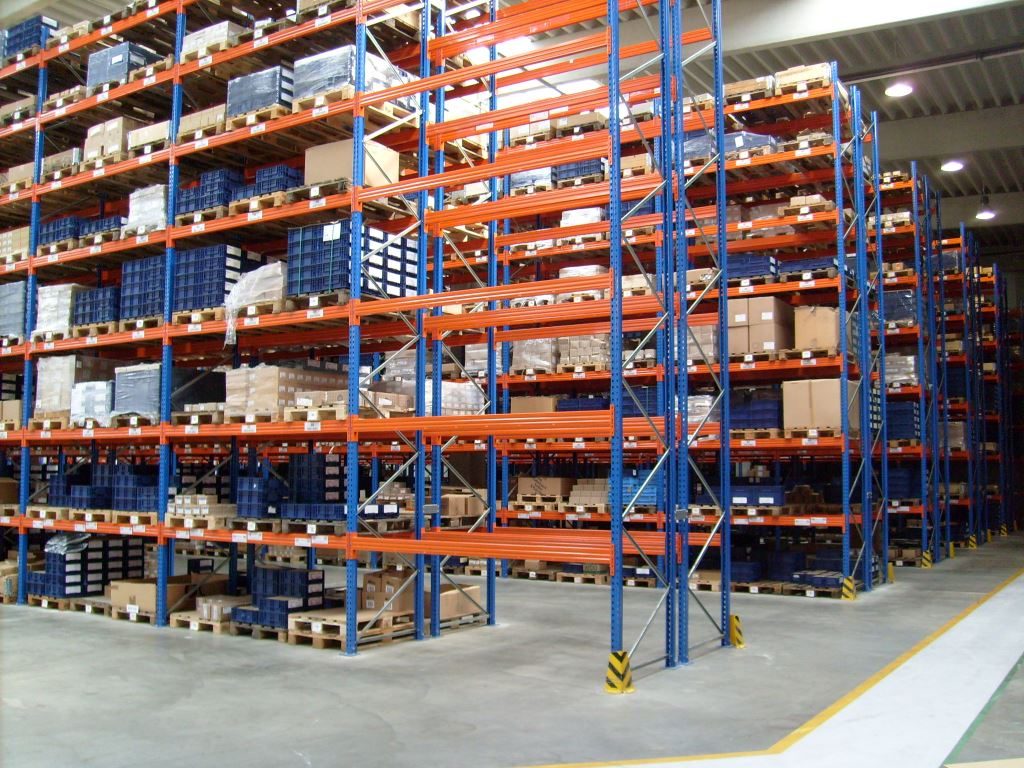

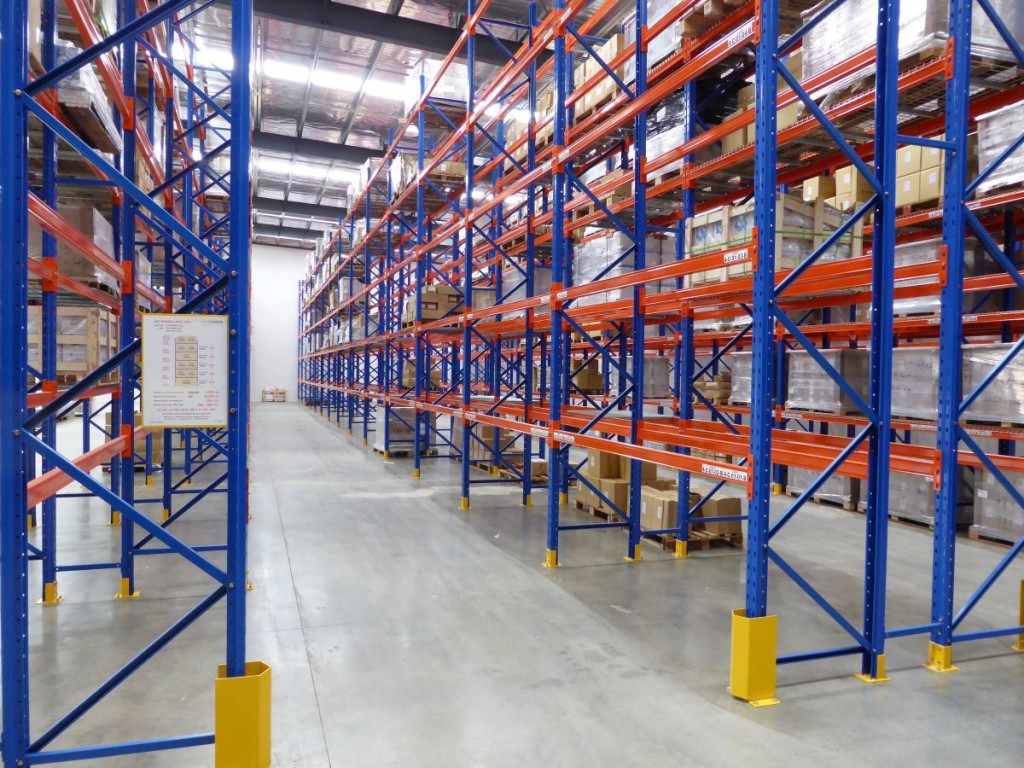

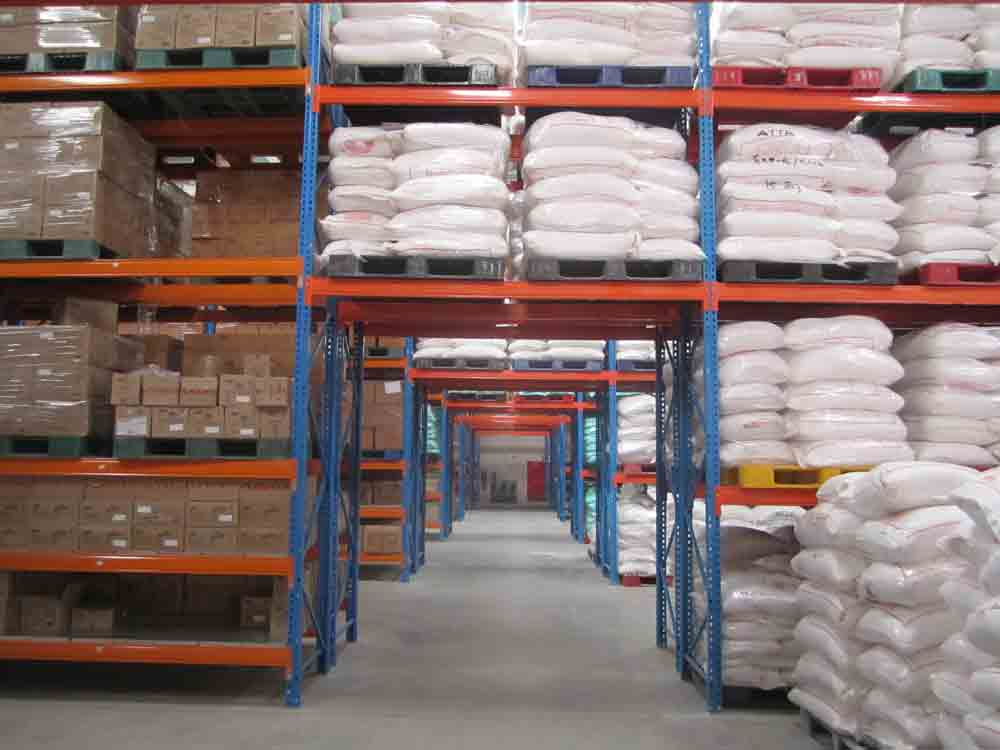

Selective Pallet Rack
INTRODUCTION
Pallet Racking System is a most useful and cost-effective steel pallet rack system providing direct access to all pallets. It provides high capacity storage,which is easily installed and adjusted, and has low equipment and capital costs.
Features of pallet racks
1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
Material |
Steel Q235 |
Loading Capacity |
Customized and up to 4,000 Kg UDL/level |
Racking Height |
Customized and up to 18,000 mm |
Racking Depth |
400-2000 mm |
Beam Length |
Customized and up to 3,500 mm |
Racking Finish |
Frames (Powder Coated or Pre-galvanized) + Bracings (Powder Coated or Pre-galvanized) + Beams (Powder coated) |
Packing Details |
Standard export seaworthy packing |
Advantages:
1) the most popular and economical pallet racking in warehouse;
2) Beam can be freely adjusted by pitch 75mm
3) Connection of the upright and beam is by wedging, equipped with safety pin to
Make sure of the safety;
4) Stable structure, large loading capacity, convenient sorting;
5) First level pallets can be placed on the floor;
6) We pay very much attention to the export packages.
7) We will send you information and photos at different production stage of your order.
8) We can send you installation instructions in the form of drawing, photos and words.
9) Sample can be sent by low express fee.
10) Perfect after sale service and patient,professional service
11) Different size of rack can be made according to your warehouse by our professional
Designer.
12)Suitable for stocking the goods directly in various kinds of warehouse
Factory storage metal rack, structured with pallets and beams are most widely used.
