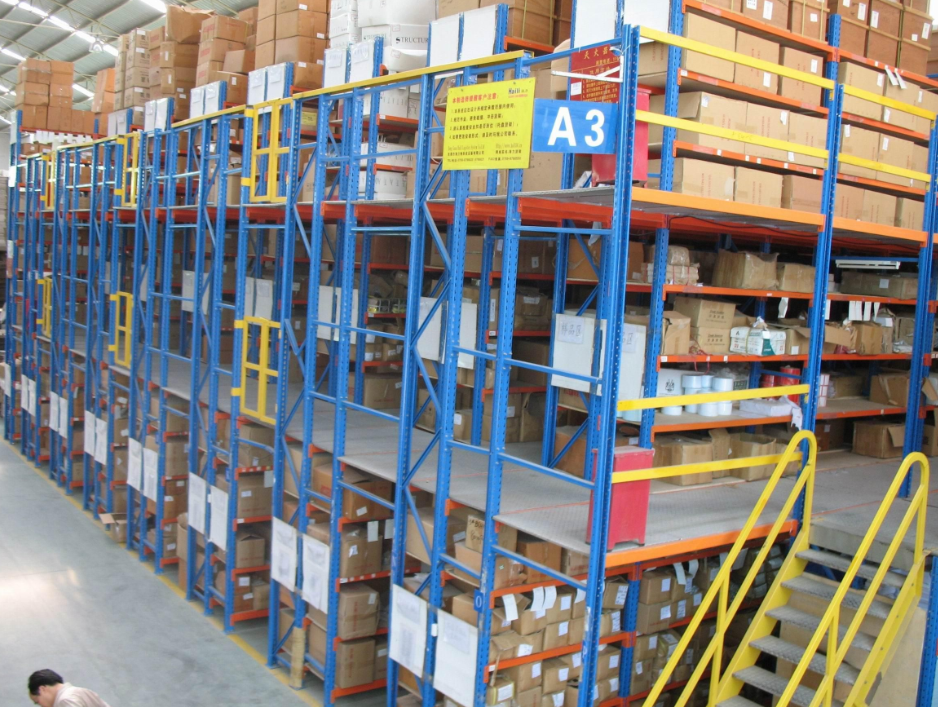

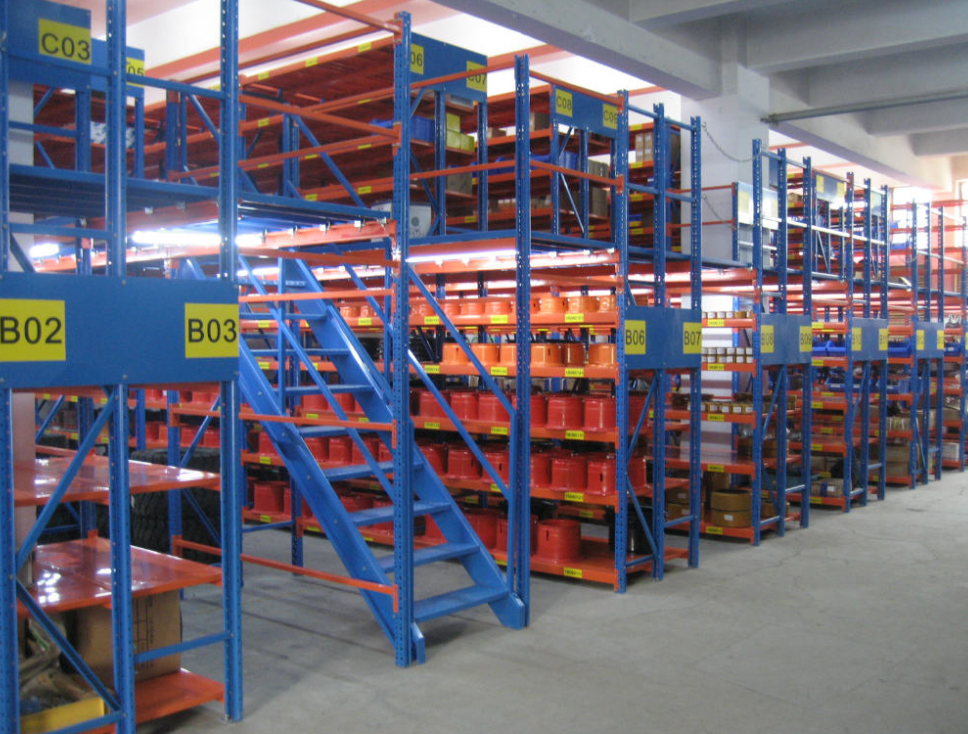

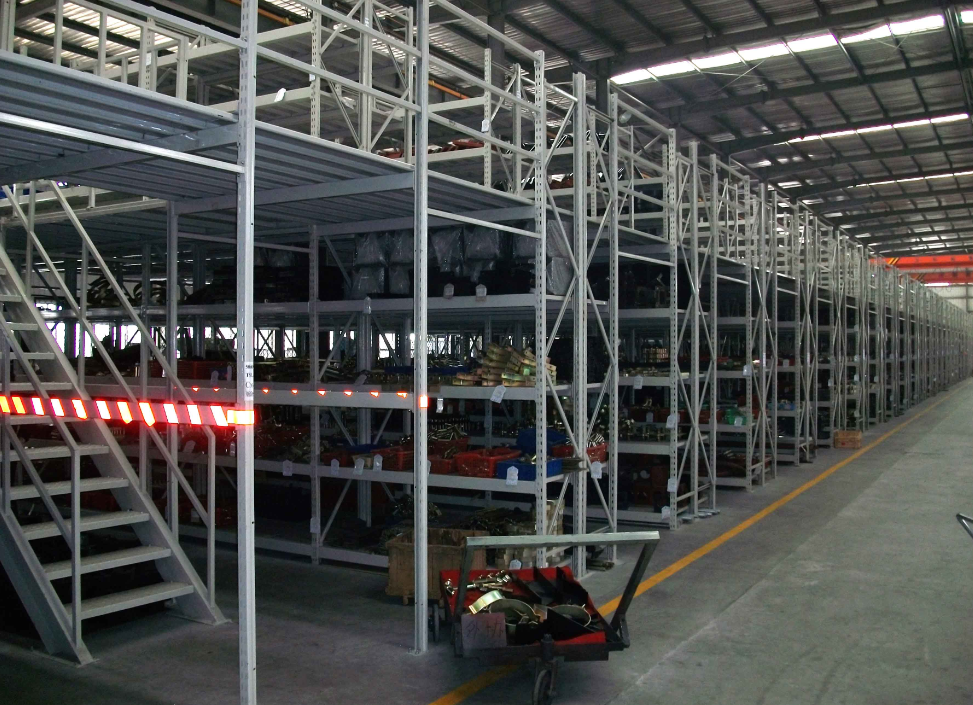

Mezzanine floor racking



IntroductionSteel platform is mainly consists of post, main beam, sub beam, floors, staircase and frame protector. It can be no on-stie welding. Different design can be provided in line with the loading capacity by selecting different material specification. It is of high intense and widely utilized. this kind of garret can be installed or dismantled freely from one warehouse ground and distance between columns is less than 6000mm. Height of first level is around 3000mm, and H 2500mm for second and third floor level. Loading capacity of floor can be designed to be no more than 1000kg/ square meter.



Specification of warehouse mezzanine floor racking system:

1. Material:High quality Baosteel brand carton steel.
2. Length: 1.5-3.3m, Width: 0.5-1.5m, Height: 2-6m;
3. Loading capacity: 300kg-500KG/ square meter of steel floor;
4. ISO&BV; Resonable price, high quality & service;

5. High space storage rate, ensures fullest space utilization;

6. Standard finishing is epoxy powder coated.

7. Layer: Can be designed into one layer or multi-layers according to actual situation of warehouse steel platform racking system with floor.

Features of steel platform

1.Lightening system can be added

2. Floors can be designed in line with the actual conditions

3.Space utilization has been increased by fully utilized the warehouse height
