| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO API |
| Power(W): | 1000 HP |
| Brand Name: | RPS |
| Condition: | New |
| Warranty: | 3 years |
| Weight: | 18790 KGS |
| Dimension(L*W*H): | 163*89*70 IN |
| Model Number: | F1000 |
| Place of Origin: | China (Mainland) |
| Type: | Triplex Single acting |
| Rated power: | 1000HP |
| Rated speed: | 140SPM |
| Max. Liner Dia.(mm/in): | 170/6 3/4" |
| Valve pot: | API 6# |
| Pressure: | 5000 PSI |
Quick Details
Specifications

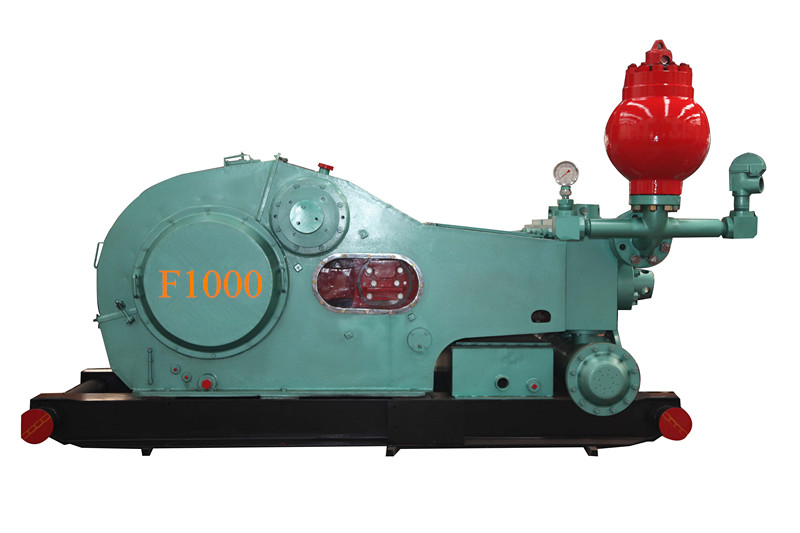

BOMCO/Emsco F1000 triplex drilling mud pump
1.Brief Introduction:
F series mud pump is applicable to the requirement of high pump pressure in the oilfield and high displacement technology of well drilling with its solid and compact structure, small volume and outstanding operational performance.
2.Techincal parameters:
Model: F-1000
Type: Triplex liner single-action
Input power: 1000 HP
Maximum stroke: 10inches (254mm)
Maximum working pressure: 5,000 psi (35 MPa)
Gear type: integral herringbone
Valve pots: API 6 #
Intake: 12 inches (305 mm)
Discharge: 4 inches (102 mm)
Pulsation dampener Model: KB -75/Capacity: 75.7 liter (20 Gallon)
Relief valve: Model: AQF-II/Discharge size: 3 in
Pressure gauge: Yk-150 0-40MPA
3. Other F series triplex drilling mud pump specification comparison Model F500 F800 F1000 F1300 F1600 Type Tripelx Single acting Tripelx Single acting Tripelx Single acting Tripelx Single acting Tripelx Single acting Rated power 373KW/500HP 596KW/800HP 735KW/1000HP 969KW/1300HP 1193Kw/1600HP Rated speed 165SPM 150SPM 140SPM 120SPM 120SPM Stroke(mm/in) 190/7 1/2" 228.6/9" 254/10" 305/12" 305/12" Max. Liner Dia.(mm/in) 170/6 3/4" 170/6 3/4" 170/6 3/4" 180/7" 180/7" Gear type Herringbone Herringbone Herringbone Herringbone Herringbone Gear ratio 4.286:1 4.185:1 4.207:1 4.206:1 4.206:1 Valve pot API 5# API 6# API 6# API 7# API 7# Suction inlet(mm/in) 203/8" 254/10" 305/12" 305/12" 305/12" Discharge outlet 4"Flange 5000PSI 5"Flange 5000PSI 5"Flange 5000PSI 5"Flange 5000PSI 5"Flange 5000PSI Max. pressure 27.2Mpa 3945PSI 34.5Mpa 5000PSI 34.5Mpa 5000PSI 34.5Mpa 5000PSI 35Mpa 5080PSI Overall size (in) 144*106*86 156*79*66 163*89*70 174*121*78 181*129*106 Weight (kgs) 9770 14500 18790 24572 24791
