1. Introduction

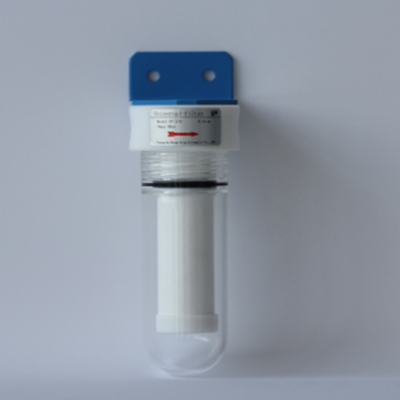

 FP-2T uses uses precise high-efficiency filter element to remove the particles from the gas, especially the tiny dust. Universal type design can be widely used in gas analysis system as well as providing several kinds of filter elements / membranes. Pollution degree can be seen directly with transparent shell. O-ring stalled in the best position, no need any tools to change filter elements. Optional to choose water drainage connector, which can be used with humidity alarm sensor together.

2. Features

 Special glass cover, anti-corrosive and easy to replace filter element.

 Pollution degree can be seen directly with transparent shell

 Base material:  PTFE

 Optional to be used with humidity alarm sensor together

3. Specifications

 Sampling interface: PTFE G1/4-6 mm

 Max operation pressure: 4bar.ABS

 Max Volume: 70cm

 Filter material: Ceramic SiC, PTFE, Glass fiber

 Sealing form: O-ring

 Holder material: Aluminum alloy

 Installation method: Wall mounted

 Filter precision range: 0.1-2um (optional)

 Power supply (for humidity alarm): DC24V

Optional humidity alarm signal output: DC24V output
