1. Introduction

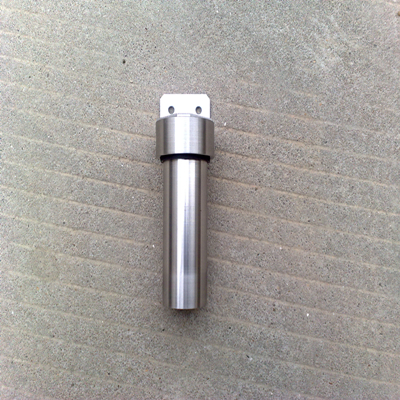

 FP-3T uses precise high-efficiency filter element to remove the particles from the gas, especially the tiny dust. Universal type design can be widely used in gas analysis system as well as providing several kinds of filter elements / membranes. It adopts stainless steel material which can be used in high-temperature and corrosive area. Replacement of filter element is easy; No need any tools while changing it.

2. Features

 Scientific and reasonable gas circuit with perfect appearance

 Made of 316 Stainless steel, corrosion resistance as well as easy to change the filter

 Made of filter, with high temperature and corrosion resistance and recycle

 Easy to replace and clean

 Base Material: 316L

3. Specifications sintering titanium alloy

 Sampling interface: G1/4-6mm

 Max operation pressure: 5bar.ABS

 Max Volume: 70cm

 Filter material: sintering titanium alloy

 Sealing form: O-ring

 Mount material: 304 SS

 Installation method: wall mounted

Filter precision range: 0.1-2um (optional)
