RPS offers High chrome liner, Ceramic liner, Chrome plated liner and Hardened liner for all brands of the mud pump.

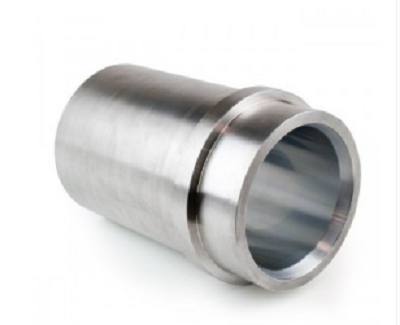

High chrome liner is manufactured by the highest-grade materials. the outer shell is made of forging high strength carbon or alloy steel. the inner sleeve is manufactured from a proprietary high chrome content iron alloy that offers excellent resistance to wear, chrome content is not less than 27%.



Features:

Liner sleeve manufactured from high chrome iron alloy

Excellent resistance to abrasion, erosion, and corrosion

Sleeve hardness up to 60~65 Rockwell C

RPS ceramic liners combine the strength of a forged steel outer shell with the abrasion and corrosion resistance of a ceramic inner sleeve

the outer hull material is manufactured from alloy steel to increase yield strength and aid in fatigue resistance. the ceramic inner sleeves are corrosion resistant and have a smoother surface finish for reduced friction and heat.



Features:

Harder wear surface than chrome iron liners

Reduce liner and piston wear

Good performance for HTHP application

Extended run times

RPS offers state of the art consumable spare parts for the most popular HDD pumps and well stimulation (fracking) pumps, major HDD pump brands:



Kerr: KA-3500PT, KT-3350PT, KT-3400PT, KM-3300PT, KM-3250PT, KZ-3150PT, Q-5450PT

Myers-Aplex: SC-65, SC-65L, SC-115L, SC-170L

FMC: FMC 420, FMC 435, FMC W1122BCD, 0618, 1432

Ellis Williams: W40, W446

Weatherford: 2100HDD, 2165HDD 2350HDD

Gardner Denver: the, TEE

these spare parts meet or exceed OEM specifications.

Other available mud pump model:

Emsco: F-350,F-500,F-650, F-800, F-1000,FD-1000, FB-1300, FB-1600, FA-1600, FA-1300, FC-1600, FD-1600,FC-2200D-300/500, D-175,D-225,D-375, D-500,D-550,DA-500,DB-500,D-700,DA-70,DB-700,DC-700,DA-850,DB-850,DC-850,D-1000,DB-1000,DC-1000,D-1000-A,D-1350,D-1650

National: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220,JWS-165-L, JWS-340, JWS-400,C-250,C-350,K-380,K-500-A,G-700,K-700,N-1000,N-1300,N-1600

Oilwell: 350-PT,A-650P-T,A-850-PT, A-1100-PT, A-1400-PT,A-1700-PT,HD-1400-PT,HD-1700-PT

Ideco:  T-500, T-800, T-1000, T-1300, T-1600,MM-450,MM-500-F,MM-600-A,MM-700-F,MM-1000

Gardner Denver: PZ-7, PZ-8,PZ-9,PZ-10, PZ-11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,TGE,TGF,TGH,PAH-275

 Wirth  : TPK1000, TPK1600, TPK 2000

Russian Pumps:UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,

Weathford /Ellis Williams:MP-5,MP-8,MP-10,MP-13,MP-16, E-447, E-2200, W446, W440

Drillmec: 7TS-600,8T-800,9T1000,10T-1300, 12T1600,14T-2200,10D2C, 8D1S

Upetrom: 3PN-1000, 3PN-1600, 3PN-1300, 3PN-2000

OPI: 350-D,350-GD,500-DC,700-HDL | 1000-HDL

Lewco/Ewco:W-250-C,WH440,W446,W600,WH600,WH770,W1100,WH1312,W1612,W1712,W2000,W2214,W2215

Brewster: B-1000-T,B-1100-T,B-1300-T,B-1600-T

Soilmec: 7T500,7T508,8T650

GASO/Wheatly:1550,1560,1563,1654,1742,1753,1874,1849,1860,2652
