Quick Details

Nominal Capacity: 400AH
Weight: 9.78
Size: 54*384*243mm
Usage: Starting
Brand Name: QH
Place of Origin: China (Mainland)

Specifications

Quick Details
Model QH-LFP54384243-400
Casing Material for Single cell Aluminum shell
Nominal Voltage 3.2V
Capacity 400Ah
Core size D54*W384*H243MM
Cell Weight 9.8kg
Charging Current Standard Charging:0.2C
Max Charging:1C
Max Discharging Rate Continuous Discharging:1C
Max Peak Discharging:1.5C
Cut-off Voltage Charging:3.65V
Discharging: 2.5V
Internal Resistance  0.5m (at 0.2C rate, 2.0V Cut-off)
Working Temperature Charging: -10~45
Discharging: -20~60
Storage Temperature 1month: -1045
3month: 030
6month: 205
Life Cycle >2000 times (80% of Initial Capacity at 0.2C rate, IEC Standard)

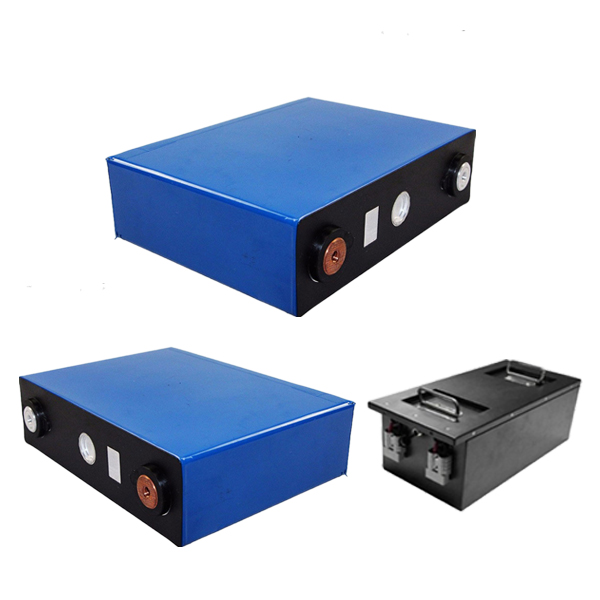

2000 Times Cycle LFP Battery Cells 32 Volt 400Ah Energy Storage

Energy storage
1.It can be applied to solar wind power system
2.the City power grid (on/off) is also applicable
It is also used for standby systems and joint packages.
Telecommunications base, cable TV system, computer server center, medical equipment, military equipment.
3.Other applications including:
Security and Electronics, Mobile POS, Miner's Lamp / Torch / LED lamp / Emergency Light

Characteristics of lifepo4 lithium ion battery

1. Transient pulse discharge (10s) to 20C.

2. Two good high temperature properties: the external temperature is 65C and the internal temperature is up to 95C

3. When the final discharge temperature of the battery reaches 160C, the structure of the battery is safe and the battery can withstand high temperature performance.

4. Even if the battery is damaged inside or outside, the battery will not burn, will not explode, and will not endanger life safety.

5. Excellent cycle life, after 2000, the discharge capacity is still greater than 95% A, and the capacity loss is small.

6. over - discharge to zero volt, no damage;

7. Fast charging

8. Low cost

9. Environment friendly, will not produce toxic substances, environmental protection

10. Application of lithium iron phosphate battery

(lithium iron phosphate batteries are widely used because of their characteristics and production of batteries of various capacities.)

11. High efficiency output: standard flow rate is 2 ~ 5C, large current continuous discharge to 10C.



Advantages:

L Lowest cost

L Fast delivery

L Superior quality

L Best after-sales service

L Memory free effect

L High energy density

L Long cycle life
