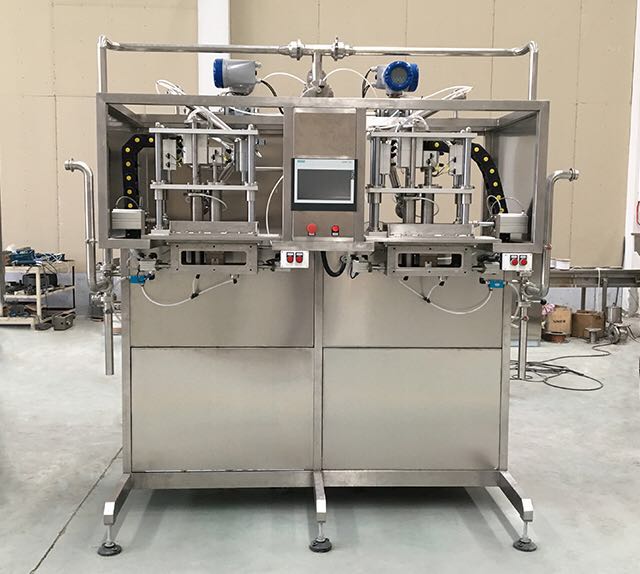

Automatic Bag in Box filling and capping machine

1.Machine Specification

this bag-in-box filling machine is specially designed for small bag-in-box package,adopting flowmeter measuring with high filling precision. and easy to adjust filling volumes. It is widely used for filling water, grape wine, edible oil. Juice, dairy, syrup, mayonnaise, seasoning  etc.

Features

1. this machine is mainly made of stainless steel, enjoy beautiful appearance. the parts that contact material are made of 304#/316L stainless steel and food grade soft pipe.

2. Full automatic finish filling pulling out the cap, vacuum pumping, quantitative filling, pressing the capping at one step.

3. Adopts flowmeter for measuring which is with high filling precision, Easy to adjust filling volumes.

4. this machine is with vacuum function, Enable to vacuum pumping before filling which helps to extend product shelf life.

5.A nitrogen system can be added according to the client's requirement;

6.the electric and pneumatic components are products of world-renowned brands with low failure rate, reliable performance and long service life.

7.It is controlled by PLC and touch screen with accurate precision and stable performance; match with CIP washing function.

Technical Parameter
Filling range	1-30L(adjust filling volume on the touch screen)
Working principle	Flowmeter to control
Filling precision	0.5-1%
Filling speed	400-500bags/h(for 1L) 180-200bags/h(for 5L)
Meterial entrance pressure	0.3-0.35Mpa
Power	0.38KW
Power supply	AC220V/50-60Hz
Air consumption	0.2m3/min
Working pressure	0.4-0.6Mpa
