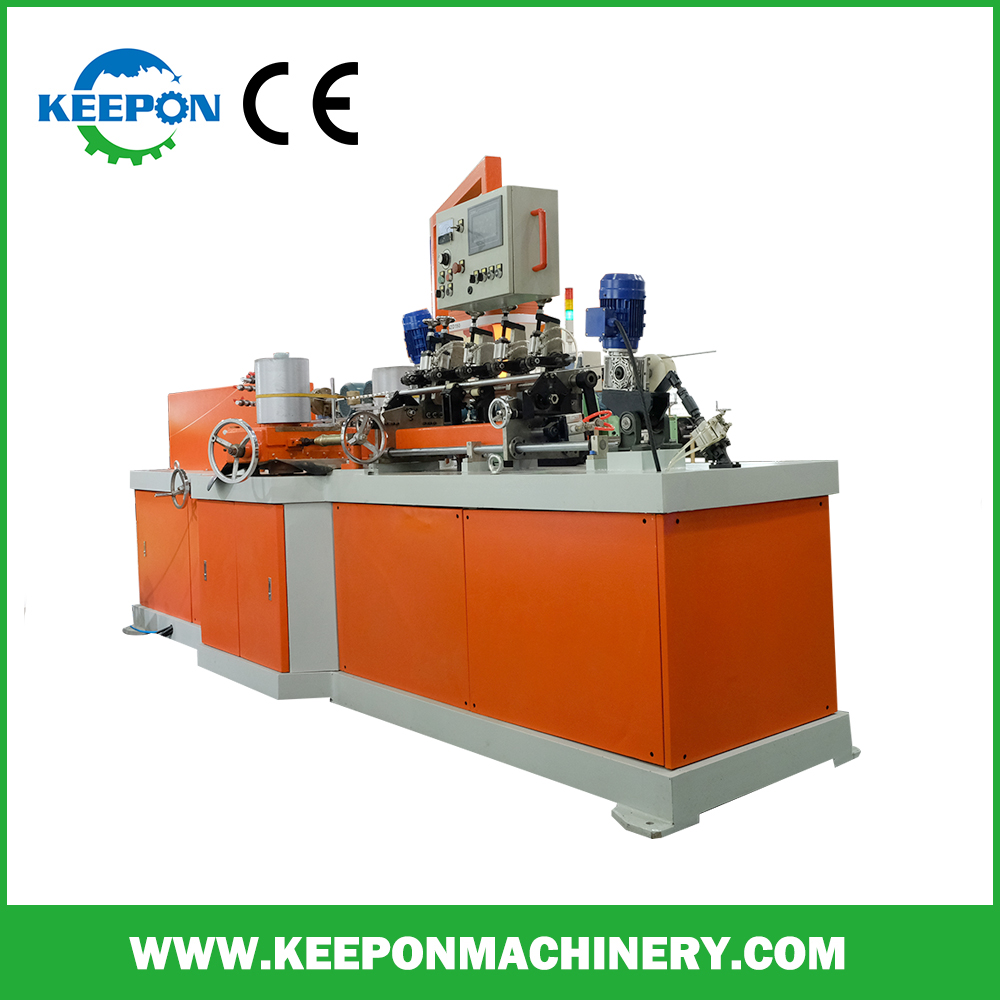

KJT-2DHMC Digital Control Paper Straw Making Machine with Multi-Knives Cutter

Machine main functions:
1.Adopt microcomputer for set the cutting length, and touch screen for parameter input, which ensure the precision.
2. Adopt Man-machine interface and hang type operating panel, this let theoperation more convenience.
3.Automatic-alarm and machine automatic stop when bottom-ply paper is broken; Avoiding glue adheres to mandrel and causing difficult to clear away
4.Use cross type paper reel stand connected structure, more sbtale and reduce the working area.
5.Adopt special roller for gluing, this makes lower request for paper quality, save the space, and it can adopt double sides gluing or single side gluing according the paper tube's hardness
6.Shrink type design for flanged shaft and cooperate with taper shaft, it can make paper tube inner diameter for micro-adjusting.
7.Servo motor controls the moving speed of in-line cutting part, synchronous with Tube production speed.
8.HMC multi knives cutting unit, with multi circular knives cut 5 pieces drinking paper straw at one time,this can ensure the cutting length precision, no need paper straw re-cutting.Save the time and labour
9.Equip one conveyor after cutting unit, transport the paper straw smooth.

Main technical parameter:

Tubeinner diameter	6-20mm
Tubethickness	0.8-2mm
Speed	1-20m/min
Cutting length	200-2000mm
Cutting knife	6sets
