Brand Name: | Trafag |
---|---|
Material: | stainless steel |
Color: | black and blue |
Packing: | 50*45*20cm |
usage: | under water |
Place of Origin: | United States |
Quick Details
Specifications

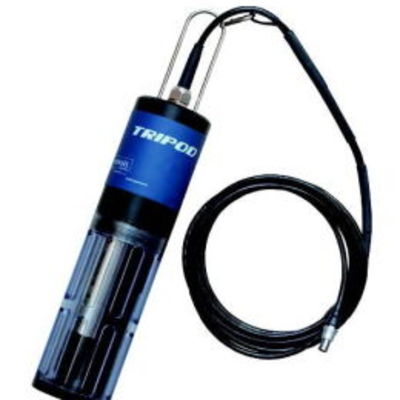

the Submersible Pressure Transmitter ECL is based on Trafag's own thick-film-on-ceramic technology. Together with the inhouse developed high performance ASIC chip electronics it ensures a high level of accuracy over a wide temperature range.
Good media compatibility
Economical
Cable PUR/PE or FEP
Lightning protection integrated
Specifications
Applications: Shipbuilding, Process technology, Water treatment
Category: Pressure transmitters
Accuracy @ 25C typ.: 0.3 % FS typ. Range 0 to 0.1, 0 to 0.4 bar: 0.5 % FS typ.
Measuring principle: Thick film on ceramic
Approval / conformity: GL, KRS
Vibration: 6G (25 to 2000 Hz)
NLH @ 25C (BSL) typ.: 0.2 % FS typ. Range 0 to 0.1, 0 to 0.4 bar: 0.3 % FS typ.
Pressure connections: Type 1 f, M 101, Type 2 m, M 221
Media temperature: -25C to +80C (+70C)
Shock: 50G/ 8 ms
Electrical connections: Cable PUR/FEP/PE
Long term stability 1 year typ.: 0.2 % FS typ.
Ambient temperature: -25C to +80C (+70C)
Sensor: Ceramic, Al2O3 (96 %)
Protection: IP68 (25 bar; 250m)
Output signal: 4 to 20 mA
TEB typ. @ -25 to +85C: 1.0 % FS typ. Range 0 to 0.1, 0 to 0.4 bar: 2.0 % FS typ.
Measuring range: 0 to 0.1, 0 to 10 bar
