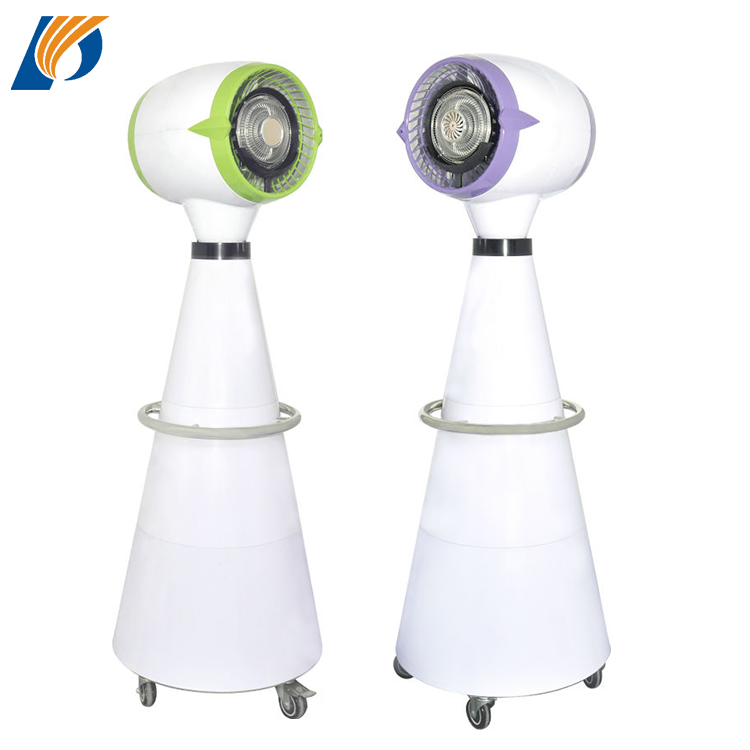

Roduct Name	Fine Workmanship Fair Price Carrier Chilled Coil Units Water Cooler Fan
Model No	A-4C
Products Color	Blue /Green/Purple/Black
Vol/Freq(V/Hz)	220~240V/50Hz or 110V / 60Hz
Power(Kw)	0.32kw
Rotation(r/min)	1400r/min
Noise (db)	67db
Volume(m3/h)	2450m3/h
Water Tank Capacity (L)	94L
Water Consumption	6-8 L/H
Effective Area(m)	95m
Oscillating Angle	90
NET Weight(kg)	58kgs
Size(mm)	700*700*2000mm
Occasions	Outdoor, restaurant, fair, cafe, garden, bus station, walking street, play ground, amusement park, or any place which needs cooling.

Features for the Water Cooler Fan:

•  the components for centrifugal misting type are reliable and durable
•  Low requirements for water source, no block, low maintenance cost
•  Innovative design with the high-tech feeling, various colors opition
•  Hierarchial structure, isolated operation of water and electricity to ensure the safety
•  the large-capacity water tank, provides 8 hours use with one fill, in addition, the automatic water inflow system offers long-term water supply
•  with easy moving on four universal wheels, it gives you a satisfaction on application in various environment

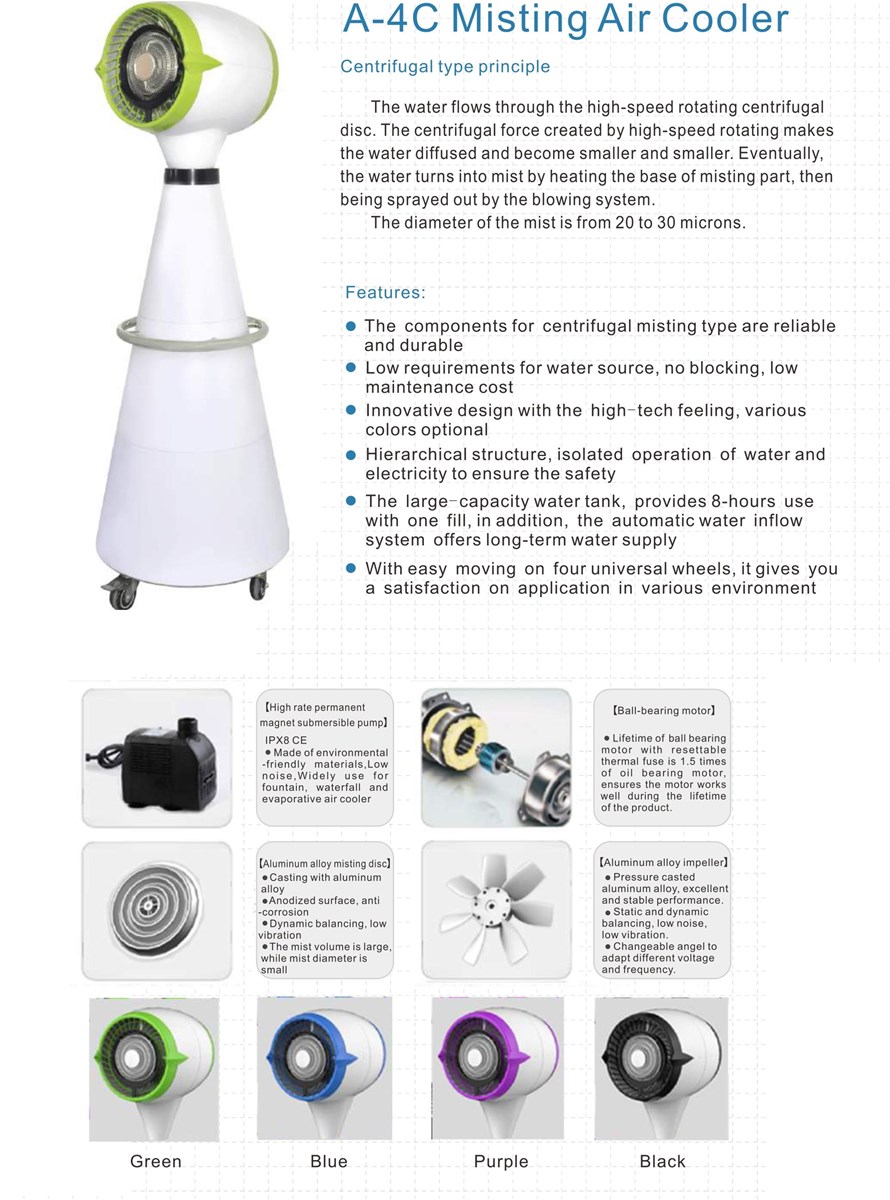

Centrifugal  Water Cooler Fan type principle:

the water flows through the high-speed rotating centrifugal disc. the centrifugal force created by high-speed rotating makes the water diffused and become smaller.  Eventually, the water turns into mist by heating the base of misting part, then being sprayed out by the belowing system.

the diameter of the mist is from 20 to 30 microns.

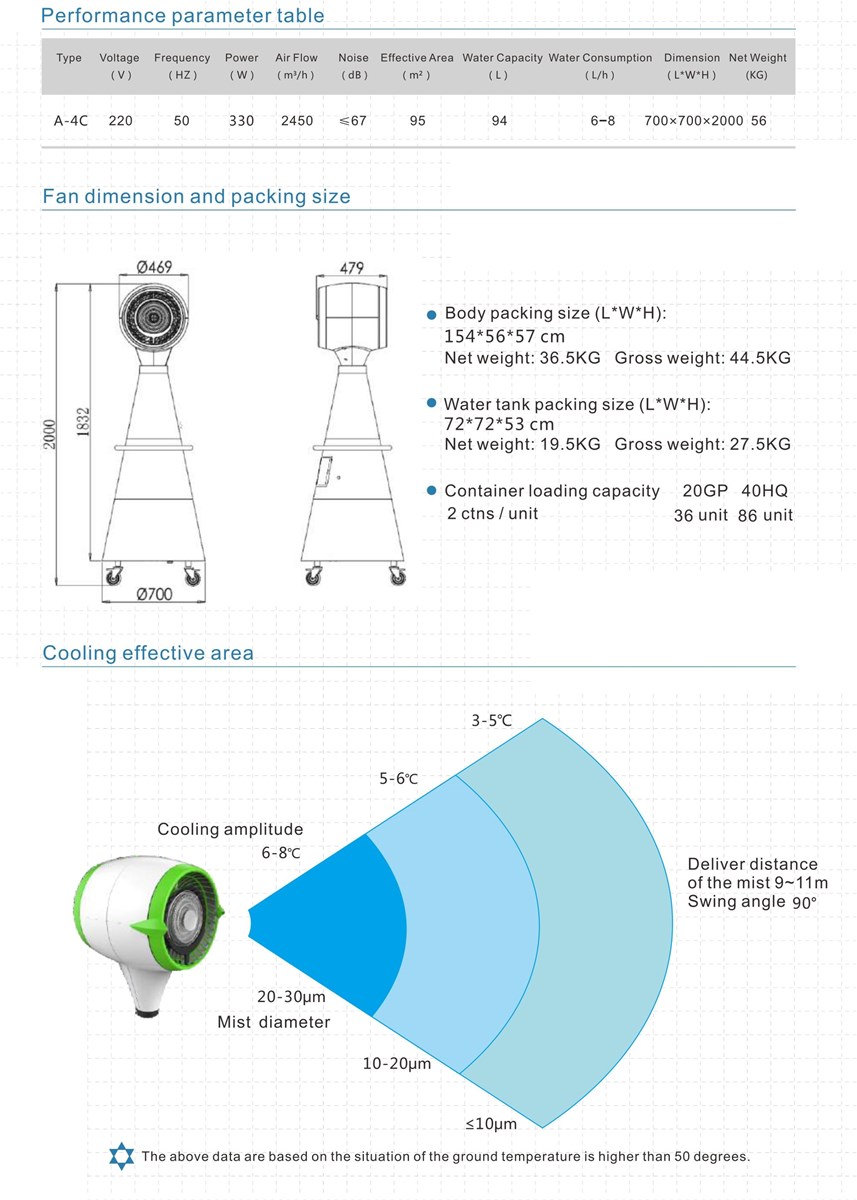

Our this Water Cooler Fan of A-4C model each part size and packing size for your reference  :

the cooling effective area could deliver distance of the mist 9 -11m swing angle 90 degree and decrease 3- 5or 5 - 6 or 6 - 8 based on the different distance

PS: the above date based on the situation of the ground temperature is higher than 50 degrees.
