After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Warranty: | 1 year |
Voltage: | 380V/3phase/50HZ |
Brand Name: | Allfine |
Condition: | New |
Weight: | 2000kgs |
Dimension(L*W*H): | 11000mm*6000mm*2000mm |
Power(W): | 7.7kw |
Model Number: | LC-PSM001 |
Quick Details
Specifications
Main Technical Parameters:
Number of roller |
1-5 layer |
Tube diameter |
5-8mm |
Tube wall-thickness |
0.3-1mm |
Cutting Length |
100-800mm |
Winding head |
2 |
Power |
7.7kw Main motor 3KW;Servo motor 1 KW,frequency inerter 3.7 kw |
Cutter |
5 sets |
Operator |
1-2 person |
Winding speed |
0-42meter/minuter |
Speed control |
Frequency |
Working Air Pressure |
0.6Mpa |
Power Supply |
380V/3phase/50HZ |
Measurement |
5600*1600*1750mm |
Working Space |
11000mm*6000mm*2000mm |
Weight |
2000kgs |
Specification:
Suitable for small diameter (5-8mm) paper tube production,such as paper straw,pen tube |
1.Machine adopts Siemens PLC control,all data can be display in touch screen. |
2.Numerical control servo cutter device,high precision cutting. |
3.Automatically cut, automatically fall pipe,automatically change speed and revert. |
4.Round knife cutting,incision more smooth,performance more stable. |
5.with online multi-cut blades,no need secondary cutting,save labor and time. |
6.Stainless steel guling box,with polyurethane scraper and high carbon steel plastic knife,durable in use. |
7. Machine adopts Flange for fix the mandrel. |
8. Machine supply of lubricant automatically. |
Driving system: | |
Main motor |
3 KW |
Servo motor |
1 KW (Yaskawa) |
Frequency inverter |
3.7 KW |
Control system: | |
PLC controller |
Siemens |
Touch screen |
Yes |
Fix length way |
Encode |
Operating Panel |
Xiankong |
Execute Components |
CHINT |
Signal Components |
Hugong |
Pneumatic Components |
Xingchen |
Electric Components |
CHINT |
Bearing |
Haerbin |
Screw Rod |
ABBA from Taiwan |
Slider |
ABBA from Taiwan |
Equipment device: | |
Paper shelf type |
Integral reel stand |
Auto fall tube shelf |
Have |
Glue shelf |
Have |
Belts |
2 |
Core mould |
1 |
Tool box |
1 |
Spare Knife |
10 pcs |

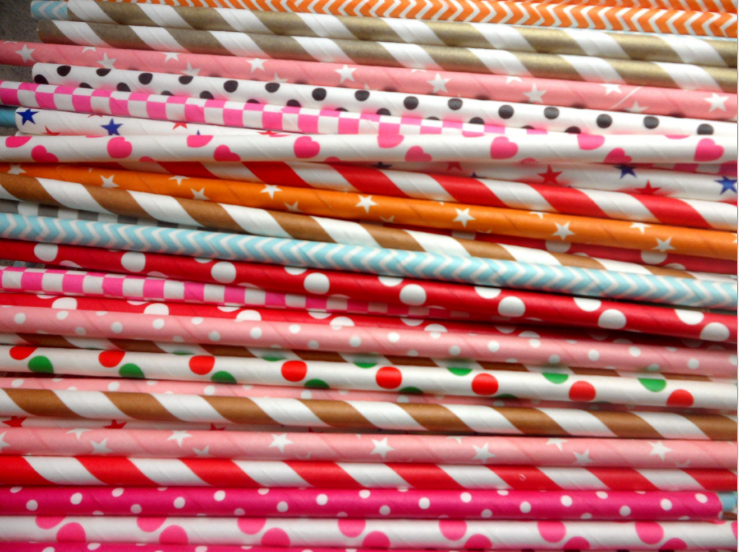

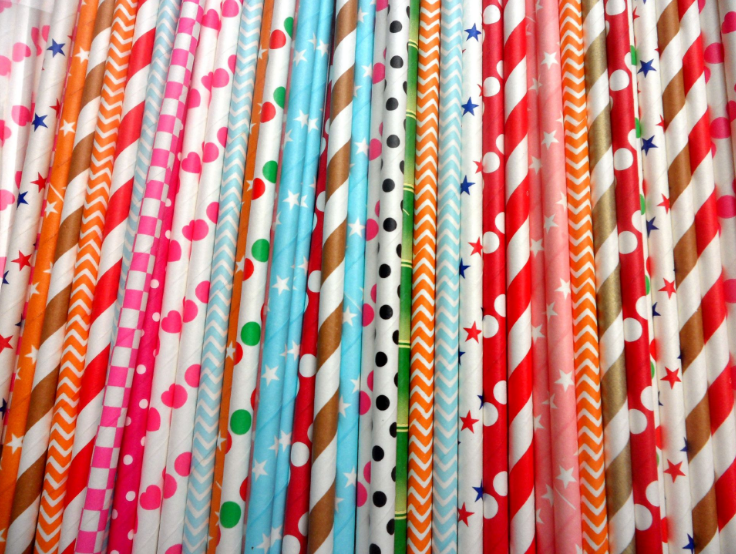

Sample picture:
