| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Voltage: | 380V |
| Brand Name: | Allfine |
| Condition: | New |
| Weight: | 1300kgs |
| Dimension(L*W*H): | 7200*4800*1500mm |
| Power(W): | 7.5kw |

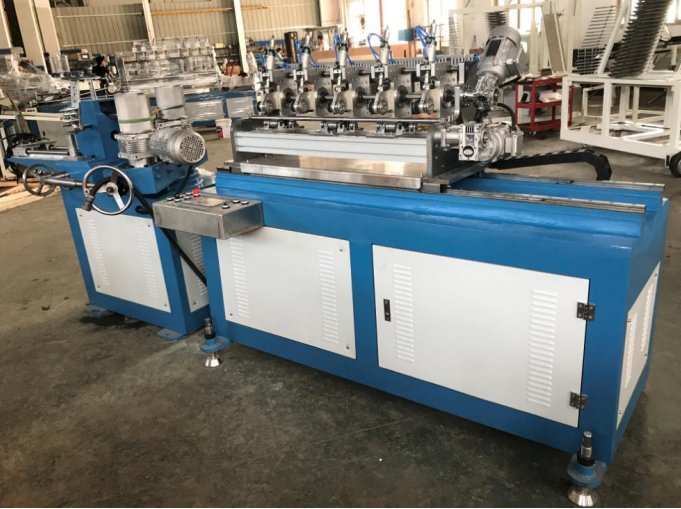

| Model Number: | LC-PSM002 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Use:

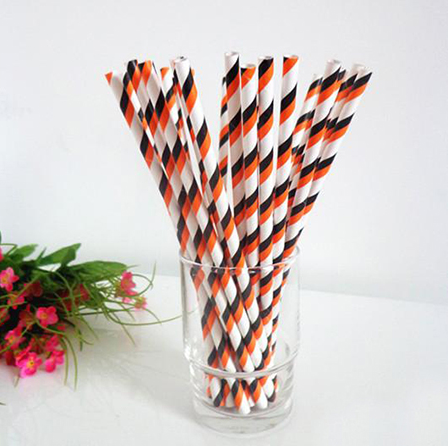

the machine is used for produce paper straw
Feature:
1. Adopt human-machine operation interface, more convenient for operation;
2. T Bar Paper reeling stand, Slitting rolls are easily placed into reel stand
3.Choose Single or double glue coating unit
4. Spiral winding part, specialized operation system, Belt tension device (hand-wheel driven)
5. Multi-knife System in-line cutting unit controlled by encoder.,Cutting final paper tube directly ,Servo motor control cutting system.
6. Option device: Full stainless steel or aluminium alloy body
Main technical parameter:
Inner Diameter |
5-10mm |
Roll of Paper |
2-3 Plies |
Thickness |
0.25-1mm |
Cutting Length |
100-820mm |
Hub Wheel |
Two Head |
Way of Fixing Shaft |
Clamp |
Production speed |
10-45m/Min (20-30 degree summer 20-45m/min, 0-10 degree Winter 10-25m/min ) |
Way of Cutting |
Circular Cutting Blade |
Way of Gluing |
Single / Double Side |
Type of Paper Reel Stand |
T-bar |
Blade |
5 Groups |
Paper Reel Stand |
6 Plies T-bar l Paper Reel Stand |
Glue System |
3 plies independent glue tank |
Main Motor |
1.5kwx2 CHINA XINLING |
Inverter |
3.7kw CHINA RIHONG |
Servo Motor |
0.85kw JAPAN YASKAWA |
Control System |
China |
Linear Guide System |
TAIWAN SHANGYIN |
Operator |
1-2 Persons |
Main Part Dimension |
3250*1100*1450mm |
Overall Dimension |
7200*4800*1500mm |
Weight |
1300kgs |
Way of Scraping Glue |
Independent Glue Box/Polyurethane Scraping Blade |
Moving Finished Paper Straw |
Automatically |
Lubricating Oil |
Automatic Giving |
