| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | ALLFINE |
| Automatic: | Yes |
| Blow Moulding Type: | Extrusion Blow Moulding |
| Condition: | New |
| Warranty: | 1 year |
| Certification: | CE |
| Weight: | 2.5Ton |
| Dimension(L*W*H): | 3000*2500*4200mm |
| Power(W): | 34kw |
| Voltage: | 380V |
| Model Number: | LC-40X2-700 |
| Place of Origin: | China (Mainland) |
| Application: | Film |
| Extrusion Output(Single):: | 45kg/h |
| Single-Sided Thickness Of Film:: | 0.01-0.10mm |
| Max Folding Width Of Film:: | 600mm |
| Range Of Die: | 100mm |
| Screw Speed: | 15-100r/min |

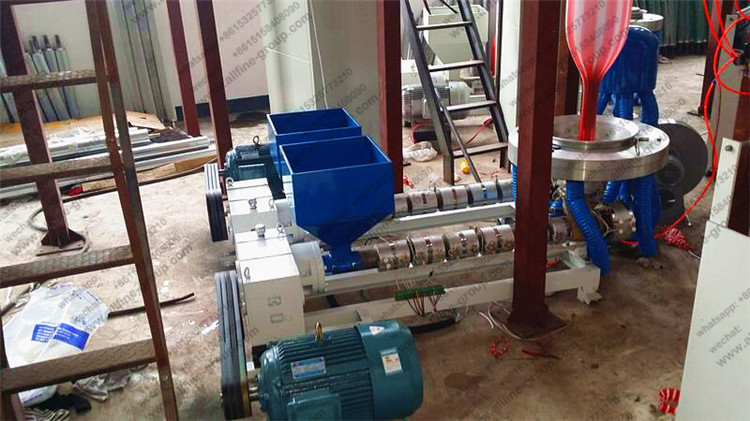

| Name:: | Double Color Strip Film Blowing Machine 600mm Max Folding Width Of Film |
Quick Details
Specifications
Double Color Strip Plastic Extruder Film Blowing Machine for t-shirt shopping bag
Main Technical Parameter
| Model | LC-402-700 |
| Screw Diameter | 402 |
| Screw Ratio L/D | 28:1 |
| Screw Speed | 15-100r/min |
| Main Motor Power | 18.5kw |
| Extrusion Output(Single) | 45kg/h |
| Range of Die | 100 |
| Single-Sided Thickness of Film | 0.01-0.10mm |
| Max Folding Width of Film | 600mm |
| Electric Total Capacity | 34kw |
| Overall Dimension | 300025004200 |
| Weight of Machine | 2.5T |
Feature:
Material of screw: Alloy steel 38CRMOALA,Wear resistance,72hour surface Nitriding, National standard
Barrel material:Alloy steel 38CRMOALA,Wear resistance,72hour surface Nitriding, National
Air ring: cast aluminium
Extruder
Screw Diameter:40mm2
Screw length and Diameter ratio (L/D ratio): 28:1
Screw rolling speed:15-100r/m
Cooling device power: 120wx2
Heating area:6 area
Screen change style:Manual
Heating power:18.5Kw
Main motor power:18.5kw A/C 3-phase 380V,50HZ, adopts Frequency inverter
Control
Die head
Diameter: 80
Heating power:2.0kw
Surface processing:Die head, die core are both hard chrome plated and polished
Traction
Traction motor:0.75kw 3-phase,380V,50HZ, frequency inverter control
Traction speed:10-60 m/min
Traction style:Pneumatic control, pressing roller press
Folding:installed with folding device, can manual adjust(M-fold)
Unwinding
Unwinding style:single winder (rubber roller friction style -2 station)
Speed control:Torque motor speed control
Unwinding roller type:Air shaft 2pcs
CONFIGURATION LIST
| NO. | NAME | REMARK |
| 1. | FILM BLOWING MACHINE | |
| 2. | EXTRUDER | |
| 3. | DIE-HEAD | |
| 4. | AIR RING | |
| 5. | BUBBLE STABLE FRAME | |
| 6. | V FRAME | |
| 7. | TRACTION SYSTEM | |
| 8. | REWINDING DEVICE with AIR SHAFT | |
| 9. | ELECTRICAL CONTROL SYSTEM | |
| 10. | TOWER FRAME | |
| 11. | AIR COMPRESSOR | |
| 12. | AIR FAN | |
| 13. | DIGITAL CORONA TREATMENT |
SPARE PART
| NO. | NAME | QUANTITY |
| 1. | AIR COMPRESSOR | 1SET |
| 2. | HEATING LOOPS | 2PCS |
| 3. | THERMOCOUPLE | 2PCS |
| 4. | CONTACTER | 2PCS |
| 5. | FILTER | 10METERS |
| 6. | TEMPERATURE CONTROL | 1PCS |
| 7. | RELAY | 4PCS |
| 8. | AMMETER | 1PCS |
| 9. | SWITCH | 5PCS |
| 10. | WIRE | 1SET |
| 11. | TOOL BOX | 1SET |
| 12. | AIR RIFILE for the AIR SHAFT | SEVERAL |
| 13. | AIR NOZZLE | SEVERAL |
HD Video link about LC-45 mini type film blowing machine
Https://youtu.Be/d1BY1mQprn0
HD Video link about LC-1500 PE film blowing machine extruder (1500mm width, export to Bangladesh)
Https://youtu.Be/ahjr26sz_aI
HD Video link about LC-50-700 film blowing machine
Https://youtu.Be/tiLDZY7ueWA
