| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | CE and ISO |
| Brand Name: | HongMing |
| Type: | Automatic Notching Machine |
| Condition: | New |
| Warranty: | Warranty |
| Weight: | 1500KG |
| Dimension(L*W*H): | 1990*1300*1350mm |
| Power(W): | 1.5KW |
| Voltage: | AC380V |
| Model Number: | HM-1200D/1200E |
| Place of Origin: | China (Mainland) |
| Computerized: |
Quick Details
Specifications
HM-1200D/E Automatic Notching Machine(Belt Feeder)
Features and functions:
HM-1200E Notching machine is for notching various types and models of gift boxes and paperboard boxes to make a beautiful appearance, upgrading the products to meet an ideal effect. All the deluxe boxes could not stand the outside grooves on the finished box bottom edge, thus, the inner groove could perfectly avoid this cosmetic issue. Our automatic notching machines could process over 8 tons of greyboard everyday.
this machine needs an operator to feed the grayboard, which means munual feeding.

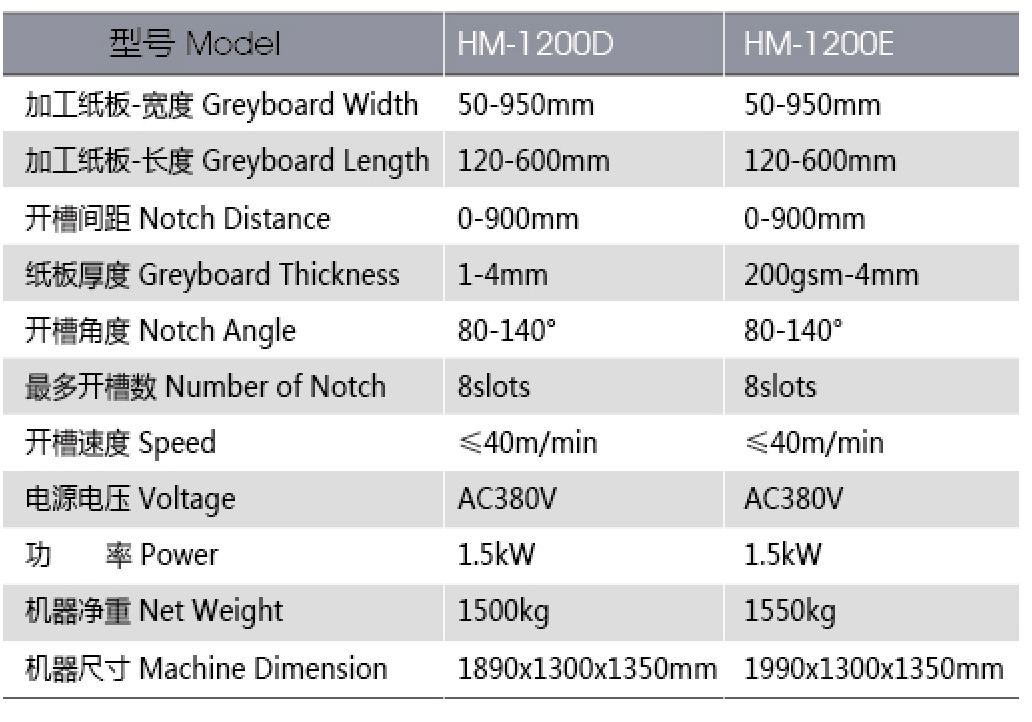

Technical Parameters:
Model |
HM-1200E |
1200D |
Cardboard Width |
50-950mm |
50-950mm |
Cardboard Length |
120-600mm |
120-600mm |
Notch Distance |
0-900mm |
0-900mm |
Cardboard Thickness |
200gsm-4mm |
1-4mm |

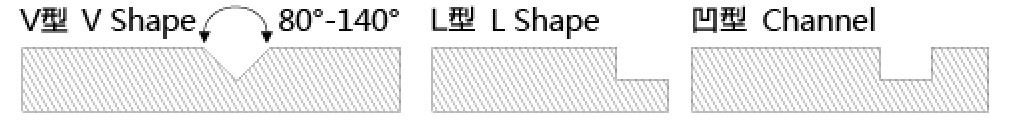

Notch Angle |
80-140 |
80-140 |
Max. Number of Slots |
12 slots |
8 slots |
Roller rolling speed |
40m/min |
40m/min |
Voltege |
AC380v |
AC380v |
| Power | 1.5kw | 1.5kw |
Net Weight |
1500kg |
1500kg |
Overall demension |
199013001350 mm |
189013001350 mm |
Package details:
Model |
Name |
Wooden case |
N.G (kg) |
G.G (kg) |
L(m) |
W(m) |
H(m) |
Total CBM |
HM-1200E |
Notching Machine |
1 |
1200 |
1300 |
1.54 |
1.35 |
1.68 |
3.49 |
