Product Main

Quick Details

Use: House,Office
Material: Sandwich Panel
Brand Name: MT
Size: 20 feet container house
Color: White
Place of Origin: China (Mainland)
Type: Expandable container house
Structure: Light steel frame
Materials: Steel, Sandwich panel,
Size: 6000*3000*2700MM
Roof and wall panel: EPS/Rock wool/Glass wool sandwich panel
Performance: water proof, heat insulation, sound insulation
Connection: Bolt connection
Door: Stoving varnish door
Window: Aluminium alloy window
Storeys: 1-2 storeys

Specifications

 High Quality Expandable Container house for office or accommodation
High Quality Expandable Container house for office or accommodation



Expandable container house is a new generation of prefab house. It is a whole unit itself, which can be used as a single portable house, or combined laterally or stacked it to two or three floors. Detached container house can be connected by bolts, with easy installation and fast transportation. Life span is about 15-20 years.





PRODUCT DETAILS



No.

    Description

Specification

1

Pillar

Galvanized Z type steel 160*160*2.5MM

2

Bottom stringer beam

Galvanized Z type steel 160*160*2.5MM

3

Top stringer

Galvanized Z type steel 160*160*2.5MM

4

Bottom transverse beam

Galvanized Z type steel 160*160*2.5MM

5

Top transverse beam

Galvanized Z type steel 160*160*2.5MM

6

Bottom crossband

Galvanized square tube 80*80*2.5MM or 80*40*2.5MM for optional

7

Top crossband

Galvanized square tube 80*40*2.5MM, 60*40*2.5MM,or 40*40*2.5 for optional

8

Exterior wall panel

50MM color steel sandwich panel(steel sheet thickness 0.3mm)

9

Inner wall panel

50MM color steel sandwich panel(steel sheet thickness 0.3mm)

10

Top wall board

0.3MM color steel ceiling board+ 50MM glass wool+0.5MM color steel sheet

11

Bottom board

15MM cement fiber board 15MM

12

Door

Stoving varnish door

13

Window

Aluminium alloy anti-theft window 925*1200mm



Technical parameters:

Roof load: 1.0kn/M2

Flooring load: 2.5kn/M2

Snow load: 1.0kn/M2

Wind load: 90KM/H(25M/S)

Fire proof A1 grade, Mineral wool A1 grade, PU B2 grade, EPS,B1 grade.

Wall side stress0.8kn/M2

Wall deformation 0.65kn/M2

Sesmic grade 8-magnitude

Sound insulation 33-44db





Our Service:



Miteng recommend suitable prefabricated house based on customer's drawing; or Customer give a general idea for the project, then MiTeng offer unique design and drawing.



for installation, MiTeng could provide video and installation instruction. If necessary, MiTeng could arrange the technical person to go aboard to guide.



MiTeng is professional in accurate hole position and the bolts connection.



Trust First, Quality First, One-step service.



Company profile



MiTeng Is located in Zhongshan city, Guangdong provice, and we specialize in prefabricated house, container house, light steel building(such as workshop, warehouse and construction temporary fence wall etc), Light steel villa, Securty box and Mobile toilet etc.



We have rich experience in designing, producing and installation, and our main market is domestic, in recent years,we are keeping enlarging our business for aboard. the prefabricated house is fireproof, warer proof, sound-insulating, earthquake resistant, corrosion resistant etc. It's large used in the field of temporary building, warehouse, stdium, exhibition etc.



Due to our good quality and excellect service, our products are Get good reputation by our customers in regions inside and overseas. MiTeng expect to work with you together in future to create a better tomorrow.



Factory photos

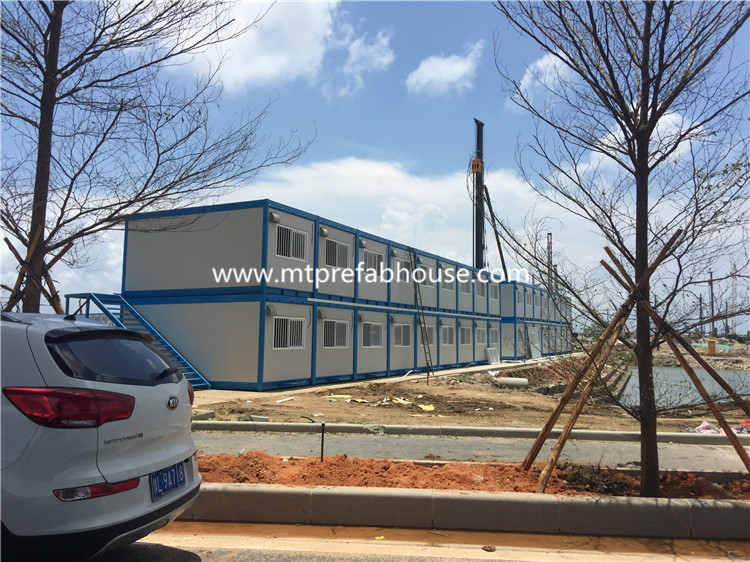

 High Quality Expandable Container house for office or accommodation




FAQ:



Q: Are you a factory or trading Company?

A: We are manufacturer with 15 years experience in prefab house industry. Our office is located in Torch High-Tech Industrial Development Zone, Zhongshan City for sales and export, and our factory is in Sanjiao Town, Zhongshan city, Guangdong. You are welcome to visit our factory any time.



Q: how about your delivery time?

A: the delivery time for Prefab house K system need around 10-15 days; for special T house and Container house, it need around 25 days; for unique light steel villa, it need around 25-30 days.



Q: What's the minimum order?

A: Prefab house: 100 m2, Container house: 3unites, Steel structure: 200 m2; Villa house: 100m2



Q: What's your package?

A: They will be loaded into shipping containers in bulk with suitable safety package.



Q: how we assemble the house?

A: We will provide customers installation video or installation instruction. We also can arrange technicians to help customers if necessary.
