Use: | Metal Drilling |
---|---|
Material: | Tungsten Carbide |
Type: | Core Drill Bit |
Brand Name: | YH |
Color: | Bright, TiN |
Place of Origin: | China (Mainland) |
shank: | Weldon, One Touch |
size: | 1 3/8"(35mm) |
Quick Details
Specifications
- Features:
1. Superior quality
2. Durable in use
3. Dependable performance
4. Complete in specifications

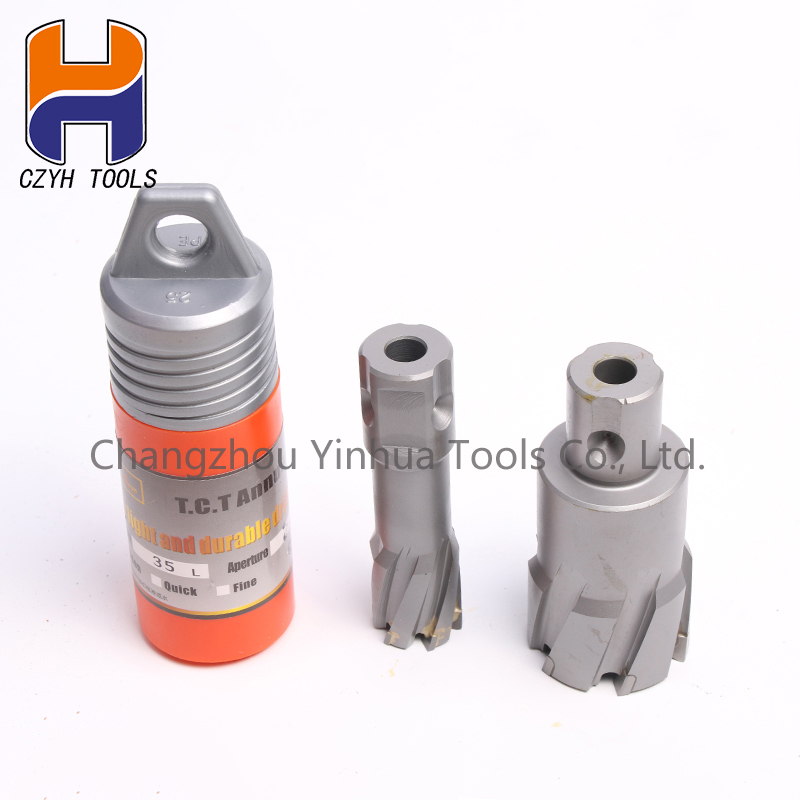

- TCT Annular cutter with Weldon shank, the diameter of shank is 19.05mm, which is suitable for two-point perpendicular positioning loading and unloading. Weldon shank, suitable for all types of magnetic drills like Hougen, Jancy, Nitto, Alfra, BDS, Ruko, Rotabroach
TCT Annular cutter with one-touch shank, the diameter of shank is 19.05mm, which is suitable for Quick-change arbor connector with 120three-point positioning and arbor connector with 90two-point perpendicular positioning. One-touch shank, suitable for all types of magnetic drills like Hougen,Jancy,Nitto,Alfra,BDS,Ruko,Rota broach
TCT Annular cutter with FEIN Quick-in shank, the diameter of shank is 18.0mm, which is suitable for 90 distribution at 4 locationg holes. FEIN Quick-in Shank, suitable for FEIN magnetic drills.
TCT annular cutter can be used on magnetic drilling presses, drilling machine and electric drill in rotary mode and all kinds of drilling presses with all types of shank
Changzhou Yinhua tools Co.,Ltd. Is established in 2010, located in China Changzhou Xixiashu Industrial Park where is famous for manufacturing tools. Our company is a professional cutting tool manufacturer which specializes in R&D and manufacture high-quality cutting tools and related accessories.
Our main products are: TCT and HSS Annular cutter, rail cutter, left hand drill bit, twist drills,High speed steel and cemented carbide cutter, Hole working cutters, Hex Shank HSS Subland Step Twist Drill Bit, Solid Carbide Drill, Solid Carbide End Mills, Step Drill Bit, etc.
Our materials: cemented carbide, M42, M35, M2AL and M2.the products are suitable for the alloy steel, stainless steel, adjust the quality hardened steel, nonferrous metals,etc.
We can also handle customizie non-standard tools.
Your any requirement will receive our prompt and careful attentions. If you are interested in our products, please contact us directly. We are looking forward to receiving your inquiry.
Metric | |||||
Dia(mm) | Cutting Depth(mm) | Dia(mm) | Cutting Depth(mm) | Dia(mm) | Cutting Depth(mm) |
12 | 35 | 30 | 35 | 48 | 35 |
13 | 35 | 31 | 35 | 49 | 35 |
14 | 35 | 32 | 35 | 50 | 35 |
15 | 35 | 33 | 35 | 51 | 35 |
16 | 35 | 34 | 35 | 52 | 35 |
17 | 35 | 35 | 35 | 53 | 35 |
18 | 35 | 36 | 35 | 54 | 35 |
19 | 35 | 37 | 35 | 55 | 35 |
20 | 35 | 38 | 35 | 56 | 35 |
21 | 35 | 39 | 35 | 57 | 35 |
22 | 35 | 40 | 35 | 58 | 35 |
23 | 35 | 41 | 35 | 59 | 35 |
24 | 35 | 42 | 35 | 60 | 35 |
25 | 35 | 43 | 35 | 65 | 35 |
26 | 35 | 44 | 35 | 70 | 35 |
27 | 35 | 45 | 35 | 75 | 35 |
28 | 35 | 46 | 35 | 80 | 35 |
29 | 35 | 47 | 35 | 85 | 35 |
IMPERIAL/Inches | |||||
Dia | Cutting Depth | Dia | Cutting Depth | Dia | Cutting Depth |
7/16 | 1-3/8" | 1-1/4 | 1-3/8" | 2-3/16 | 1-3/8" |
1/2 | 1-3/8" | 1-5/16 | 1-3/8" | 2-1/4 | 1-3/8" |
9/16 | 1-3/8" | 1-3/8 | 1-3/8" | 2-5/16 | 1-3/8" |
5/8 | 1-3/8" | 1-1/2 | 1-3/8" | 2-3/8 | 1-3/8" |
11/16 | 1-3/8" | 1-9/16 | 1-3/8" | 2-1/2 | 1-3/8" |
3/4 | 1-3/8" | 1-5/8 | 1-3/8" | 2-9/16 | 1-3/8" |
13/16 | 1-3/8" | 1-3/4 | 1-3/8" | 2-5/8 | 1-3/8" |
7/8 | 1-3/8" | 1-13/16 | 1-3/8" | 2-11/16 | 1-3/8" |
15/16 | 1-3/8" | 1-7/8 | 1-3/8" | 2-3/4 | 1-3/8" |
1" | 1-3/8" | 1-15/16 | 1-3/8" | 2-13/16 | 1-3/8" |
1-1/16 | 1-3/8" | 2" | 1-3/8" | 2-7/8 | 1-3/8" |
1-1/8 | 1-3/8" | 2-1/16 | 1-3/8" | 2-15/16 | 1-3/8" |
1-3/16 | 1-3/8" | 2-1/8 | 1-3/8" | 3" | 1-3/8" |
