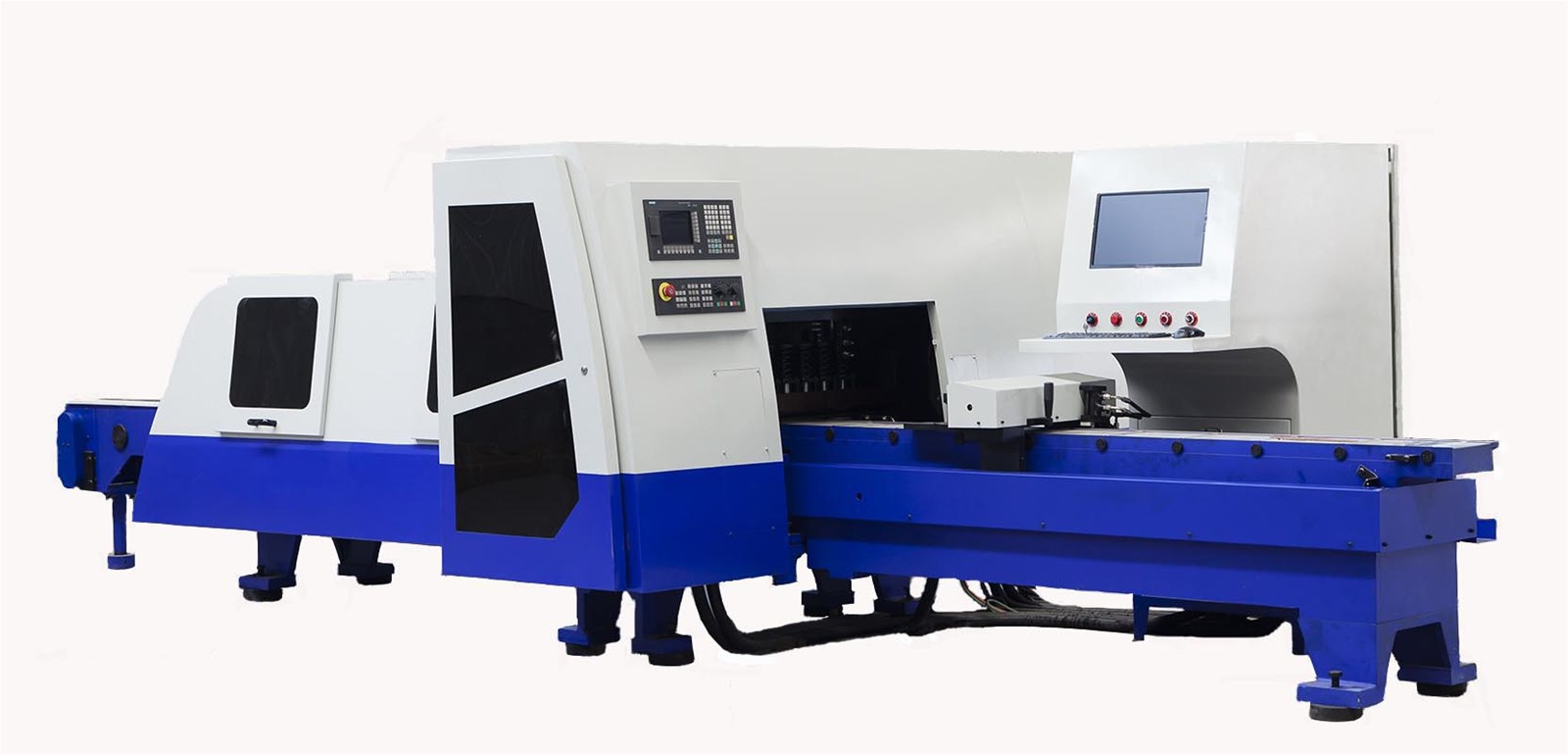

CNC punching cutting machine is a high efficiency,high precision machine controlled by computer,the machine can complete various processing techniques of punching holes (round holes, long round holes, etc.), embossing, cutting, slotting, cutting round corners, etc.CNC-BP series
1.CNC punching cutting machine is a high efficiency,high precision machine controlled by computer,the machine can complete various processing techniques of punching holes (round holes, long round holes, etc.), embossing, cutting, slotting, cutting round corners, etc.
2.the machine adopts Siemens 808D CNC standard system.SH computer controlsoftware of busbar machine can automaticallytransform the standard CAD drawing workpiece into machine code of Siemens numerical control system without manual intervention.
3.the machine can automatically process cooper or 3*15(thickness * width).
4.the hydraulic main and assistant double clamp and the clamp can automatically change. that can provide the machining precision and work efficiency.
5.Automatic draging (push material) system can push off the finished workpieces.
6.Large die library, cutting surface is smooth without indentation.Die material is high performance alloy steel mold, quenching process is advanced, the processing level is high and long service life.
Items |
Units |
Parameters | |||
Force |
Punching Unit |
KN |
400 | ||
Shearing Unit |
KN |
500 | |||
Embossing Unit |
KN |
500 | |||
Max. location speed of X-axis |
m/min |
48 | |||
Max. stroke of X-axis |
mm |
2000 | |||
Max. stroke of Y-axis |
mm |
530 | |||
Max. stroke of Z-axis |
mm |
350 | |||
Stroke of beat cylinder |
mm |
45 | |||
Beating frequency |
HPM |
60 | |||
Die bits |
Punching die |
Set |
5 |
7 | |
Shearing die |
Set |
1 |
1 | ||
Embossing die |
Set |
1 |
0 | ||
Control axes |
|
3 | |||
Pitch control accuracy |
mm/m |
<0.10 | |||
Max. punching diameter |
mm |
34 | |||
Max. embossing area |
mm2 |
16060 | |||
Max. allowable plate (LWT) |
mm |
600020015 | |||
Total weight |
Kg |
5800 | |||
Host area :LW |
mm |
84003500 | |||
Max. hydraulic pressure |
Mpa |
35 | |||
Total power |
KW |
12 | |||
