| Brand Name: | INWIN |
|---|---|
| Material: | steel |
| Fiberglass duct rodder: | 98 |
| HRC: | 89 |
| Lmpact: | 88 |
| Model Number: | BM303-S-8P |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

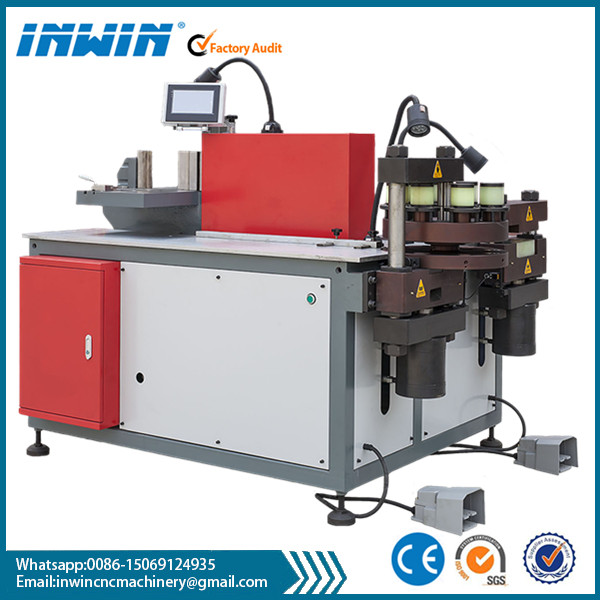

Busbar punching cutting bending machine BM303-S-8P
Function f the equipment has punching, shearing, bending embossing and so on. Three units can woke at the same time. Angle of bending adopt CNC method. Punching and shearing adopt O structure.Press of punching and shearing is 350KN.
CHaracteristics
1. Equipped NC control of bEnding angle makes the bending work easy and accurate. THrough changing die ,it can bend
level bending and vertical bending.
2. the punching unit has turret die library, it maximally can hold 8(punch die and emboss die). Punching and shearing oil cylinder Is 125 Mm. Pressure Is 35 tons.
3. the shearing adopts punching shear. VErticality of transverse plane can be ensured.
4. PLC control , the hydraulic oil-filling and releasing is done automatically .
Main configuration:
Dimension of platform (mm) |
WEight (Kg) |
MOtor |
TOtal power (KW) |
VOltage (V) |
NO. hydraulic station and specification (Mpa) |
COntrol method |
LAyer 1:1500X1200 LAyer 2:840X370 |
1460 |
4 |
11.37 |
380 |
3 X31.5 |
PLC +Angle numerical Control |
Main parameter
Punching unit | ||||||||
Items |
Unit |
Material |
Thickness |
Max.Punching | ||||
PUnching capability |
mm |
Copper/aluminum |
12/12 |
32 | ||||
MAx. pressure |
KN |
350 | ||||||
STroke |
mm |
50 | ||||||
Shearing unit | ||||||||
Items |
Unit |
Material |
Thickness |
WIdth | ||||
SHearing capability |
mm |
Copper/aluminum |
12/12 |
160/160 | ||||
MAx. pressure |
KN |
350 | ||||||
STroke |
mm |
50 | ||||||
Bending unit | ||||||||
Items |
UNit |
MAterial |
THickness |
WIdth |
BEnding accuracy | |||
BEnding capability |
mm |
Copper/aluminum |
15/15 |
160/160 |
0.5 | |||
MAx. pressure |
KN |
350 |
Max.Vertical bending WIdth *Thickness=100*10mm | |||||
STroke |
mm |
240 | ||||||
