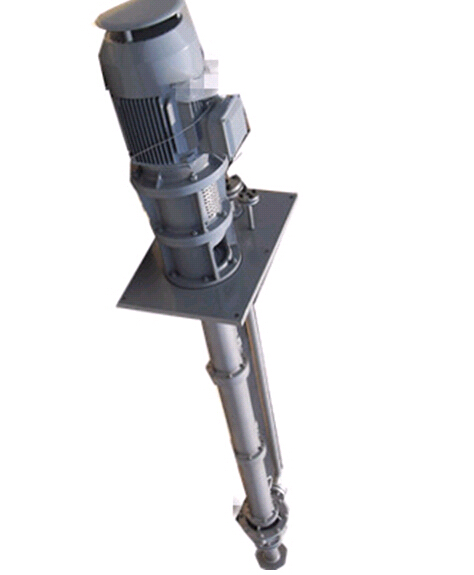

Name	TLY-type axis liquid submerged pump
Performance data	Capacities:2 to500m3/h Heads:5-100 Pressures: 1.6Mpa Operating Temperatures:-20 to +250
Application	Handling of neutral or corrosive,clean Liquids or liquids containing solids, hydraulic over-current components can Use various corrosion-resistant materials to apply to the needs of different Media. It is used in wastewater treatment, chemical, steel works, mill, paper , fabrics, cement, power, Refinery and Other petro chemical industries.
Types	It can be divided 4 types: closed Impeller(TLYW), semi-open impeller(TLYO),open impeller(TLYE),and cyclone Impeller(TLYF).







Basic Info

Impeller Number: Single-Stage Pump Working Pressure: Middle Pressure Pump Influent Type of Impeller: Single Suction Pump Position of Pump Shaft: Vertical Pump Export Markets: Global

Additional Info

HS Code: 81437090 Production Capacity: 1000sets/Year

Product Description

Name: TZA-L axis liquid submerged pump

Standard: API610 VS4



Application:

JGLY series pump is designed for most Liquid transportation such as various cleaning or contain the solid particle Liquid, the normal temperature or high temperature liquid, neuter or corrosive Liquid etc. the pump can be used on opening sump pool or closed pressure Container.



in refineries

Petrochemical industry

Sewage treatment factory

Steel plant

Electric power plant

General the JGLYseries  Is  vertical,   single  stage,   single  suction  Suspend  pump  with  separate  discharge.   the  Pump  is  designed  according  with  API  610  standards,   for  normal  VS4  pump  type.

Application

  JGLY  Series  pump  is  designed  for  most  Liquid  transportation  such  as  various  Cleaning  or  contain  the  solid  particle  Liquid,   the  normal  temperature  or  high  Temperature  liquid,   neuter  or  corrosive  Liquid  etc.   the  pump  can  be  used  On  opening  sump  pool  or  closed  Pressure  container.

in  refineries

Petrochemical  industry

Sewage  treatment  factory

Steel  plant

 Electric  power  Plant

Performance  Range       Discharge  Branch      DN:           25~400mm

Capacity Q: ~2600m3/h

Head : ~260m

Pressure : 1.6MPa  (2.5MPa  When  the  higher  head)

        Temp T: -20~450  degree

Symbol

        Symbol  of  centrifugal  submersible  pump

Symbol  of  non-block  Submersible  pump

JGLY O    40  -  200      GM                                                        100      JGLY     W    70  -22    GM

1  Series  name  6  Rated  capacity(m3/h)

2  Impeller  type: 7  Rated  head(m)

N(or  non)-Closed  impeller    O-Half-open  impeller

2*  W-non-block  impeller

        F-Disc  Impeller        E-Open  impeller

3  Discharge  branch  Diameter  (mm)

4  Nominal  impeller  Diameter  (mm)

5  Derived  type:   According  to  temperature  and  seal  type,   as  below:



Design

Characteristic

Hydraulic  Design:   Various  hydraulic  design  can  be  suitable  for  great  majority  conditions.

Line  shaft  coupling:   Safety  and  reliable  line  shaft  coupling  Ensure  the  pump  running  stability.

Casing:   Double  volute  Casting  (above  80  mm  branch  size),   to  be  able  to  balance  a  radial  Force  to  decrease  the  shaft  deflection  and  plain  bearing  wearing,   and  to  Increase  the  pump  life.

Support  structure:   Multiple  Spot  supporting,   the  max  spacing  between  Shaft  bushings  will  be  able  to  Accords  with  the  API610  standard  Figure  32;   Rolling  bearing  adopt  grease  lubrication  Or  oil  lubrication ,   Bushings  can  be  Lubricated  by  liquid  pumped  or  liquid  Outside  according  to  the  medium.

Shaft  seal:   According  to  condition,   v-ring,   packing,   mechanical  Seal  can  be  selected.   the  dimension  of  seal  chamber  is  according  with  API  682,   and  single  seal,   double  seal  and  tandem  seal  all  can  be  selected.

Structure:   Various  Structures  to  be  suitable  for  different  Severe  operation  condition.

Rotation:   the  rotation  Direction  is  clockwise  seen  from  drive  end.
