| Brand Name: | CANWIN |
|---|---|
| Rated Voltage: | 380V |
| application: | Transformer |
| Material: | Silicon steel coil |
| name: | Cut to length line |
| Model Number: | CAH(11)-400D |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

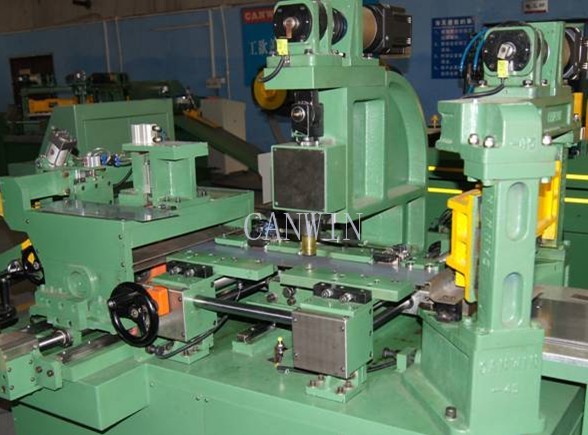

Servo Motor Punching Step-lap Cut to length machine
Step punch cut to length line
Model:CAH(11)-400D
CNC control system
the equipment control and programming of software is CNC DELTA machining center, CNC control is relatively stable, and more powerful, long service life.
Other manufacturers in order to reduce the cost of equipment, usually lay particular stress on maximizing profits, and ignore the value of the equipment itself truly. Choose cheaper domestic goods in terms of electrical components and control using PLC programming. Compared with PLC and CNC, the price is relatively cheap, but signal transmission is slow and easy to cause signal loss. CNC pulse signal transmission is very fast and stable, with high quality low voltage electrical components for software control of the machine is absolutely reliable.
the main technical parameters
A. Processing range:
Thickness: 0.23 -0.5mm
Width: 40-400mm
Length: 400-1500mm
B. Require for coil:
Width tolerance: 0.1mm
Burr: 0.03mm
S deviation between 2000mm, 0.2mm
C. Precision:
Length tolerance: 0.2mm
Angle tolerance: 0.025
Burr: 0.03mm
D. Feeding speed: 2500mm/s
E. Knife life:
Cutter can use at less 1 million times each grinding, hard alloy material.
F. Total installed capacity: about 10Kw
G. Total gas consumption: 0.2M/min
H. Working condition:
(1) Temperature less than 40C;(2) Voltage fluctuation 380V10%;(3) Frequency 50Hz
