CNC Tapping Machine Features:

    CNC Tapping Machine use Meehanite casting for the machine body with ribs-reinforced structure, which can provide strong anti-vibration performance and no deformation. the saddle box design in the machine base can provide X Axis move rigidity. In order to gurantee higher accuracy and backlash free operation.



    in order to achieve 60m per minute traverse speed without deformation, the machine column is designed with super-size. the machine can provide powerful cutting capacity with excellent precision, which make tapping easy. the machine structure is much more reliable for heavy loading support.



    Some diversified and flexible automation technologies are also introduced into the machine, which can bring high efficient processing.

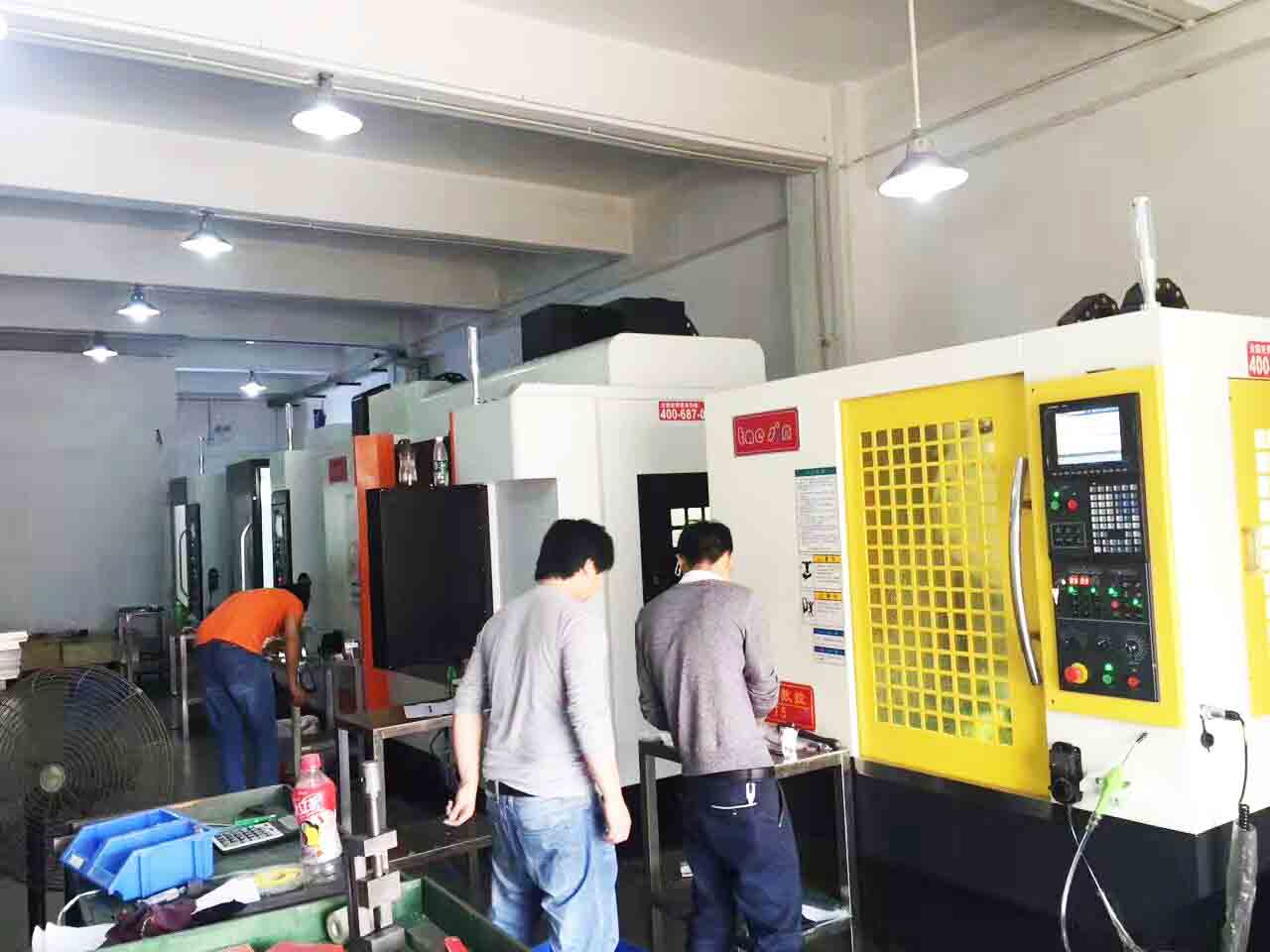

 for the CNC Tapping Machine, we also do strict inspecting and check in the factory:

 When doing inspection, we insist on the principle "Strict inspection and testing can bring reliable quality"

BallBar roundness detection

Workbench hardness testing

Laser testing

Geometric precision detection of parallelism between work table and X axis guide way

Deflection measurement of spindle center lineMachining testing before EXM and make sure the quality of the machine tool can accept the actual test

Three dimensional detection

Dynamic balancing machine detection



Taesin CNC Tapping Machine Core Components:

Japan Mitsubishi, Fanuc or Germany Siemens CNC control system
Japan Mitsubishi, Fanuc or Siemens spindle motor, 3 axes motor
Taiwan Famous Brand Spindle
Taiwan HIWIN and PMI Guideway and Ball Screw
Taiwan Famous Brand 24T Arm Type Tool Magazine
Japan NSK Bearings



Vertical CNC Tapping Machine Technical Data:

Project	unit	T5	T6
Work table size	mm	400X650	700X420
T slot(Qty--size*distance)	mm	3-14X100	3X14X125
Max load	kg	250	250
3 axis travel	mm	500/400/300	600/400/300
Spindle to work table	mm	150-450	150-450
Spindle to column	mm	375	400
Spindle taper		BT30	BT30
Spindle diameter	mm	90	90
Max speed of spindle	rpm	20000(12000ro5000)	20000(12000or150000)
3 axis cutting and feeding speed	Mm/min	1-12000	1-12000
X/Y/Z rapid traverse rate	m/min	60/60/60	60/60/60
Positioning accuracy	mm	0.003/300	0.003/300
Positioning accuracy repeat	mm	0.0025	0.0025
Spindle motor power	kw	5.5	5.5
X/Y/Z drive motor	kw	1.5/1.5/2.2(3)	1.5/1.5/2.2(3)
X/Y/Z ball screw		25mm/16mm	25mm/16mm
Water cutting motor	w	700	700
Tool magazine		BT30 16(21)Tool magazine	BT30 16(21)Tool magazine
Area covered	mm	1900X2700X2400	2300X2900X2500
Tank capacity	L	110	110
Weight	T	3	3
