| Brand Name: | Video Processor |
|---|---|
| Frequency Response: | - |
| Name: | Video Processor L-1 |
| Certification: | - |
| Channel: | - |
| Model Number: | L-1 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

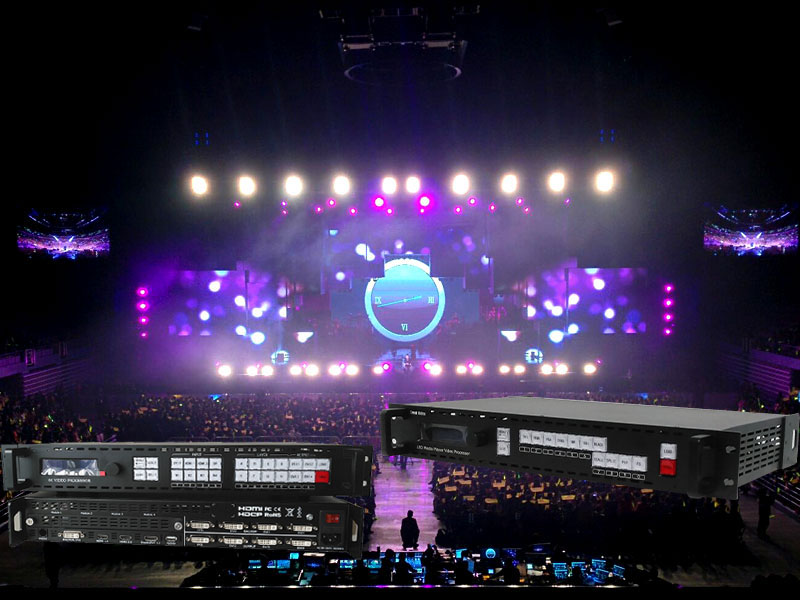

Video Processor L1 Professional Seamless Scaler and Switcher L-ONE
Features:
1.Include a PIP from any input source with any size and position
2.Free customized output among 2.5 million. Widest being 3840, Highest Being 1920.
3.Cozy numeric button, easy to set parameters for image.
4.Support EDID management, customize format of laptop, realize pixel-pixel effects.
Seamless Scaler and Switcher
*Seamless switching between any source
*Free customized among 2.5 million
*PIP from any source in any position & size
*Support EDID Management
*Cascade Split
*Open Protocol Control
*Two Sender Card Built-in
*Input Hot backup
Inputs |
Standard 1DVI, 1HDMI, 1VGA, 1CVBS; Optional 1 x SDI |
Outputs |
Standard 2DVI 1VGA |
Operation |
RS232 Open Protocol Control |
Input format |
DVI VESA: 800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200 | 2048x1152; HDMI SMPTE: 480i | 576i | 720p | 1080i | 1080p | VESA: 800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x10801920x1200 | 2048x1152 |; VGA: 800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200; CVBS SMPTE: 480i | 576i; YPbPr SMPTE: 480i | 576i | 480P | 576P | 720p | 1080i | 1080p; SDI: 480i | 576i |720p | 1080i | 1080p | 1080psf |
Output format |
SMPTE: 720p | 1080p; VESA: 1024x768 | 1280x720 |1280x1024 | 1400x1050 | 1600x1200 | 1920x1080 |1920x1200 | 2048x1152| 2560x816 1024x1280 | 1152x1152 |1280x1280 |1536x1536 | 2560x1024 | 2560x1600 | 3840x540 |
Standard Support |
SDI: SD-SDI,HD-SDI,3G-SDI VGA: VGA-UXGA HDMI: 1.3 DVI: Single Link, Dual Link |
Input Power |
AC 100~264V(Typical 110/220); 50/60Hz |
Max Power |
20W |
Temperature |
-25~55(Typical 25) |
Humidity |
20%~90% |
Device Weight |
2.0kg(Device); 3.0kg(Packed) |
Dimensions |
480mm x 265mm x 44mm(Device); 540mm x 365mm x 135mm (Packed) |
