| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | No |
| Brand Name: | YF |
| Condition: | New |
| Weight: | 60t |
| Power(W): | 45kw |
| Voltage: | AC 380V 3p |
| Place of Origin: | China (Mainland) |
| water cooling: | automatic |
| billet cut: | diagonal cutter |
| control: | PLC |
Quick Details
Specifications

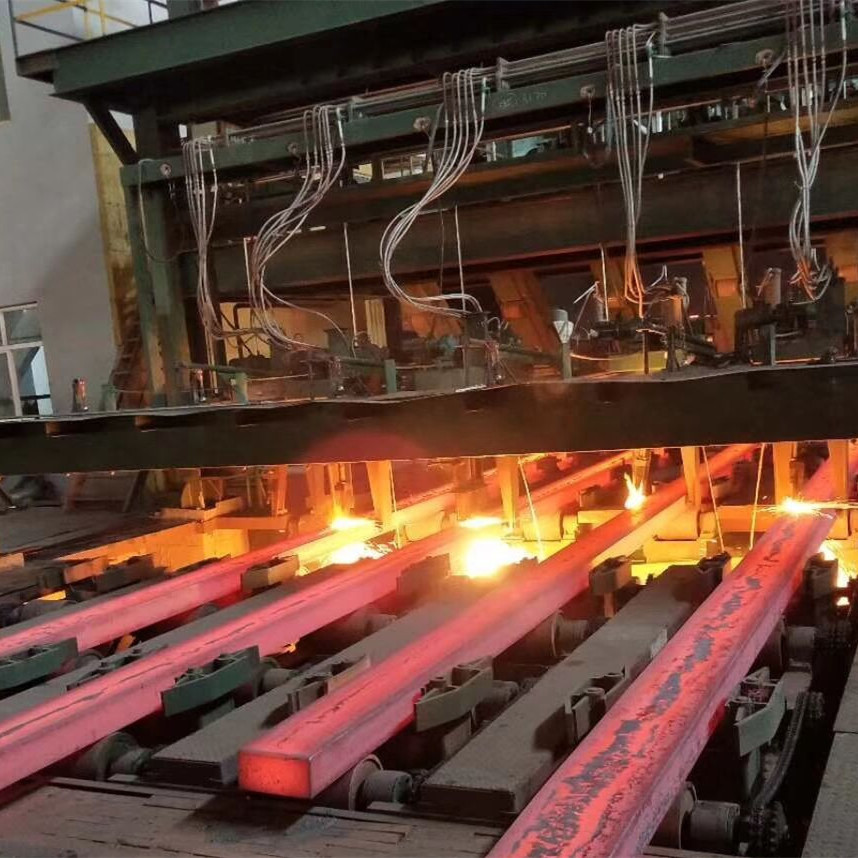

R5.25 three strands PLC control billet caster
Billet caster is in complete set of equipment to casting high temperature molten steel into Steel billet, which has certain cross section and length, based on different Cross sections, there are 2 main typs of casting machine.
Model
Continuous Casting machine/CCM
Horizontal Casting machine
Billet size:
Square billet Size from 60x60mm to 200mmx200mm
Slab size from 150X225mm to 165x330mm
Round billet Diameter from dia100-300mm.
All types of Casting machine have following components: steel ladles support equipment, main Equipment, roller table and billet cutting machine and cooling bed.
the billet caster equiped with scrap steel IF
Induction electric melting furnace or arc furnace, steel billet monthly output
about 2000t-15000t, configured with different models of rolling stands,
Processing to finished steel products, angle steel, deformed bar, steel bar,
Channel steel etc.
Continuous Casting machine/CCM specification
Item |
R2.5M |
R4M |
R5.25M |
R6M |
Mode |
Continuous Regulation full arc | |||
Arc Radius (m) |
2.5 |
4 |
5.25 |
6 |
Strand Number |
1 |
1 |
1, 2 |
2,3,4 |
Annual Productivity(T/Y) |
20000-40000 |
30000-50000 |
80000-120000 |
150000-200000 |
Cast Section (mm2) |
60x60 70x70 |
80x80 100x100 |
100x100 120x120 |
120x120 150x150 |
Cast Length (m) |
3-6 |
3-6 |
3-8 |
3-9 |
Cast Speed(m/min) |
1.2 |
1.8 |
2-3 |
2.5 |
Max Speed(m/min) |
2 |
2.5 |
3-4 |
4 |
Casting Productivity of single strand (t/h) |
4-8 |
8-12 |
10-14 |
15-20 |
Ingot Leading pole |
Rigidity leading Pole | |||
Machine Height(m) |
5 |
7 |
8 |
8 |
Floor Space(m2) |
4x20 |
5x20 |
8x25 |
10x35 |
Rated Power(kW) |
50 |
107 |
200 |
250 |
Power Consumption(kWh/t) |
5 |
5 |
10-15 |
15 |
