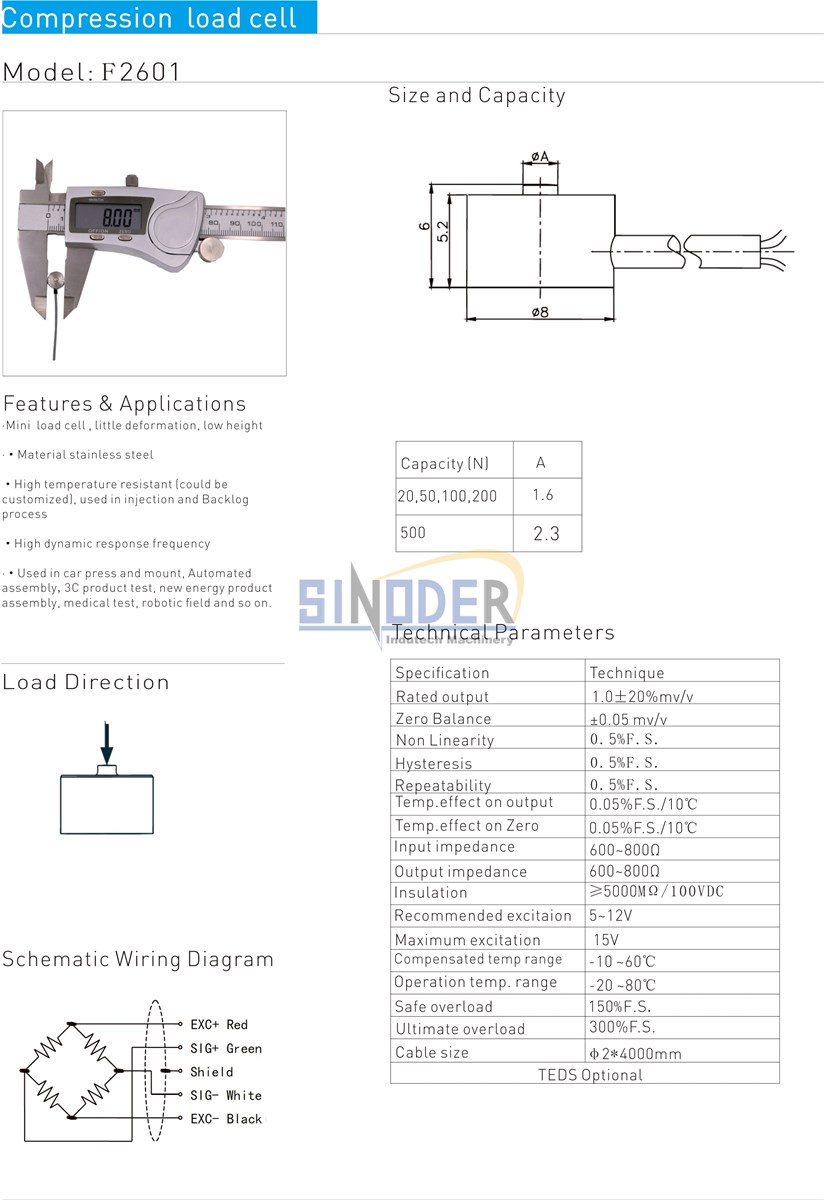

Factory supply diameter 8mm mini load cell

Mini load cell, little deformation, low height
Material stainless steel
High temperature resistant (could be
Customized), used in injection and Backlog
Process
High dynamic response frequency
Used in car press and mount, Automated
Assembly, 3C product test, new energy product
Assembly, medical test, robotic field and so on.

Technical parameters
Specifications	Technique
Capacity	20,50,100,200, 500N
Rated output	1.020%mV/V
Zero balance	0.05mV/V
Non-linearity	0.5%F.S.
Hysteresis	0.5%F.S.
Repeatability	0.5%F.S.
Temp.Effect on output	0.05%F.S./10
Temp.Effect on zero	0.05%F.S./10
Input Impedance	600~800
Output Impedance	600~800
Insulation	5000M/100VDC
Recommended Excitation	5~12V
Maximum Excitation	15V
Compensated Temp range	-10~60
Operation Temp range	-20~80
Safe overload	150%F.S.
Ultimate Overload	300%F.S.
Cable size	24000mm
TEDS Optional
