| Output: | Analog Sensor |
|---|---|
| Theory: | Resistance Sensor |
| Usage: | Consumption Sensor |
| Brand Name: | Sinoder |
| material: | stainless steel |
| Model Number: | F2612 |
| Place of Origin: | China (Mainland) |
| product name: | compression load cell |
| material: | stainless steel |
| capacity: | 0.5kn to 20kn |
| Certificate: | CE |
| warranty: | 12 months |
| output: | mv signal |
| install: | easy to install |
| Sinoder: | load cell solution provider |
| OEM ODM service: | offered |
| customized load cell service: | offered |
Quick Details
Specifications

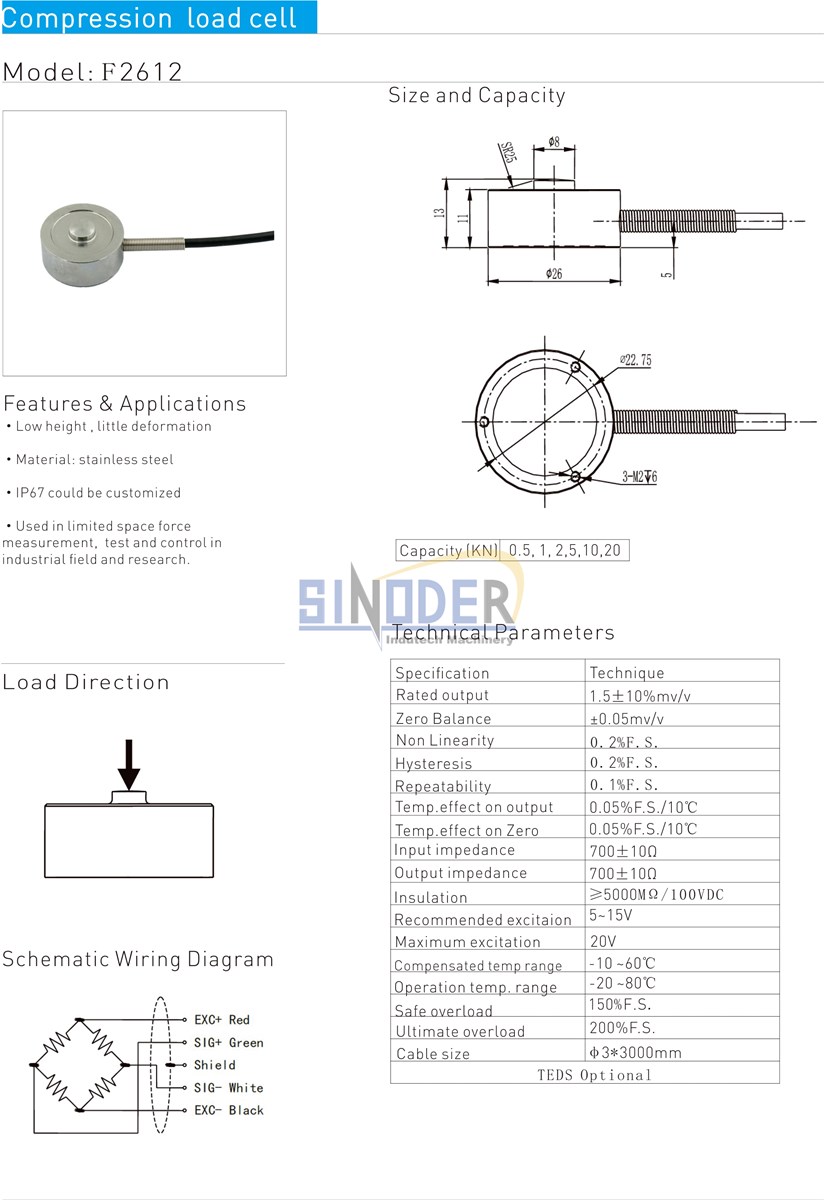

Load cell factory 20kn compression load cell sensor
Low height, little deformation
Material: stainless steel
IP67 could be customized
Used in limited space force
Measurement, test and control
Low height, little deformation
Material: stainless steel
IP67 could be customized
Used in limited space force
Measurement, test and control
| Technical parameters | |
| Specifications | Technique |
| Capacity | 0.5,1,2,5,10,20KN |
| Rated output | 1.510%mV/V |
| Zero balance | 0.05mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.Effect on output | 0.05%F.S./10 |
| Temp.Effect on zero | 0.05%F.S./10 |
| Input Impedance | 70010 |
| Output Impedance | 70010 |
| Insulation | 5000M/100VDC |
| Recommended Excitation | 5~15V |
| Maximum Excitation | 20V |
| Compensated Temp range | -10~60 |
| Operation Temp range | -20~80 |
| Safe overload | 150%F.S. |
| Ultimate Overload | 200%F.S. |
| Cable size | 33000mm |
| TEDS Optional | |
