| Output: | Analog Sensor |
|---|---|
| Theory: | Resistance Sensor |
| Usage: | Consumption Sensor |
| Brand Name: | Sinoder |
| material: | stainless steel |
| Model Number: | F2617 |
| Place of Origin: | China (Mainland) |
| product name: | compression load cell |
| material: | stainless steel |
| capacity: | 1kn to 20kn |
| Certificate: | CE |
| warranty: | 12 months |
| output: | mv signal |
| install: | easy to install |
| Sinoder: | load cell solution provider |
| OEM ODM service: | offered |
| customized load cell service: | offered |
Quick Details
Specifications

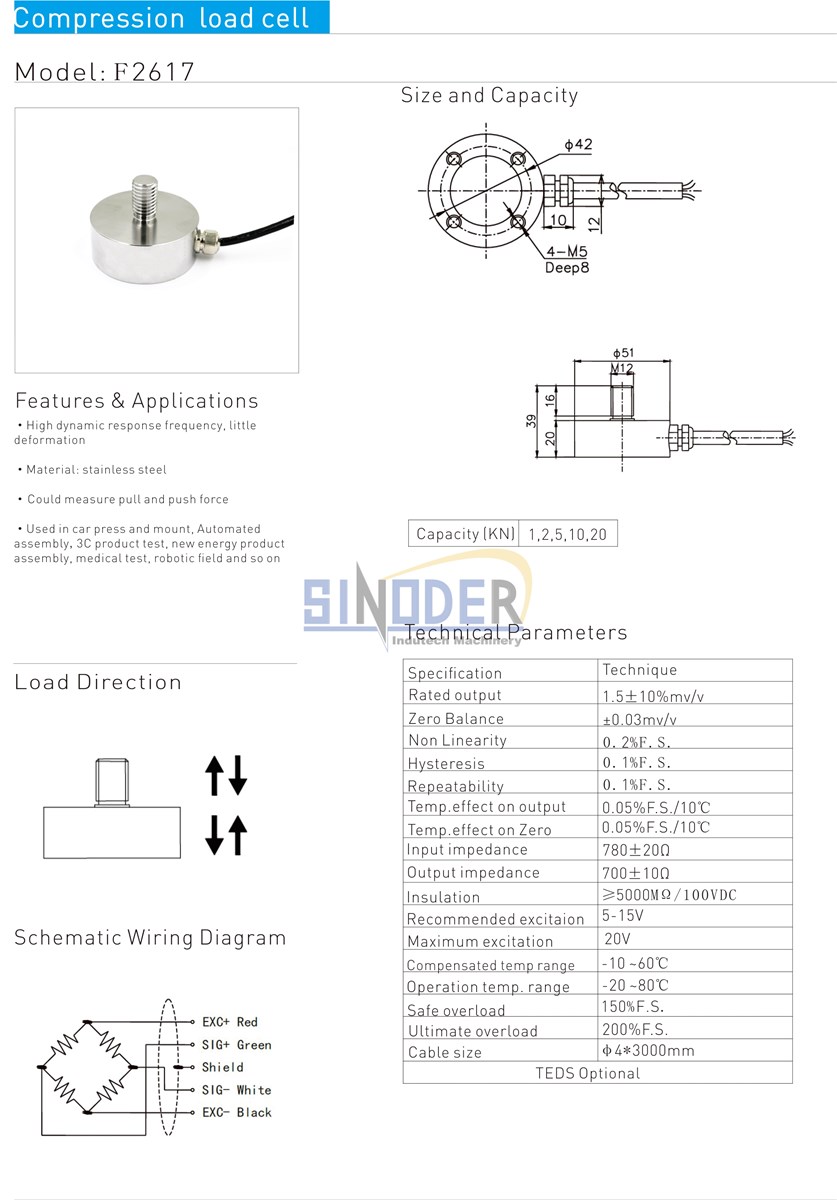

Load cell factory 1 to 20kn compression load cell sensor
High dynamic response frequency, little
Deformation
Material: stainless steel
Could measure pull and push force
Used in car press and mount, Automated
Assembly, 3C product test, new energy product
Assembly, medical test, robotic field and so on
High dynamic response frequency, little
Deformation
Material: stainless steel
Could measure pull and push force
Used in car press and mount, Automated
Assembly, 3C product test, new energy product
Assembly, medical test, robotic field and so on
| Technical parameters | |
| Specifications | Technique |
| Capacity | 1,2,5,10,20KN |
| Rated output | 1.510%mV/V |
| Zero balance | 0.03mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.Effect on output | 0.05%F.S./10 |
| Temp.Effect on zero | 0.05%F.S./10 |
| Input Impedance | 78020 |
| Output Impedance | 70010 |
| Insulation | 5000M/100VDC |
| Recommended Excitation | 5~15V |
| Maximum Excitation | 20V |
| Compensated Temp range | -10~60 |
| Operation Temp range | -20~80 |
| Safe overload | 150%F.S. |
| Ultimate Overload | 200%F.S. |
| Cable size | 43000mm |
| TEDS Optional | |
