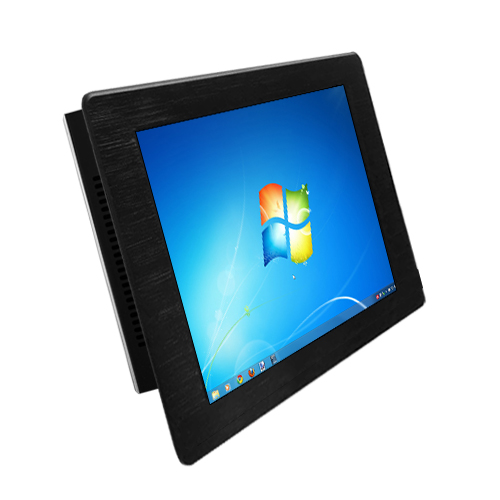

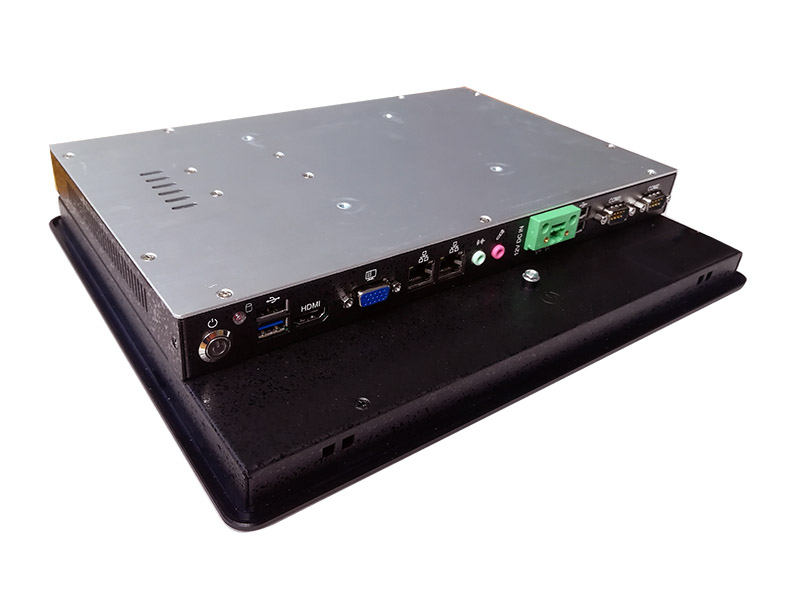

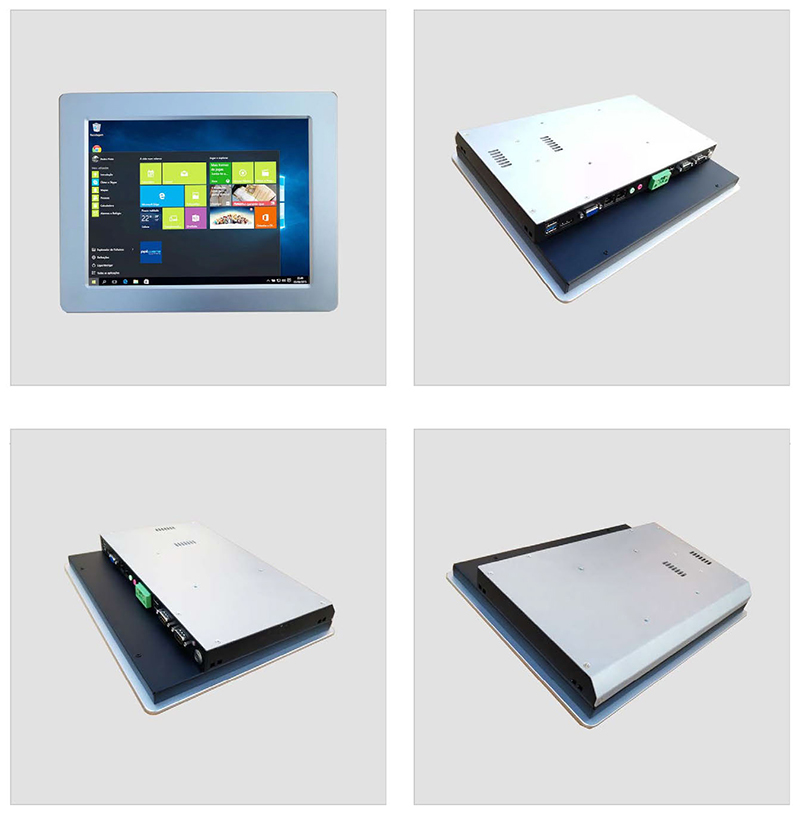

12.1 inches industrial all-in-one panel PC, with Intel J1900 Processor, 2G RAM, 32GSSD, 2*COM, 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x AUDIO, MIC, Resistive Touch Screen.

Anxin intelligent provides 8~19 inch all in one insutrial panel PC IPC-12-DF.

Industrial panel PC System

Processor    Intel Celeron J1900
Chipset    Intel Bay trail SOC
Memory    DDR3 2G RAM (Max 8G)
Storage    SSD 32G(HDD optional)
Ethernet    2 x 100/1000 LAN ports
Video    1 x VGA, 1x HDMI
Audio    1x Mic-in / Line-out
USB Port    3 x USB 2.0, 1x USB3.0
Serial Port    2 x RS-232
Power switch    1 x power switch
Expansive Slot    1 x Mini PCIe
Power supply    DC12V input (Optional 9-36V), 100~240V AC, 50/60Hz, external AC adapter
Construction    Front aluminum bezel(6 mm) and steel chassis
LCD display
Display Type    12.1 XGA TFT LCD
Resolution    1024 x 768
Max.Color    16.2M
Luminance    400 CD/m2
View Angle    150(H), 135(V)
Pixel Pitch    0.297 x 0.297 mm
Contrast Ratio    300:1
Response Time    8 ms
LCD MTBF    50, 000hrs
Available Options
Touchscreen    Resistive type touch screen
Wireless LAN    Meet IEEE802.11b/g standard(WiFi)
DC Power Input    Wide Range 9~36v DC input
Environmental
Operate temperature    32 F~113 F (0 C to 50C)
Storage temperature    -4 F~140 F (-20 C to 60 C)
Storage humidity    10% to 90% non-condensing
Anti-Vibration    17HZ-500 HZ 1G PTP
Anti-Shock    1G / peak( 11m sec)
Power supply
Input    100~240VAC, 50/60Hz, external ac adapter with lockable connector
Output    DC12V, output 32W
Packing info
Dimensions (WxHxD)    315 x 250 x 47mm
Weight    Net: 4.6kg, Gross:6.8 kg
Ordering informations
IPC-12JN    12.1 inches industrial all-in-one panel PC, with Intel J1900 Processor, 2G RAM, 32GSSD, 2*COM, 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x AUDIO, MIC, Resistive Touch Screen
