After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Automation: | Automatic |
Power: | Hydraulic |
Brand Name: | Zhuzhou Hanhe |
Condition: | New |
Certification: | ISO 9001:2000 |
Extra Services: | Heat Treating |
Material / Metal Processed: | Stainless Steel |
Raw Material: | Pipe |
Machine Type: | Pipe and Tube Bending Machine |
Model Number: | WGY-426 |
Place of Origin: | China (Mainland) |
Product Name: | Hydraulic pipe bending machine |
Max. pipe length: | 12m |
Bending diameter: | 108-426mm |
Bending radius: | 2-6D |
Bending angle: | 0-180degree |
Pipe wall thickness: | 5-80mm |
Principle: | Induction heating & bending |
Rated power: | 350KW |
Cooling water flow: | 30t/h |
Cooling water pressure: | 0.3MPa |
Quick Details
Specifications
1. Product Desciption

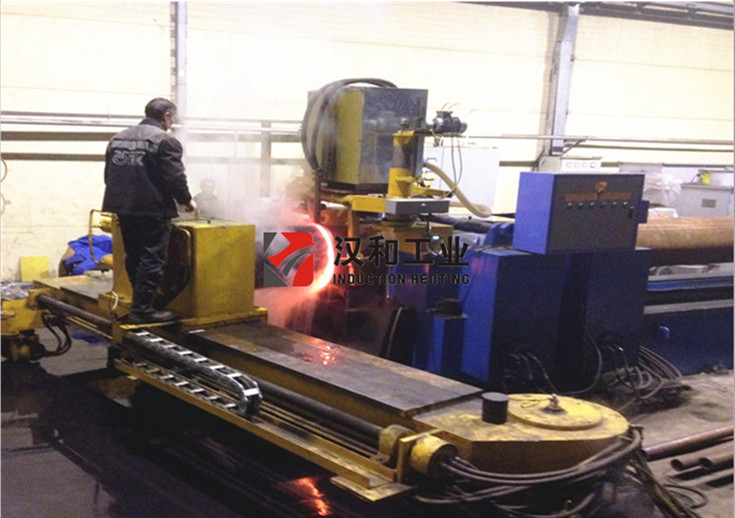

this equipment can be used in nuclear construction pipeline for induction heating bending of stainless steel pipes, carbon steel pipes and alloy steel pipes. the principle is as follows: the two ends of the steel pipe are fixed, and the bending radius is set at one end, the other end keeps bending at constant speed. The steel pipe is partially heated by electron magnetic induction coil. and it is cooled by suitable cooling medium for constant cooling and forming to set angle. this equipment uses a static frequency conversion device of AC-DC-AC for heating. It can turn 50Hz three phase power frequency into single phase high frequency electrical power. this equipment takes advantages of electromagnetic induction principle which under the condition of vacuum and protective gas, the work piece is in alternating magnetic field which can generate eddy-current loss to heat, and meet the heating requirement for melting, diathermanous, quenching and bending etc. this kind of heating method has features of fast heating, less burning loss, low labor intensity and qualified products. this product can mechanically achieve 1D bending radius mechanical clamp.
2. Equipment composition
Power supply & capacitor integral cabinet
Quenching transformer
Supporting connecting water cooled cable
Induction heating coil
Water sprayer ring & air ring
CNC mechanical pipe pusher
Bending arm
Working platform, railings
CNC operation desk
CNC electrical cabinet
Two color infrared pyrometer
Supporting clamp
Closed cooling water tower
Spare parts
3. Technical Parameters
Power supply model: MFSC-500
Heating power: 500KW
Lathe power: 21KW
Total power: 521KW
Bending diameter: 159-630mm
Bending radius: 2D-6D
Pipe wall thickness: 5-80mm
Cooling water flow: 20t/h
Rated heating temperature: 1150centigrade
this equipment can be used in nuclear construction pipeline for induction heating bending of stainless steel pipes, carbon steel pipes and alloy steel pipes. the principle is as follows: the two ends of the steel pipe are fixed, and the bending radius is set at one end, the other end keeps bending at constant speed. The steel pipe is partially heated by electron magnetic induction coil. and it is cooled by suitable cooling medium for constant cooling and forming to set angle. this equipment uses a static frequency conversion device of AC-DC-AC for heating. It can turn 50Hz three phase power frequency into single phase high frequency electrical power. this equipment takes advantages of electromagnetic induction principle which under the condition of vacuum and protective gas, the work piece is in alternating magnetic field which can generate eddy-current loss to heat, and meet the heating requirement for melting, diathermanous, quenching and bending etc. this kind of heating method has features of fast heating, less burning loss, low labor intensity and qualified products. this product can mechanically achieve 1D bending radius mechanical clamp.
2. Equipment composition
Power supply & capacitor integral cabinet
Quenching transformer
Supporting connecting water cooled cable
Induction heating coil
Water sprayer ring & air ring
CNC mechanical pipe pusher
Bending arm
Working platform, railings
CNC operation desk
CNC electrical cabinet
Two color infrared pyrometer
Supporting clamp
Closed cooling water tower
Spare parts
3. Technical Parameters
Power supply model: MFSC-500
Heating power: 500KW
Lathe power: 21KW
Total power: 521KW
Bending diameter: 159-630mm
Bending radius: 2D-6D
Pipe wall thickness: 5-80mm
Cooling water flow: 20t/h
Rated heating temperature: 1150centigrade
